Section 05 ENGINE MANAGEMENT (DI)
Subsection 03 (COMPONENT INSPECTION AND ADJUSTMENT)

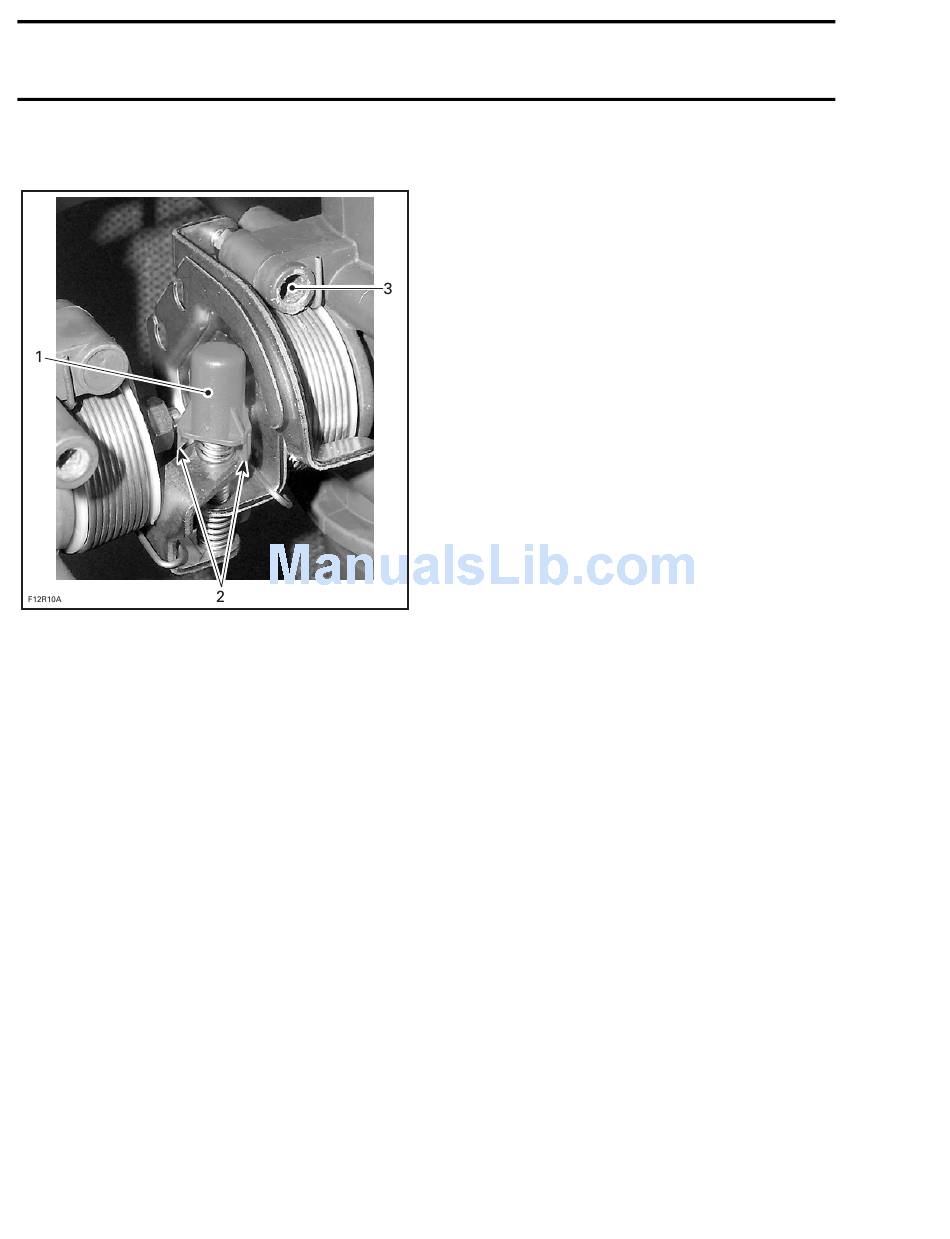

Apply Loctite Ultra Grey
on idle set screw head.
1. Plastic cap
2. Wider spaced tabs here
3. Loctite Ultra Grey ® Silicone Gasket Maker
05-03-6
® Silicone Gasket Maker Throttle Cable Adjustment
Mecanically adjust the throttle cable using the ad-
justing device underneath body, below steering.
Free-play on lever should be between 2 and 3.5 mm
(1/16 and 1/8 in).
NOTE: On GTX DI models, vent tube removal in
front storage compartment may be necessary to
reach the adjusting device.
CAUTION: Improper cable adjustment will cause
strain on cable and/or damage cable bracket or
throttle lever at handlebar.
Use the vehicle communication kit (VCK) with the
B.U.D.S. software to perform this adjustment.
Choose the Monitoring tab.
Press throttle lever to reach full throttle.
Turn cable adjustment until Throttle Opening
meter indicates between 95% and 99%.
Closed TPS Adjustment
Perform the Closed TPS adjustment as de-
scribed in Throttle Position Sensor (TPS) in Elec-
tronic Management below.
Injection Oil Pump Cable Adjustment
As oil injection cable is throttle dependent, always
proceed with the oil injection pump cable adjust-
ment after throttle cable adjustment. Refer to OIL
INJECTION PUMP.
CAUTION: Improper oil injection pump syn-
chronization with throttle bodies can cause se-
rious engine damage.
