Section 09 ELECTRICAL SYSTEM
Subsection 04 (STARTING SYSTEM)
Remove brushes.

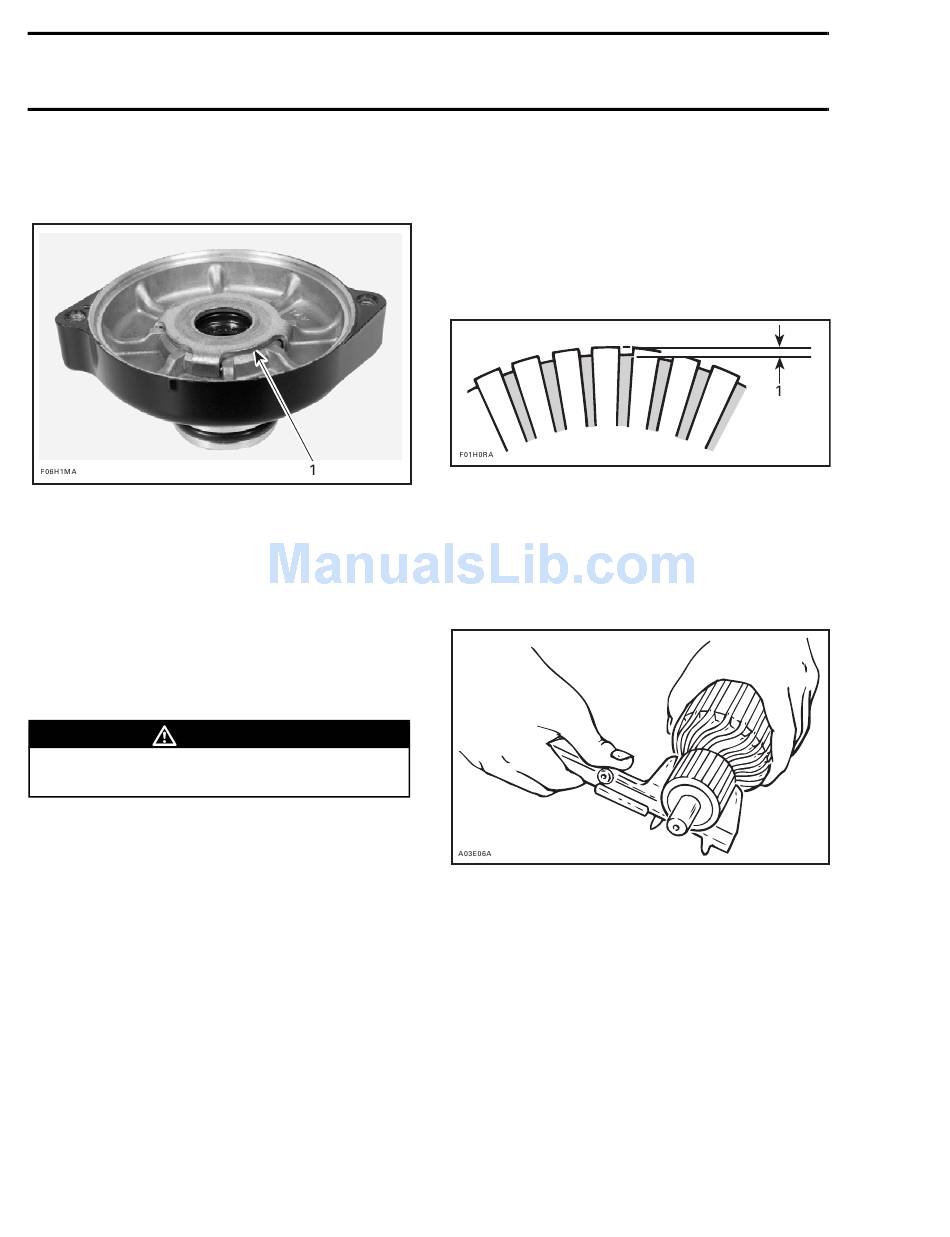

To remove bearing and seal in end cover, release
tabs of retainer.
1. Retainer

CLEANING

CAUTION: Yoke assembly and drive unit assem-
bly must not be immersed in cleaning solvent.
Discard all O-rings.
Clean brushes and holders with a clean cloth
soaked in solvent. Brushes must be dried thor-
oughly with a clean cloth.
Blow brush holders clean using compressed air.
WARNING
Always wear safety glasses when using com-
pressed air.
Remove dirt, oil or grease from commutator using
a clean cloth soaked in suitable solvent. Dry well
using a clean, dry cloth.
Clean engine ring gear teeth and drive unit (clutch).
NOTE: Bushings or bearings must not be cleaned
with grease dissolving agents.
Immerse all metal components in cleaning solu-
tion. Dry using a clean, dry cloth.

PARTS INSPECTION

Armature
NOTE: An ohmmeter may be used for the follow-
ing testing procedures, except for the one con-
cerning shorted windings in armature.
09-04-6
Check commutator for roughness, burnt or scored
surface. If necessary, turn commutator on a lathe,
enough to resurface only.
Check commutator for mica depth. If depth is less
than 0.20 mm (.008 in), undercut mica. Be sure
that no burrs are left and no copper dust remains
between segments after undercutting operation
is completed.
1. Commutator undercut 0.20 mm (.008 in)
Check commutator out of round condition with V-
shaped blocks and an indicator. If commutator out
of round is more than 0.40 mm (.016 in), commu-
tator should be turned on a lathe.
Check commutator outer diameter. If less than
27 mm (1.063 in), replace.
Brush Holder
Check brush holder for insulation using an ohm-
meter. Place one test probe on insulated brush
holder and the other test probe on brush holder
plate. If continuity is found, brush holder has to be
repaired or replaced.
