INSTRUMENTS AND ACCESSORIES

GENERAL

It is possible to activate the instruments when the
engine is not running.
Make sure the safety lanyard is removed, then de-
press the start/stop button.
The timer of the MPEM will maintain the gauge(s)
activated during a period of approximately 33 sec-
onds.

INSPECTION

GTX DI
Air Temperature Sensor

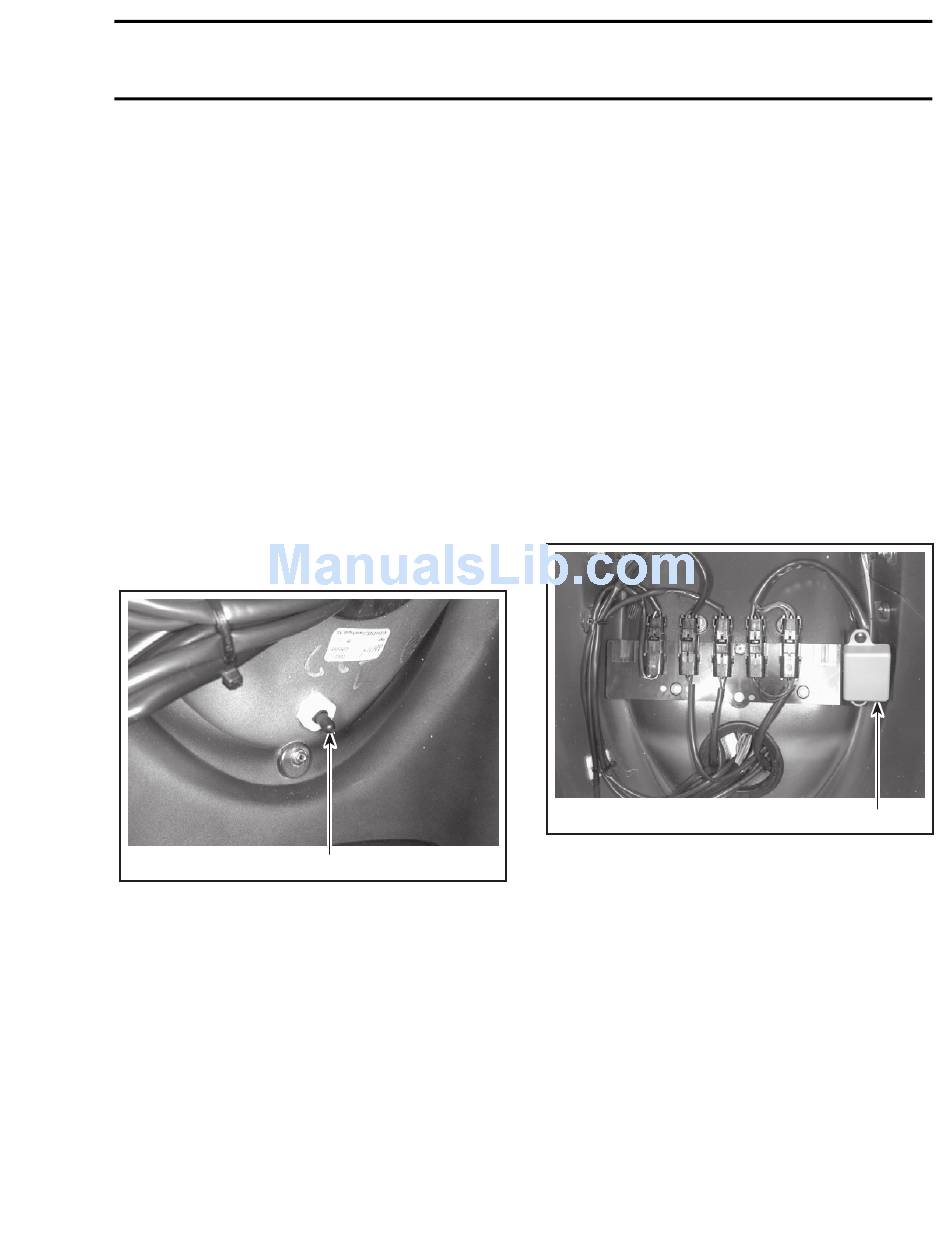

The temperature sensor is located in the storage
cover.
Remove the back panel of the storage cover to
access the temperature sensor.
F07H01A
1. Temperature sensor
To check if the temperature sensor is operational,
activate the Information Center and select the ex-
terior temperature mode.
Use a heat gun to warm up the sensor. The tem-
perature should raise rapidly on the gauge.
If not, replace the temperature sensor.
SMR2000-063_09_05A.FM
Subsection 05 (INSTRUMENTS AND ACCESSORIES)
1
www.SeaDooManuals.net
Section 09 ELECTRICAL SYSTEM
Water Temperature Sensor (L TEMP)
The water temperature sensor is integrated with
the speed sensor located on the ride plate.
To check if the water temperature sensor is oper-
ational, activate the Information Center and select
the lake temperature mode.
With a garden hose, spray the speed sensor with
water. The temperature reading on the Information
Center should adjust to the water temperature.
If not, replace the speed sensor.
Compass
The compass is located in the storage cover.
Remove the back panel of the storage cover to
access the compass.
F07H02A
1. Compass
Remove the compass from the support.
Activate the Information Center.
Change the direction of the compass and keep it
horizontal (± 10°). There should be a change of
direction on the Information Center.
NOTE: To check the accuracy of the compass, you
can use a portable compass and point it in the
same direction. Compare the given directions,
they should be the same.
