Configuring The Echo Canceller; Configuring Output Gain - Patton electronics SmartNode Series Software Configuration Manual

SmartWare Software Configuration Guide
Procedure: Create a PSTN Profile and enter the PSTN profile configuration mode
Mode: Configure
Step Command
1 node (cfg)#profile pstn name Create a PSTN profile with name name and enter PSTN profile
2 node (pf-pstn)[ name ]#...
Configuring the echo canceller
Echoes are reflections of the transmitted signal that result from impedance mismatches in the hybrid (bi-direc-
tional 2-wire to 4-wire conversion) device, causing an echo on the wire. Echo cancellation provides near-end
echo compensation for this effect as shown in
Procedure: Disable echo cancellation.
Mode: Profile PSTN
Step
node (pf-pstn)[ name ]#no echo-canceller
1
Configuring output gain
The output gain determines the voice output volume gain towards PSTN ports as shown in
Procedure: Configure voice output gain.
PSTN profile configuration task list
configuration mode. The newly created profile contains default
values for all parameters.
If a profile with name name already exists, only the PSTN profile
configuration mode is entered.
Configuration steps as described in the chapters below
figure

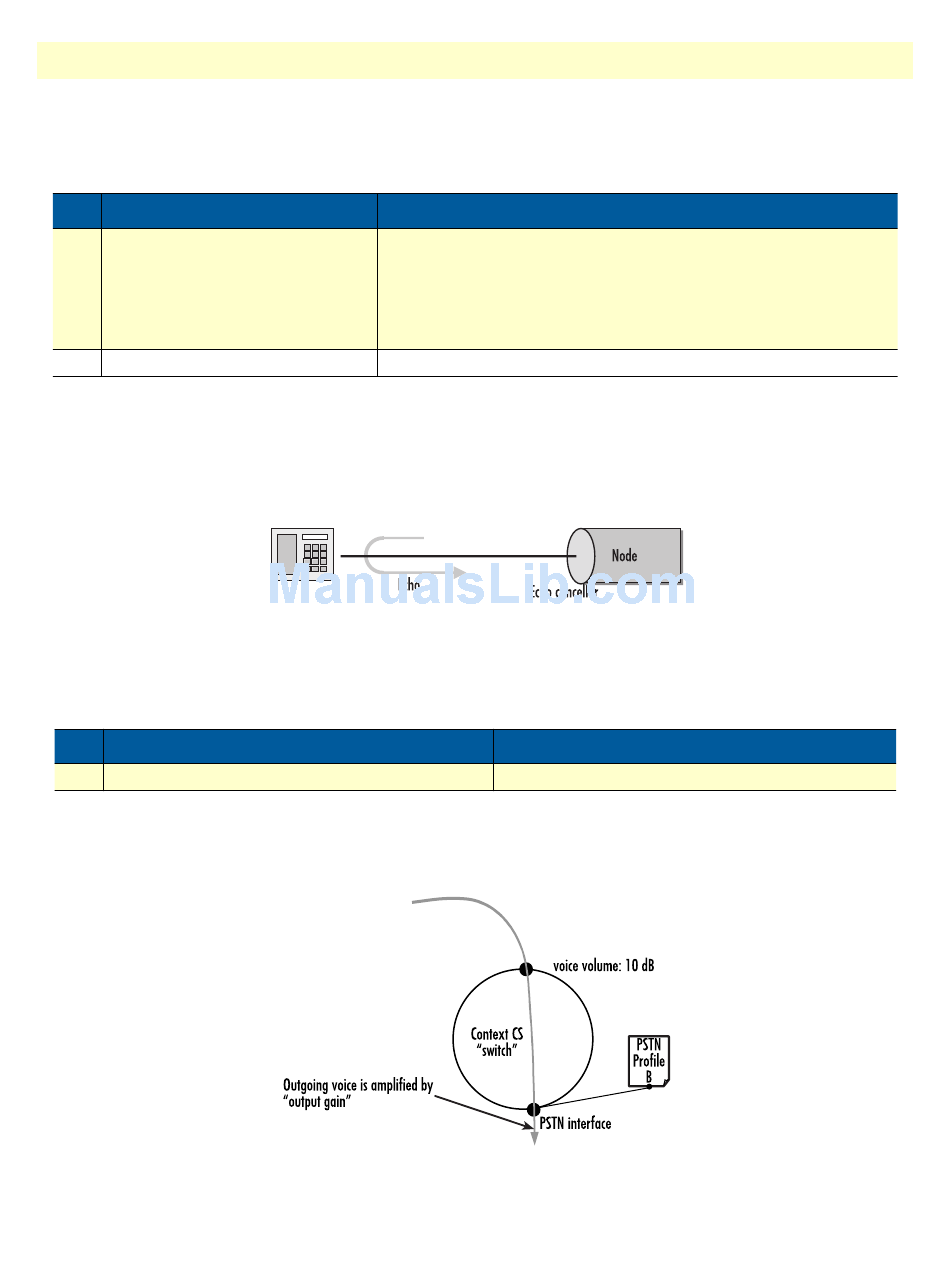

Figure 87. Echo Cancellation
Command
Figure 88. Applying output gain
41 • PSTN profile configuration
Purpose
87.
Disable echo canceller (Default: Enabled)
Purpose
figure 88.
