26 • CS context overview
02:14:30 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
02:14:33 CR
SN(ctx-cs)[switch]#
Example: Configure SmartNode in an Enterprise Network

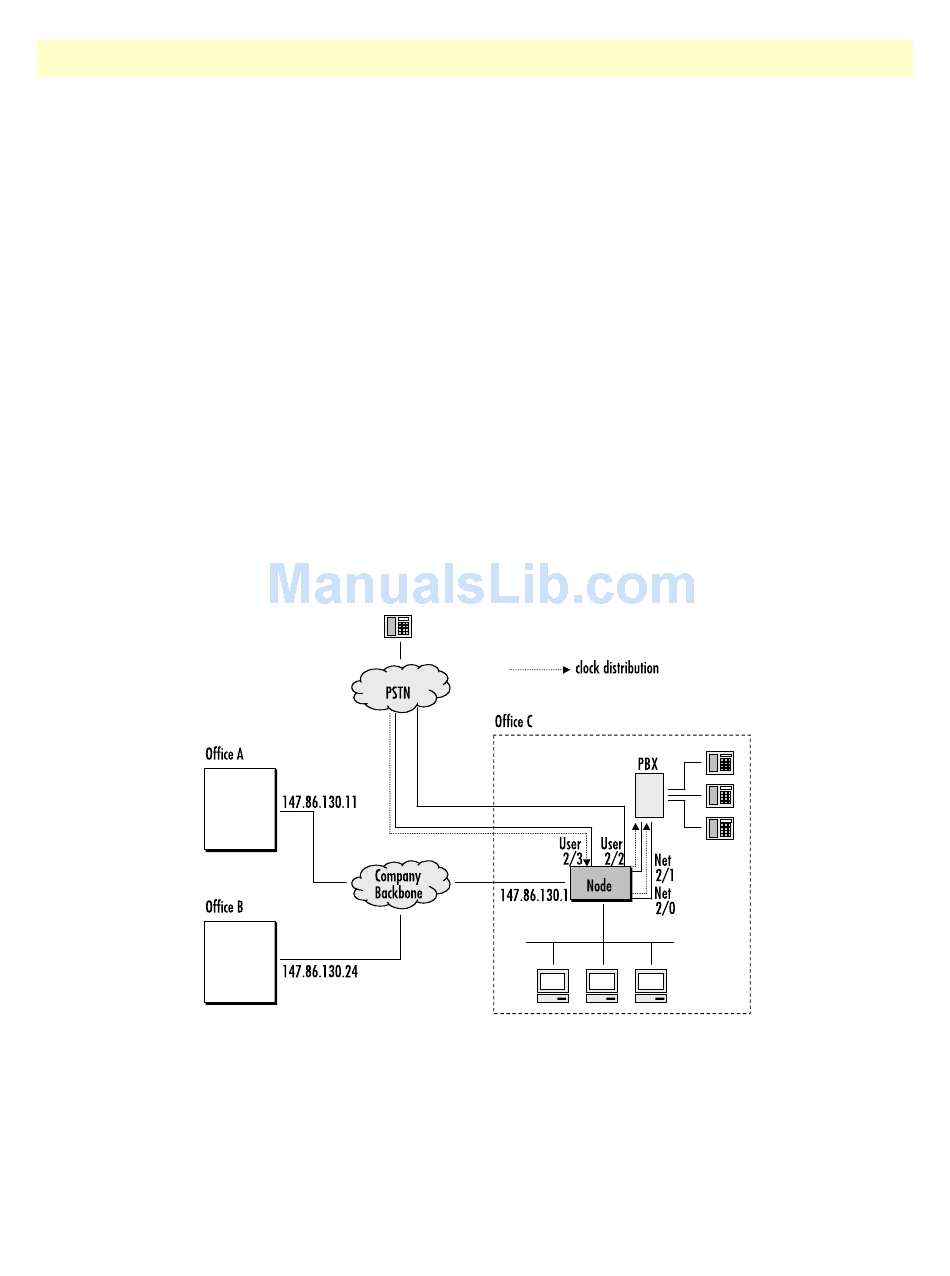

Situation: Figure 52 shows an enterprise network with a SmartNode 2300 configured with a BRI interface
card in slot 2. A PBX, a LAN, the PSTN, and the company network are connected. The VoIP protocol used is
H.323. There is no gatekeeper, so direct call signaling is used. The voice codec used is G.723, so the DTMF
relay is enabled. Because no special dial tones have to be specified, the default tone-set profile is used.
Call routing is specified as follows:
• Calls from office C with number 1xx to office A with a fallback to PSTN
• Calls from office C with number 2xx to office B with a fallback to PSTN
• All other calls from office C to PSTN
304
> Updating tables in 3 seconds...
> [switch] Reloading tables now
> [switch] Flushing all tables
> [switch] Loading table 'TAB-ISDN-SERVICE'
> [switch] Loading table 'TAB-DEST-A'
> [switch] Loading table 'CAC-APPLE'
> [switch] Loading table 'CAC-ORANGE'
> [switch] Loading table 'CLI-MELON'
> [switch] Loading table 'MAP-CAC-APPLE'
> [switch] Loading table 'MAP-CAC-ORANGE'
> [switch] Loading table 'MAP-CLI-MELON'
> [switch] Loading table 'IF-LOCAL-BA-precall-service'
> [switch] Loading table 'IF-PBX-A-precall-service'
> [switch] Loading table 'IF-NODE-B-precall-service'
> [switch] Loading table 'IF-NODE-C-precall-service'
Figure 52. SmartNode in an Enterprise network
SmartWare Software Configuration Guide
Activating CS context configuration
