SmartWare Software Configuration Guide

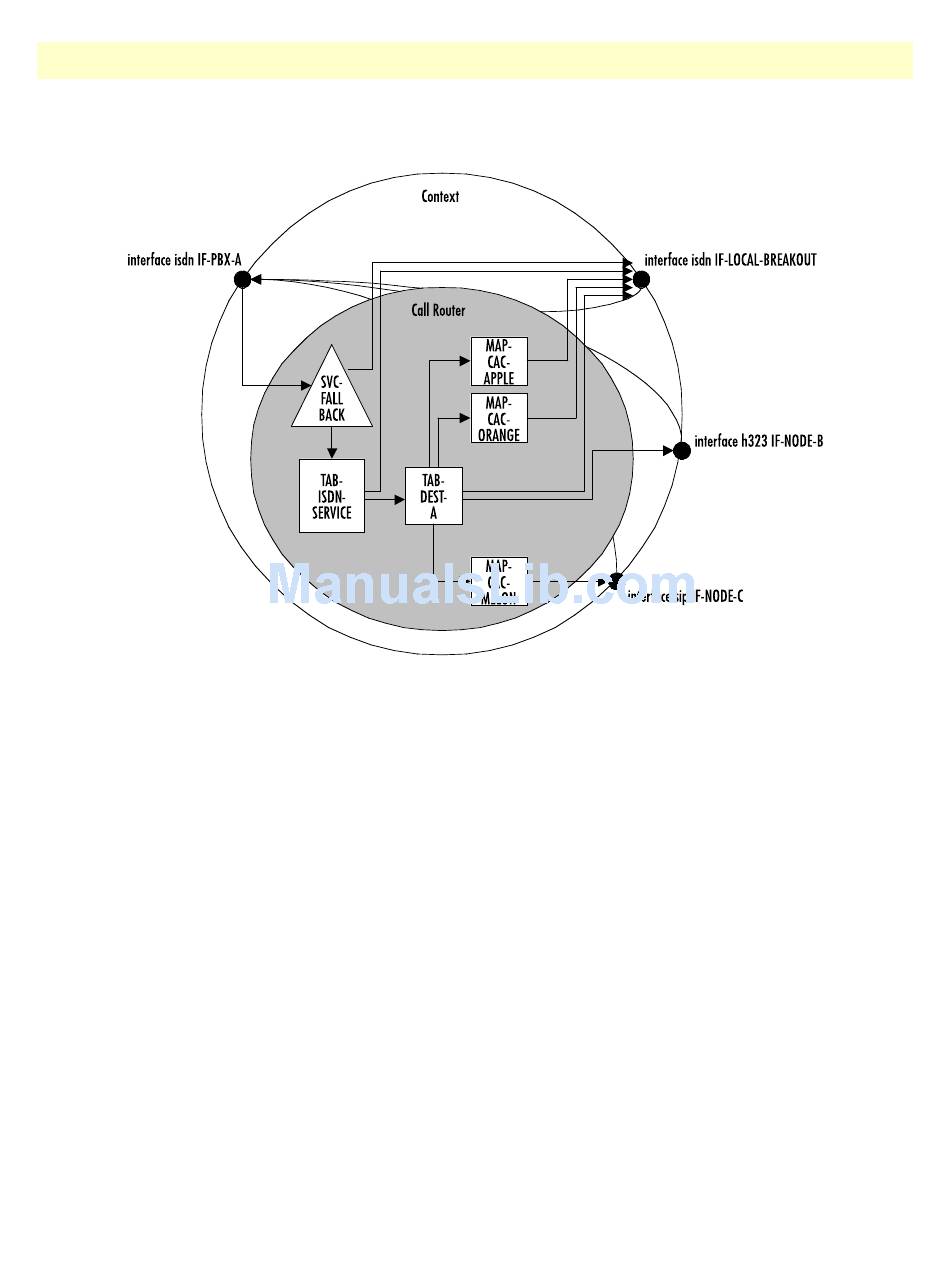

Figure 70 shows the corresponding CS Context and call router elements in node A:
We assume that the CS interfaces have already been created and configured. So we can start directly with the
call router elements.
Since the command sequence is quite long it is useful to create the configuration offline and download it using
TFTP.
Note
In the following lines the prompt is omitted as in a configuration file and for
better readability.
#-------------------------------------------------------------
# Call Router Config File
#-------------------------------------------------------------
context cs switch
#
# Hunt-group service "SVC-FALLBACK" to catch VoIP network errors
#
service hunt-group SVC-FALLBACK
no cyclic
timeout 6
route call 1 dest-table ISDN-SERVICE
route call 2 dest-interface LOCAL-BREAKOUT
Call router configuration task list
Figure 70. CS context and call router elements
