SmartWare Software Configuration Guide
Type help to display a list of the available commands in the Diagnostic domain (see
The command ping allows you to verify the IP connectivity within a network.
You can test the various sectors of the SmartNode flash memory with the command flashtest.
Use the command eraseefs to delete the contents of the EFS.

Bootloader (for SmartNode 4110/4520 Series)

The SmartNode 4110/4520 Series comes with a new Bootloader, the RedBoot Bootloader. It offers new features
such as console access to the Bootloader and the capability for downloading application images (e.g. Smart-
Ware) via the serial link of the console.

Start Bootloader

To start the Bootloader, reload the system and press Ctrl-C (when the message Press ^C to abort boot script, ...
appears on the console screen). The follow prompt will be displayed:
RedBoot>
Type help to display an overview of the available commands.
Note
If the cursor keys (up, down, left, right) are not working, use Ctrl-N (for up)
and Ctrl-P (for down) instead. Commands can be abbreviated as long as
they do not become ambiguous.

Bootloader (for SmartNode 4110/4520 Series)

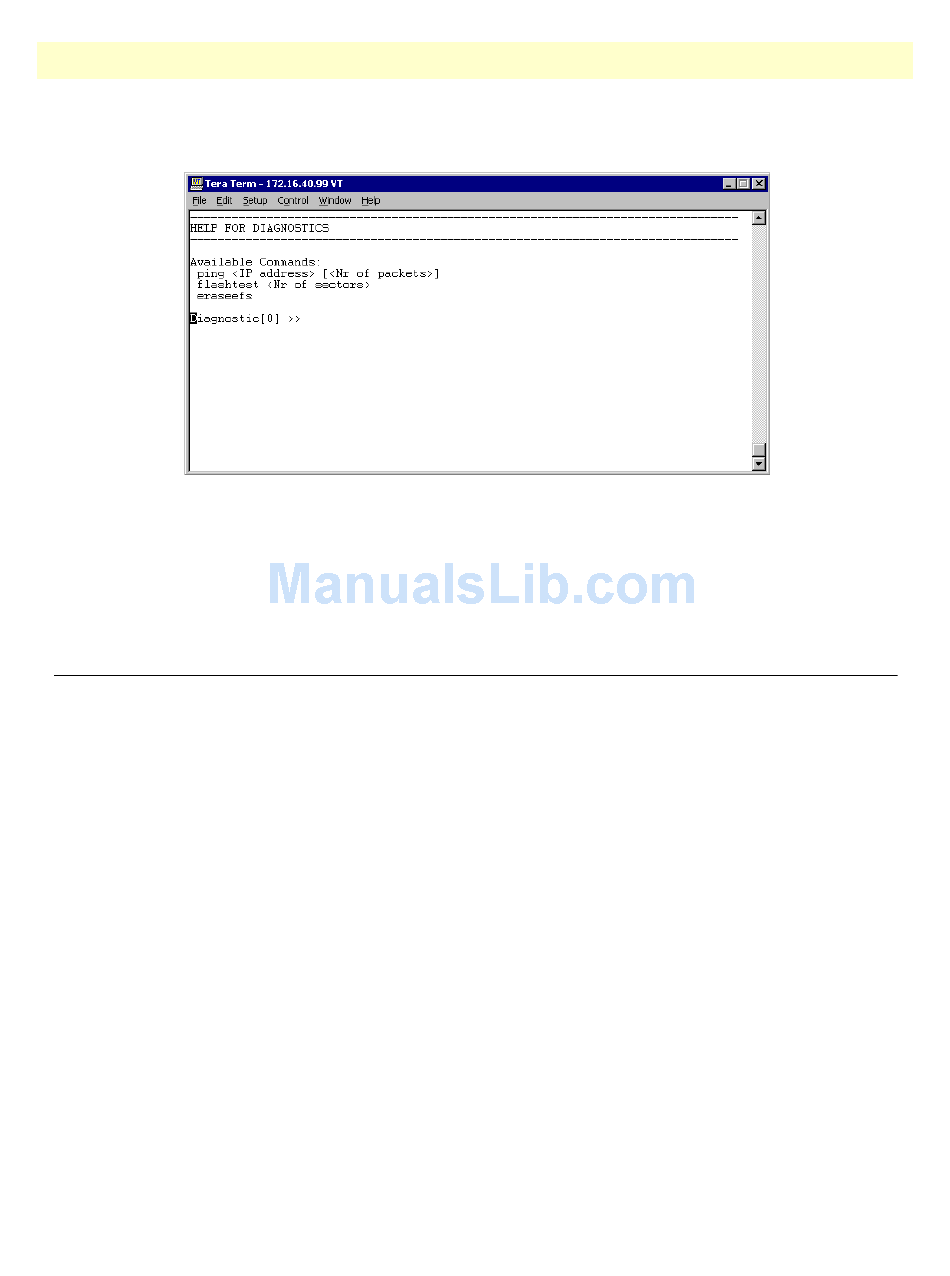

Figure 18. Diagnostic Display
6 • System image handling
figure 18).
