Introduction

This chapter describes how to configure the point-to-point protocol over different link layers.
The point-to-point protocol (PPP) provides a standard method for transporting multi-protocol datagrams over
point-to-point links as defined by the RFC1661 etc. SmartWare offers PPP over the following link layers:
• PPP over Ethernet (PPPoE)
• PPP over serial link, i.e. V.35/X.21, HDLC (only available with the SmartNode 2300)

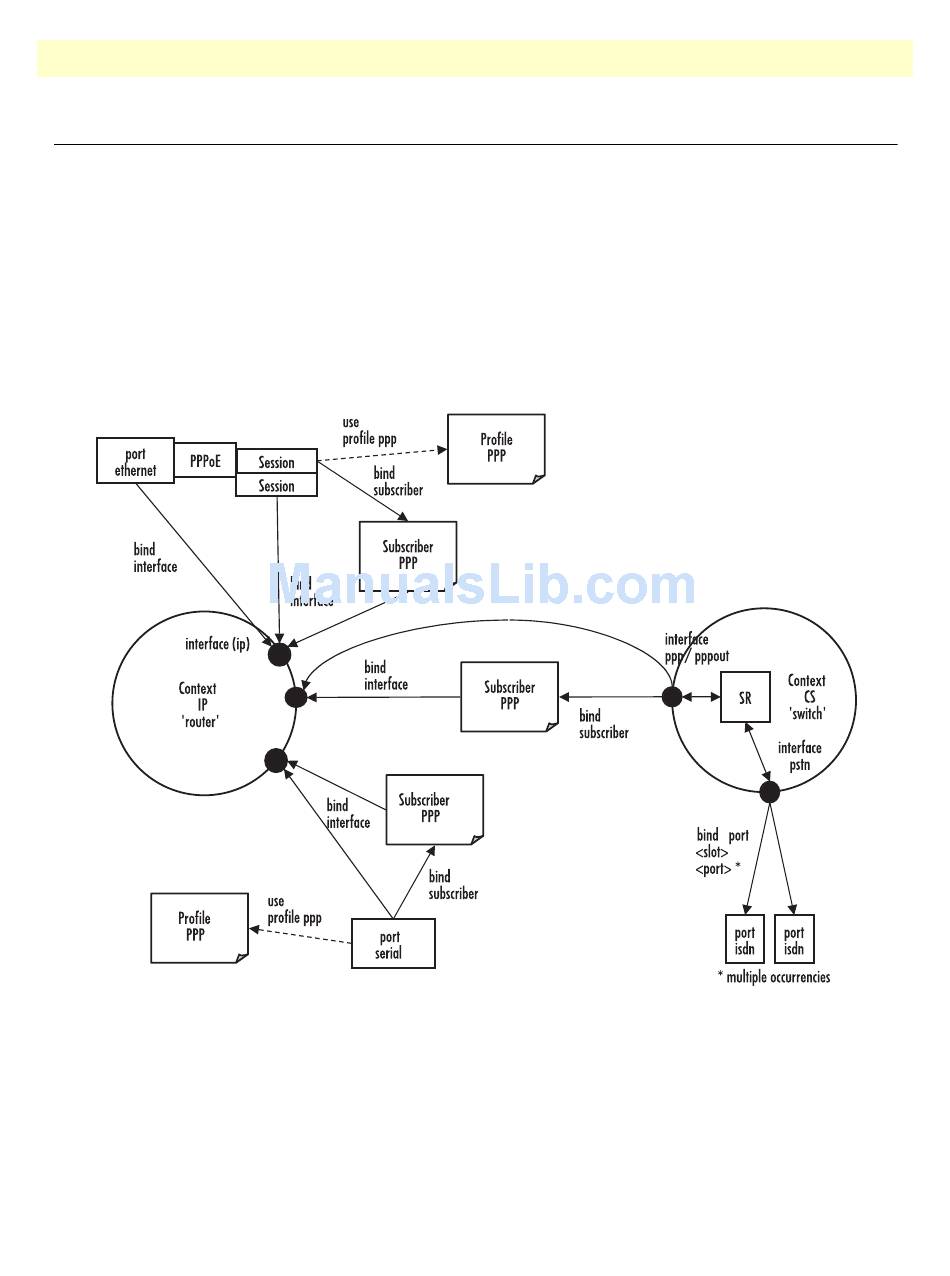

Figure 48 shows the elements involved in the configuration of PPP. The elements required to configure PPP
over Ethernet are located in the upper left corner of the figure. The elements for PPP over serial link are in the
lower left corner. For PPP over ISDN, the elements are in the middle and the lower right corner.
Since the purpose of PPP is providing IP connectivity over different types of link layers, all PPP configuration
elements connect to the IP context through an IP interface. This connection is relayed via a subscriber profile if
either PPP peer requires authentication.
For PPP over Ethernet, a PPPoE session must be configured on the respective Ethernet port. It is possible to
set-up several (limited by the available memory) PPPoE sessions on the same Ethernet port, each session with
its own IP interface. In addition to these PPPoE sessions, pure IP traffic can run concurrently over the same
Ethernet port. This is achieved by binding the Ethernet port directly to an IP interface.
