MERLIN LEGEND Communications System Release 6.1
Maintenance and Troubleshooting 555-661-140
Module Problems
Console Display/Instructions

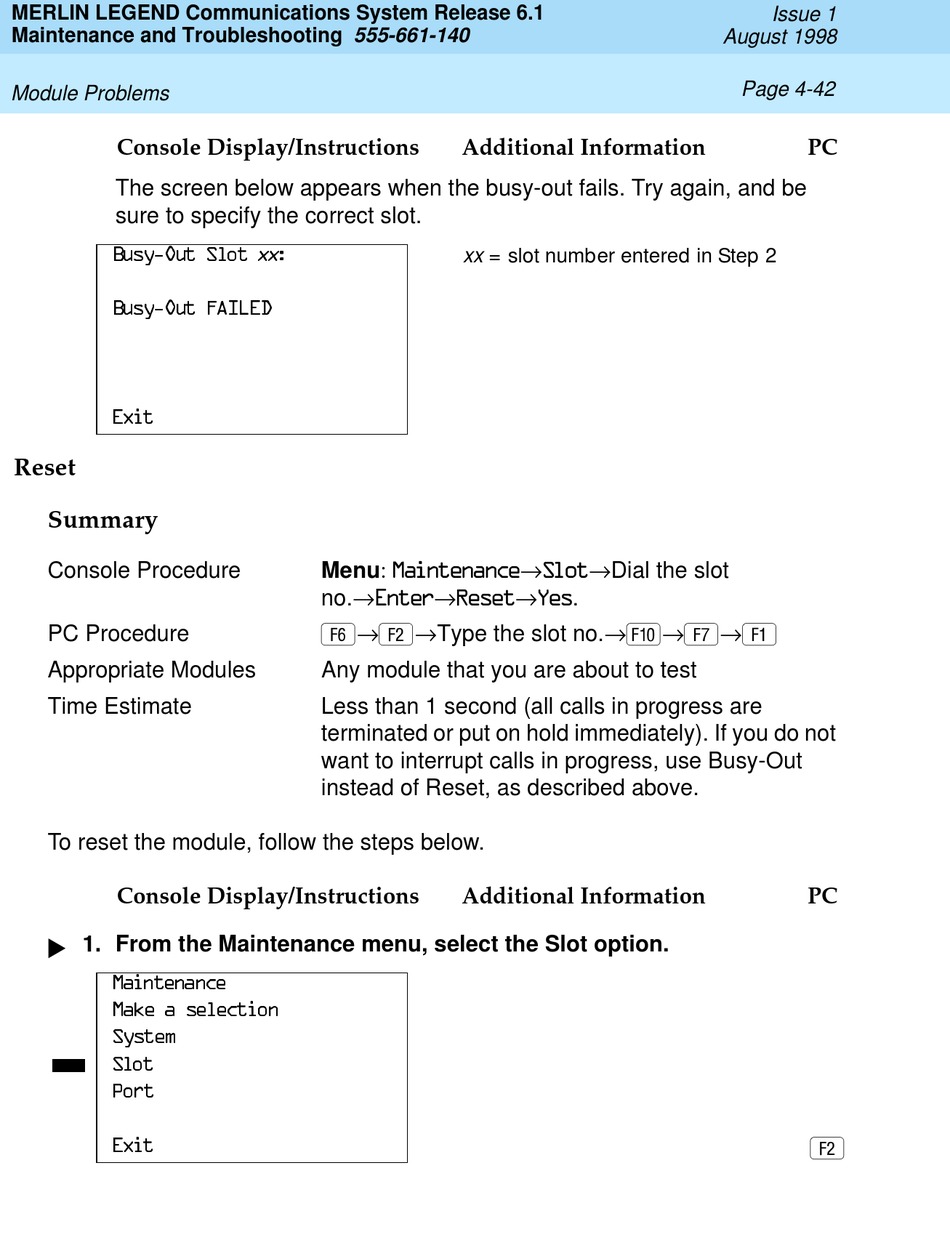

The screen below appears when the busy-out fails. Try again, and be
sure to specify the correct slot.
Reset
Summary
Console Procedure
PC Procedure
Appropriate Modules
Time Estimate
To reset the module, follow the steps below.
Console Display/Instructions
From the Maintenance menu, select the Slot option.
Additional Information
xx = slot number entered in Step 2
Menu
no.
Type the slot no.
Any module that you are about to test
Less than 1 second (all calls in progress are
terminated or put on hold immediately). If you do not
want to interrupt calls in progress, use Busy-Out
instead of Reset, as described above.
Additional Information
August 1998
Page 4-42
Dial the slot
.
Issue 1
PC
PC
