MERLIN LEGEND
Communications System
Release 5.0
System Planning
®
555-650-112
Issue 1
June 1997

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MERLIN LEGEND and is the answer not in the manual?

Questions and answers

Related Manuals for Lucent Technologies MERLIN LEGEND

Summary of Contents for Lucent Technologies MERLIN LEGEND

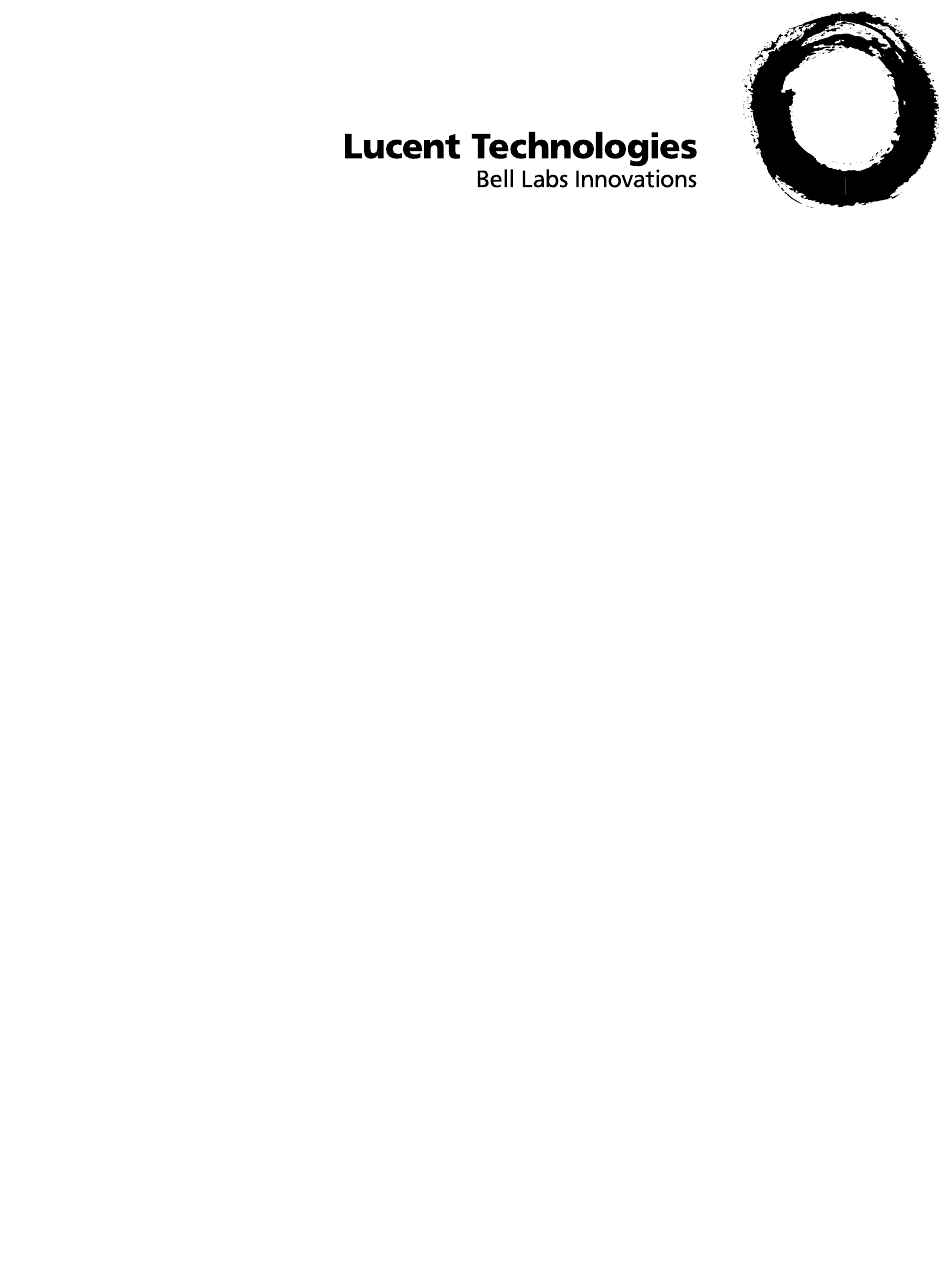

  • Page 1 ® MERLIN LEGEND Communications System Release 5.0 System Planning 555-650-112 Issue 1 June 1997...
  • Page 2 Lucent Technologies does not warrant that this product is immune from or will prevent unauthorized use of common-carrier telecommunication services or facilities accessed through or connected to it. Lucent Technologies will not be responsible for any charges that result from such unau- thorized use.
  • Page 3 MERLIN LEGEND Communications System Release 5.0 Issue 1 System Planning 555-650-112 June 1997 Contents Page iii Contents Contents IMPORTANT SAFETY INSTRUCTIONS New Features and Enhancements xiii Release 4.1 Enhancements xiii Coverage Timers Programmed for Individual Extensions xiii Night Service with Coverage Control...
  • Page 4 MERLIN LEGEND Communications System Release 5.0 Issue 1 System Planning 555-650-112 June 1997 Contents Page iv Support for T1 Switched 56 Digital Data Transmission xxvii Forwarding Delay Option xxvii Voice Announce on Queued Call Console xxvii Time-Based Option for Overflow on Calling Group...
  • Page 5 MERLIN LEGEND Communications System Release 5.0 Issue 1 System Planning 555-650-112 June 1997 Contents Page v Automatic Maintenance Busy Set System Date 2-10 Backup 2-10 System Consoles 2-10 Second Dial Tone Timer 2-11 Applications 2-11 Numbering the System 2-12 Identifying Extension Jacks...
  • Page 6 MERLIN LEGEND Communications System Release 5.0 Issue 1 System Planning 555-650-112 June 1997 Contents Page vi Features Telephone and Extension Features Queued Call Console (Hybrid/PBX Only) Pool Dial-Out Code Restriction (Hybrid/PBX Only) Calling Restrictions Forced Account Code Entry Microphone Operation...
  • Page 7 MERLIN LEGEND Communications System Release 5.0 Issue 1 System Planning 555-650-112 June 1997 Contents Page vii Allowed Lists 4-42 Disallowed Lists 4-44 Call Restriction Summary 4-45 Night Service 4-46 Labeling 4-49 Automatic Route Selection (Hybrid/PBX Only) 4-51 Data Communications Terminology...
  • Page 8 MERLIN LEGEND Communications System Release 5.0 Issue 1 System Planning 555-650-112 June 1997 Contents Page viii System Speed Dial Codes 5-40 Creating Data Hunt Groups 5-41 Guidelines 5-41 Digital Data/Video Stations 5-43 Modifications Preparation Adding to the System Upgrading Upgrading to Release 5.0...
  • Page 9 MERLIN LEGEND Communications System Release 5.0 Issue 1 System Planning 555-650-112 June 1997 Contents Page ix Establishing a Policy A-19 Choosing Passwords A-20 Physical Security A-20 Limiting Outcalling A-20 Limited Warranty and Limitation of Liability A-21 Limitation of Liability A-22...
  • Page 10 MERLIN LEGEND Communications System Release 5.0 Issue 1 System Planning 555-650-112 June 1997 Contents Page x...

  • Page 11: Important Safety Instructions

    Do not overload wall outlets, as this can result in the risk of fire or electrical shock. The MERLIN LEGEND Communications System is equipped with a 3-wire grounding-type plug with a third (grounding) pin. This plug will fit only into a grounding-type power outlet.
  • Page 12 June 1997 IMPORTANT SAFETY INSTRUCTIONS Page xii The MERLIN LEGEND Communications System requires a supplementary ground. Do not attach the power supply cord to building surfaces. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it.

  • Page 13: New Features And Enhancements

    MERLIN LEGEND Communications System Release 5.0 Issue 1 System Planning 555-650-112 June 1997 New Features and Enhancements Release 4.1 Enhancements Page xiii New Features and Enhancements Release 4.1 Enhancements Release 4.1 includes all Release 4.0 functionality, plus the enhancements listed below.
  • Page 14 Network-1 Basic Rate Interface) Provisioning Test Tool is enhanced to include testing for BRI facilities that are part of Multiline Hunt Groups (MLHGs). The NI-1 BRI Provisioning Test Tool is used by Lucent Technologies maintenance personnel on MERLIN LEGEND Communications Systems that include a 800 NI-BRI module.

  • Page 15: Release 4.2 Enhancements

    LEC services for DMS-100 switch types: — DMS Virtual Private Network service for calls between the MERLIN LEGEND Communications System and another communications system (such as another MERLIN LEGEND Communications System) — DMS INWATS (Inward Wide Area Telephone Service) for domestic toll-free incoming voice calls —...
  • Page 16 These improvements apply to calling groups that are programmed as Auto Login or Auto Logout type. The SMDR and MERLIN LEGEND Reporter features listed are administrable: TALK Field.

  • Page 17: Merlin Legend Reporter

    Release 4.2 Enhancements Page xvii MERLIN LEGEND Reporter MERLIN LEGEND Reporter provides basic call accounting system reports for all incoming calls to Auto Login or Auto Logout type calling groups. MERLIN LEGEND Reporter assists in determining the effectiveness of calling group...

  • Page 18: Release 5.0 Enhancements

    Computer Telephony Integration (CTI) Beginning with Release 5.0, a PassageWay® Telephony Services CTI link from the MERLIN LEGEND Communications System to a LAN server running Novell® NetWare® software allows Lucent Technologies-certified telephony applications to control and monitor MLX and analog multiline telephone (BIS only) operations.
  • Page 19 Screen pop can occur on incoming calls from the following sources: Calling group distribution ISDN PRI Routing by Dial Plan An extension on the MERLIN LEGEND Communications System Remote access NOTE: In the case of remote access calls, the only information that the application can collect about the caller is the remote telephone number.
  • Page 20 MERLIN LEGEND Communications System Release 5.0 Issue 1 System Planning 555-650-112 June 1997 New Features and Enhancements Release 5.0 Enhancements Page xx HotLine Feature The Release 5.0 HotLine feature is designed for retail sales, catalogue sales, and other types of businesses and organizations and is available in all three modes of system operation.
