ONFIGURING THE

• Web secure server – Shows if management access via HTTPS is

• Web secure server port – Shows the TCP port used by the HTTPS

• Telnet server – Shows if management access via Telnet is enabled.

• Telnet server port – Shows the TCP port used by the Telnet interface.

• Authentication login – Shows the user login authentication sequence.

• Jumbo Frame – Shows if jumbo frames are enabled.

• POST result – Shows results of the power-on self-test

Web – Click System, System Information. Specify the system name,

location, and contact information for the system administrator, then click

Apply. (This page also includes a Telnet button that allows access to the

Command Line Interface via Telnet.)

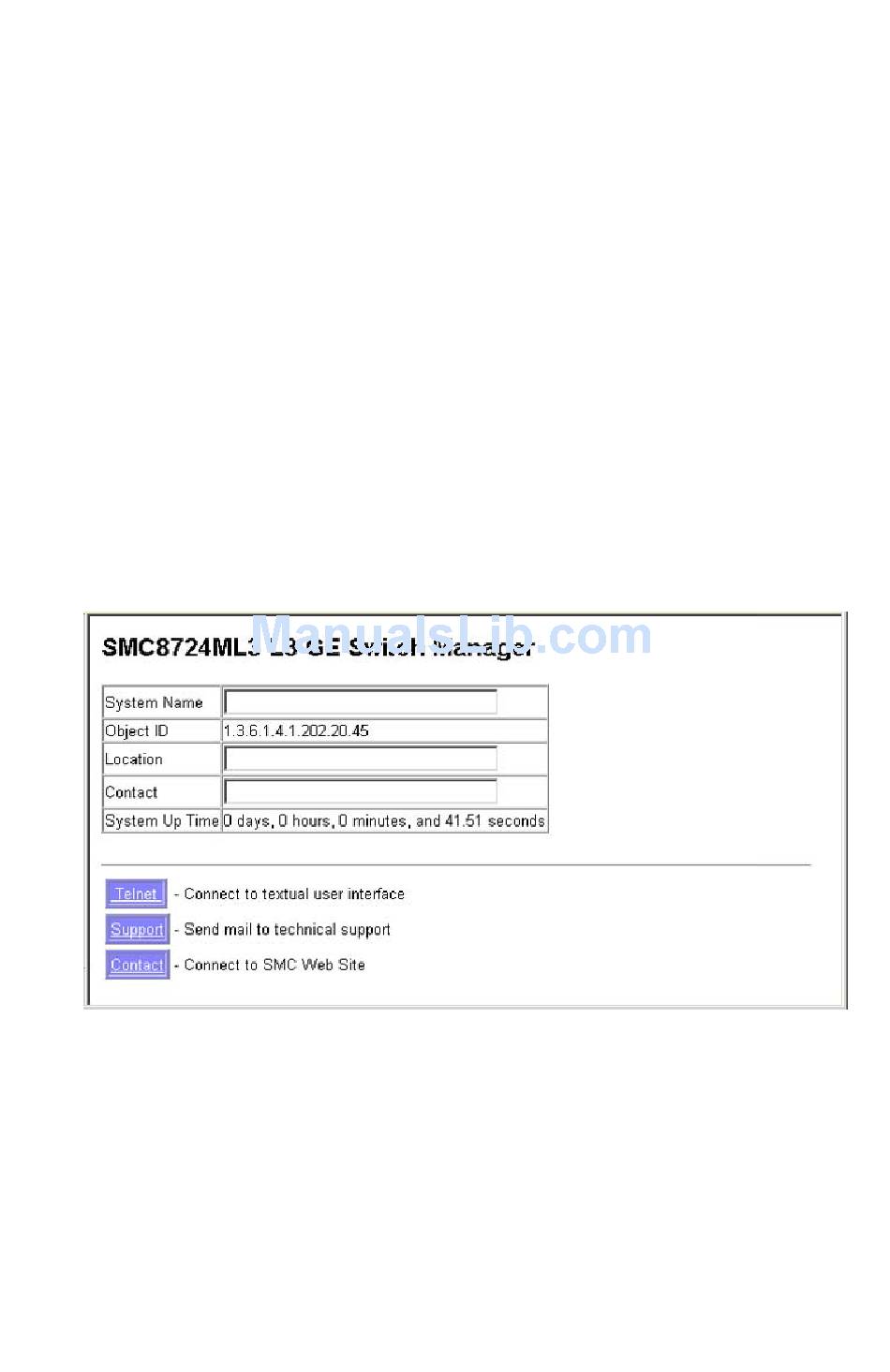

Figure 3-3 System Information
