C
ONFIGURING THE
IP address. An interface can have only one primary IP address, but
can have multiple secondary IP addresses. In other words, you will
need to specify secondary addresses if more than one IP subnet can
accessed via this interface.
- If DHCP/BOOTP is enabled, IP will not function until a reply has
been received from the address server. Requests will be broadcast
periodically by the router for an IP address. (DHCP/BOOTP values
include the IP address and subnet mask.)
• IP Address – Address of the VLAN interface. Valid IP addresses
consist of four numbers, 0 to 255, separated by periods.
• Subnet Mask – This mask identifies the host address bits used for
routing to specific subnets.

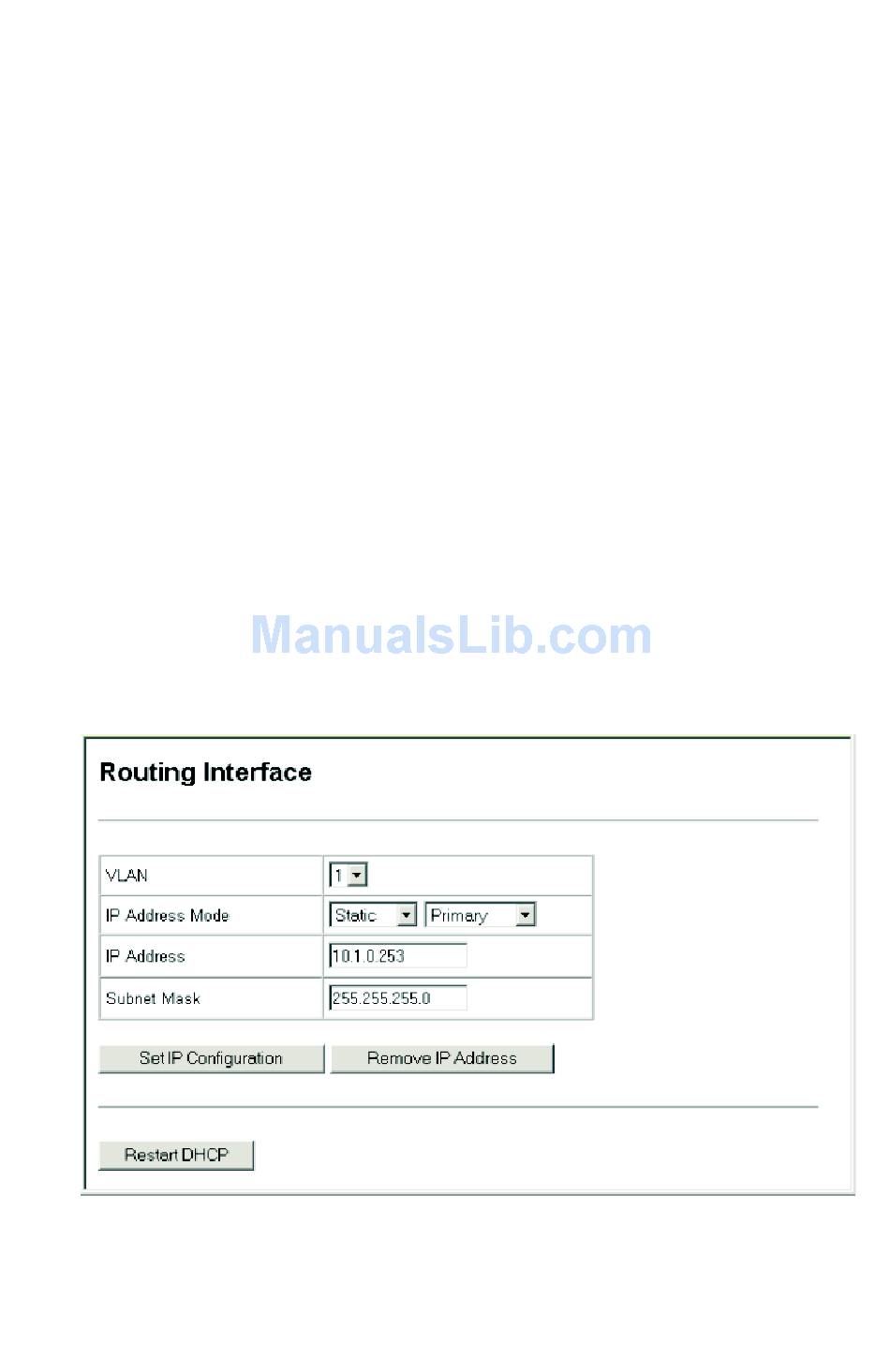

Web - Click IP, General, Routing Interface. Specify an IP interface for each
VLAN that will support routing to other subnets. First specify a primary
address, and click Set IP Configuration. If you need to assign secondary
addresses, enter these addresses one at a time, and click Set IP
Configuration after entering each address.
3-272
S
WITCH

Figure 3-117 IP Routing Interface
