Figure 3-85 Protocol Vlan Port Configuration - SMC Networks SMC8748ML3 Management Manual

Gigabit ethernet switch

Hide thumbs Also See for SMC8748ML3:

Table of Contents

ONFIGURING THE

Web – Click VLAN, Protocol VLAN, Port Configuration. Select a a port

or trunk, enter a protocol group ID, the corresponding VLAN ID, and

click Apply.

CLI – The following maps the traffic entering Port 1 which matches the

protocol type specified in protocol group 1 to VLAN 3.

Console(config)#interface ethernet 1/1

Console(config-if)#protocol-vlan protocol-group 1 vlan 3

Console(config-if)#

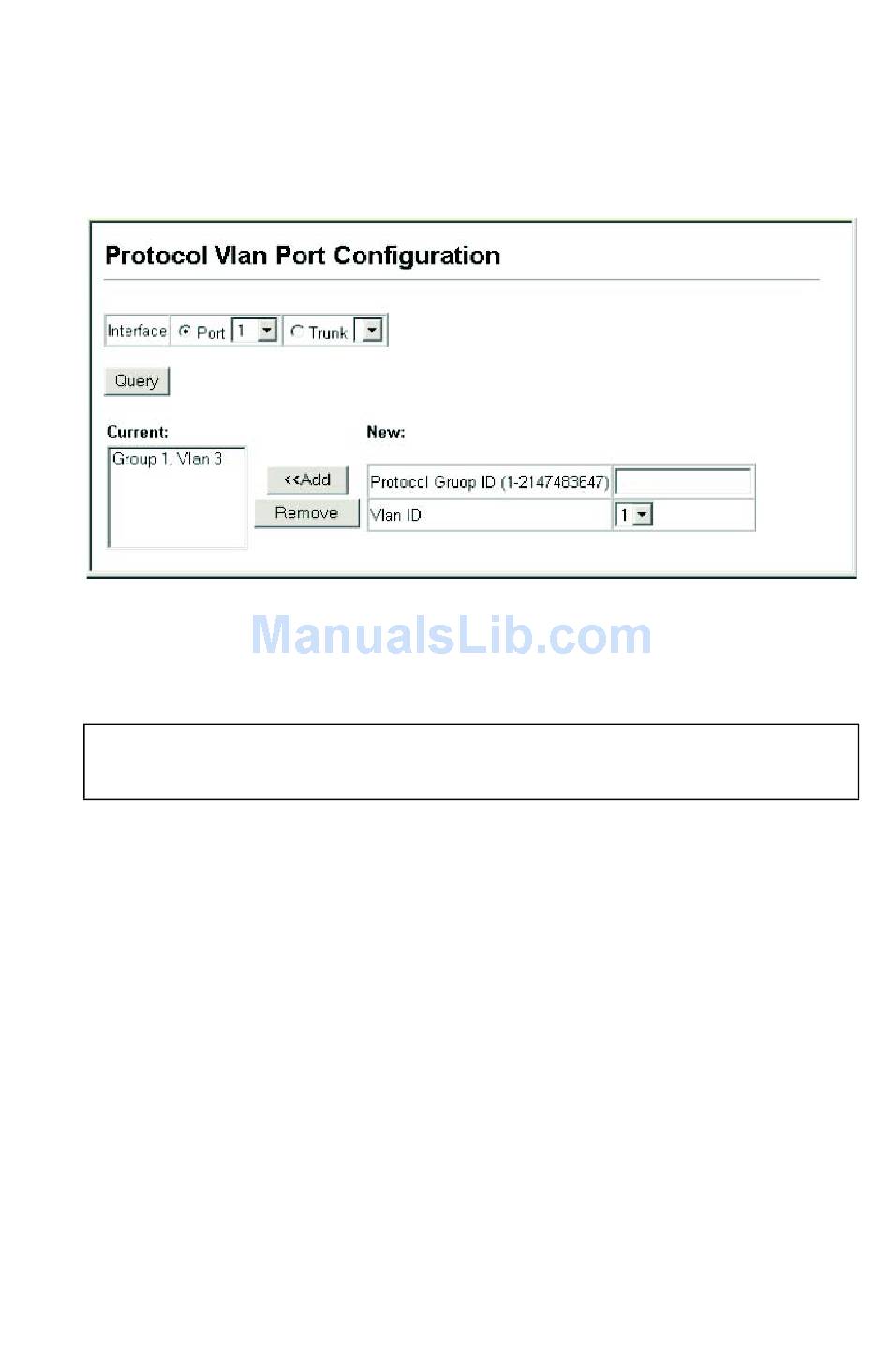

Figure 3-85 Protocol VLAN Port Configuration
