Figure 3-133 Ospf General Configuration - SMC Networks SMC8748ML3 Management Manual

C
ONFIGURING THE
Web - Click Routing Protocol, OSPF, General Configuration. Enable
OSPF, specify the Router ID, configure the other global parameters as
required, and click Apply.
CLI - This example configures the router with the same settings as shown
in the screen capture for the web interface.
Console(config)#router ospf
Console(config-router)#router-id 10.1.1.253
Console(config-router)#no compatible rfc1583
Console(config-router)#default-information originate always
metric 10 metric-type 2
Console(config-router)#timers spf 10
Console(config-router)#
3-308
S
WITCH

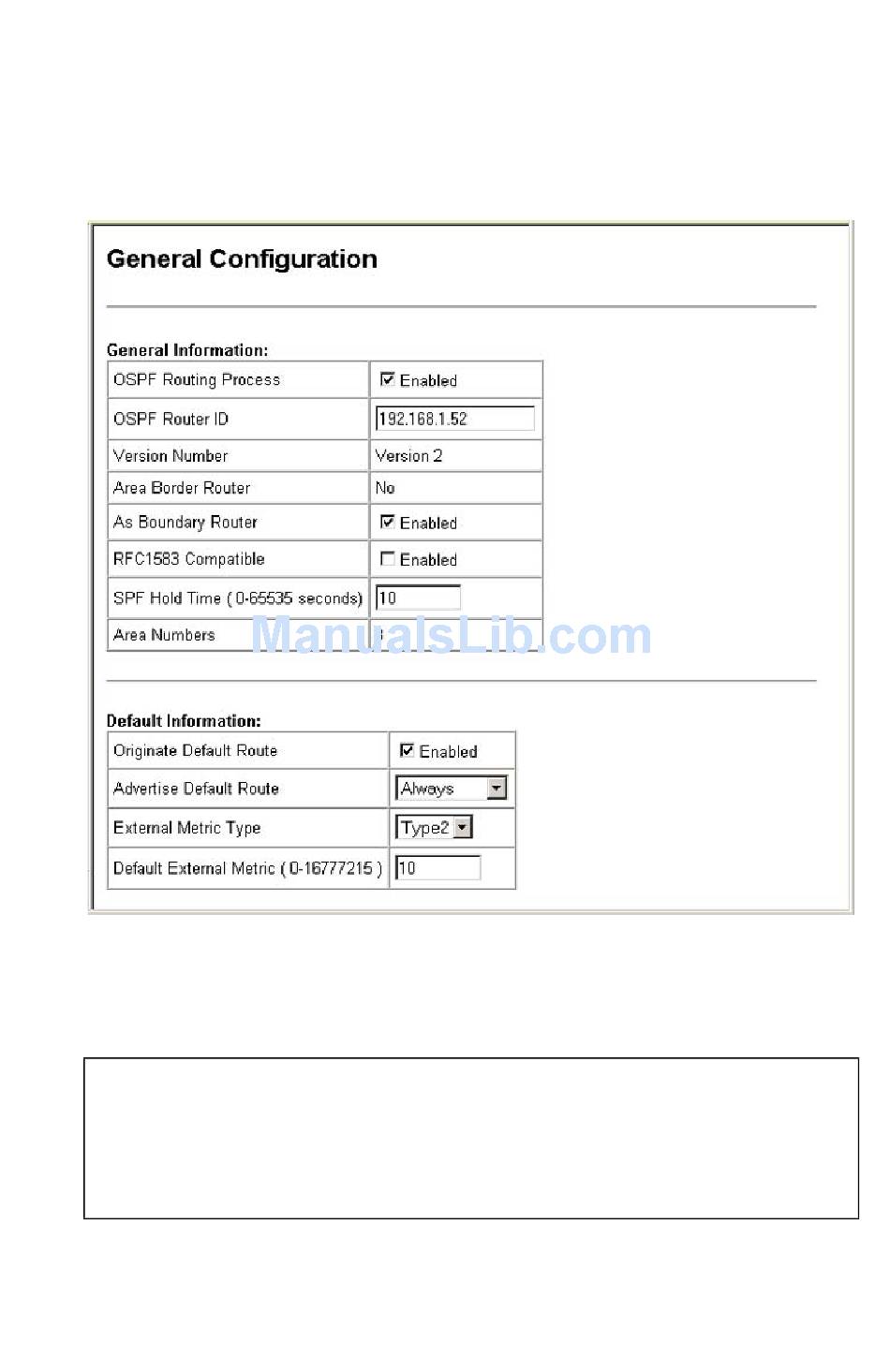

Figure 3-133 OSPF General Configuration
