Figure 3-35 Authentication Server Settings - SMC Networks SMC8748ML3 Management Manual

• TACACS Settings
- Server IP Address – Address of the TACACS+ server.
(Default: 10.11.12.13)
- Server Port Number – Network (TCP) port of TACACS+ server
used for authentication messages. (Range: 1-65535; Default: 49)
- Secret Text String – Encryption key used to authenticate logon
access for client. Do not use blank spaces in the string. (Maximum
length: 20 characters)
Note: The local switch user database has to be set up by manually
entering user names and passwords using the CLI. (See
"username" on page 4-35.)
Web – Click Security, Authentication Settings. To configure local or
remote authentication preferences, specify the authentication sequence
(i.e., one to three methods), fill in the parameters for RADIUS or
TACACS+ authentication if selected, and click Apply.

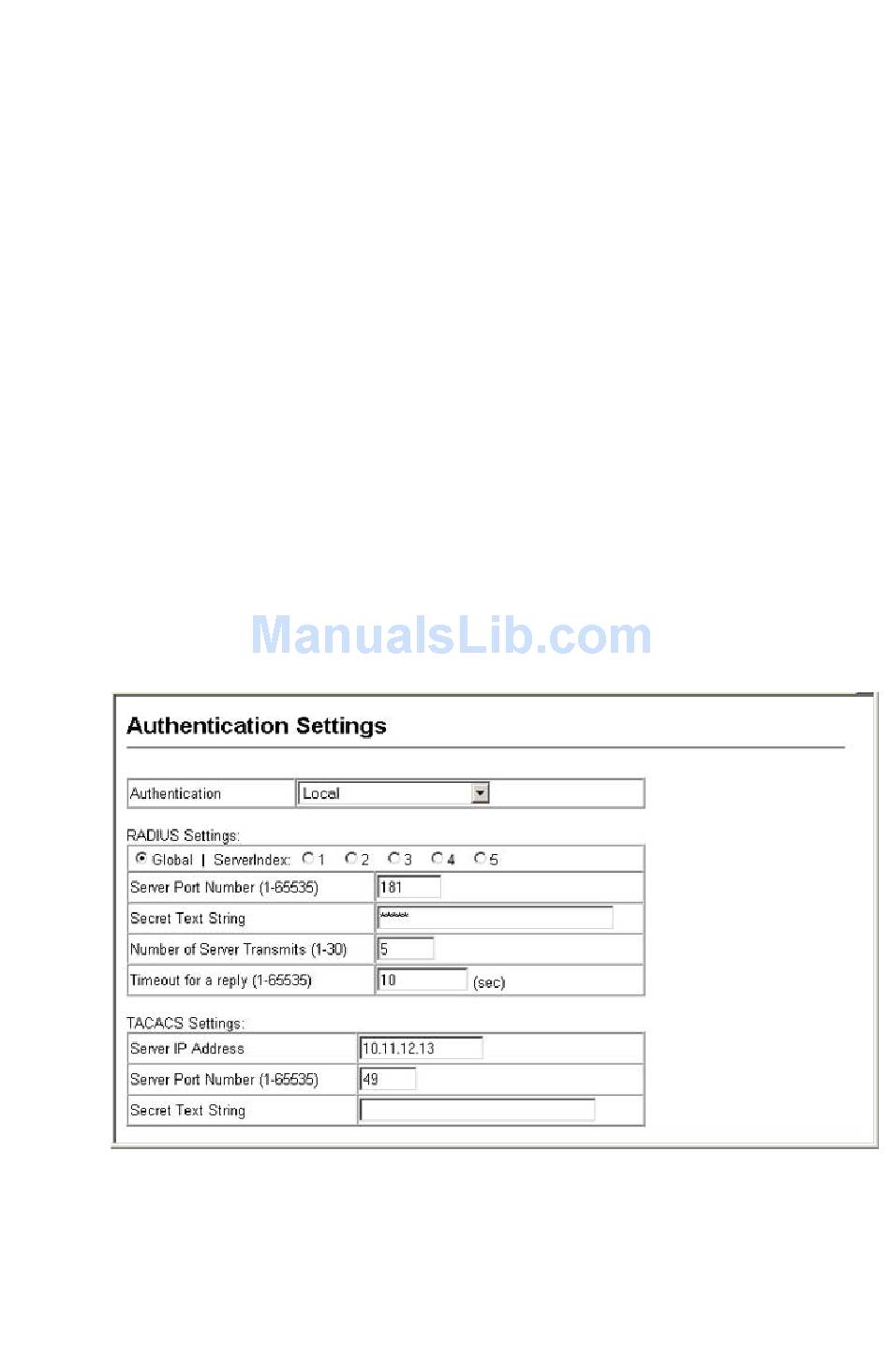

Figure 3-35 Authentication Server Settings

U A
SER UTHENTICATION
3-79
