• IP Address Mode – Specifies whether IP functionality is enabled via
manual configuration (Static), Dynamic Host Configuration Protocol
(DHCP), or Boot Protocol (BOOTP). If DHCP/BOOTP is enabled, IP
will not function until a reply has been received from the server.
Requests will be broadcast periodically by the switch for an IP address.
(DHCP/BOOTP values can include the IP address, subnet mask, and
default gateway.)
• IP Address – Address of the VLAN to which the management station
is attached. (Note you can manage the stack through any configured IP
interface.) Valid IP addresses consist of four numbers, 0 to 255,
separated by periods. (Default: 0.0.0.0)
• Subnet Mask – This mask identifies the host address bits used for
routing to specific subnets. (Default: 255.0.0.0)
• Default Gateway – IP address of the gateway router between the stack
and management stations that exist on other network segments.
(Default: 0.0.0.0)

Manual Configuration

Web – Click IP, General, Routing Interface. Select the VLAN through
which the management station is attached, set the IP Address Mode to
"Static," and specify a "Primary" interface. Enter the IP address, subnet
mask and gateway, then click Apply.

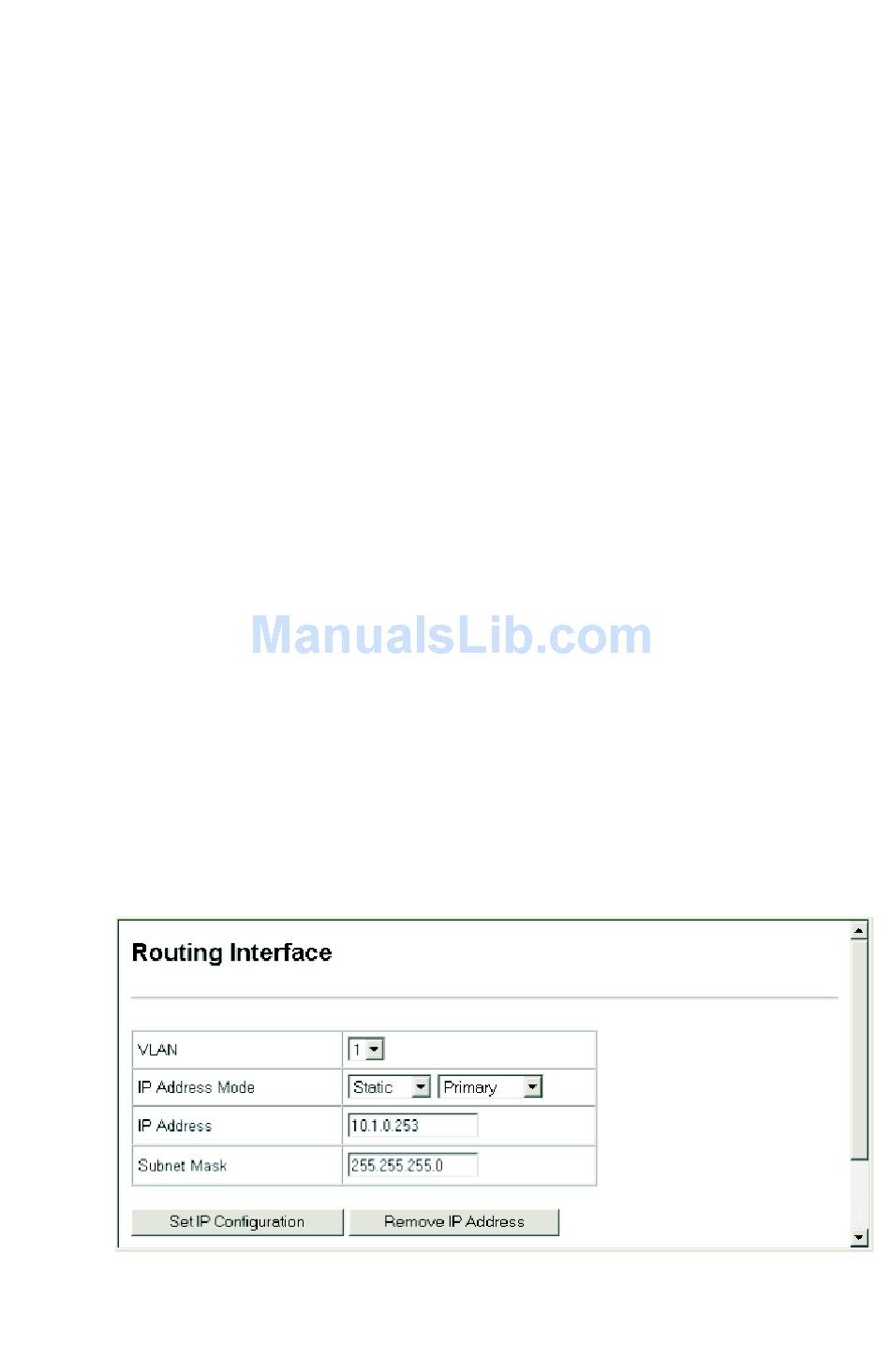

Figure 3-7 IP Interface Configuration - Manual

B
C
ASIC
ONFIGURATION
