Displaying Basic VLAN Information

The VLAN Basic Information page displays basic information on the
VLAN type supported by the switch.
Field Attributes
• VLAN Version Number
specified in the IEEE 802.1Q standard.
• Maximum VLAN ID – Maximum VLAN ID recognized by this
switch.
• Maximum Number of Supported VLANs – Maximum number of
VLANs that can be configured on this switch.
Web – Click VLAN, 802.1Q VLAN, Basic Information.
CLI – Enter the following command.
Console#show bridge-ext
Max support VLAN numbers:
Max support VLAN ID:
Extended multicast filtering services: No
Static entry individual port:
VLAN learning:
Configurable PVID tagging:
Local VLAN capable:
Traffic classes:
Global GVRP status:
GMRP:
Console#
15. Web Only.
3-186
S
WITCH
15

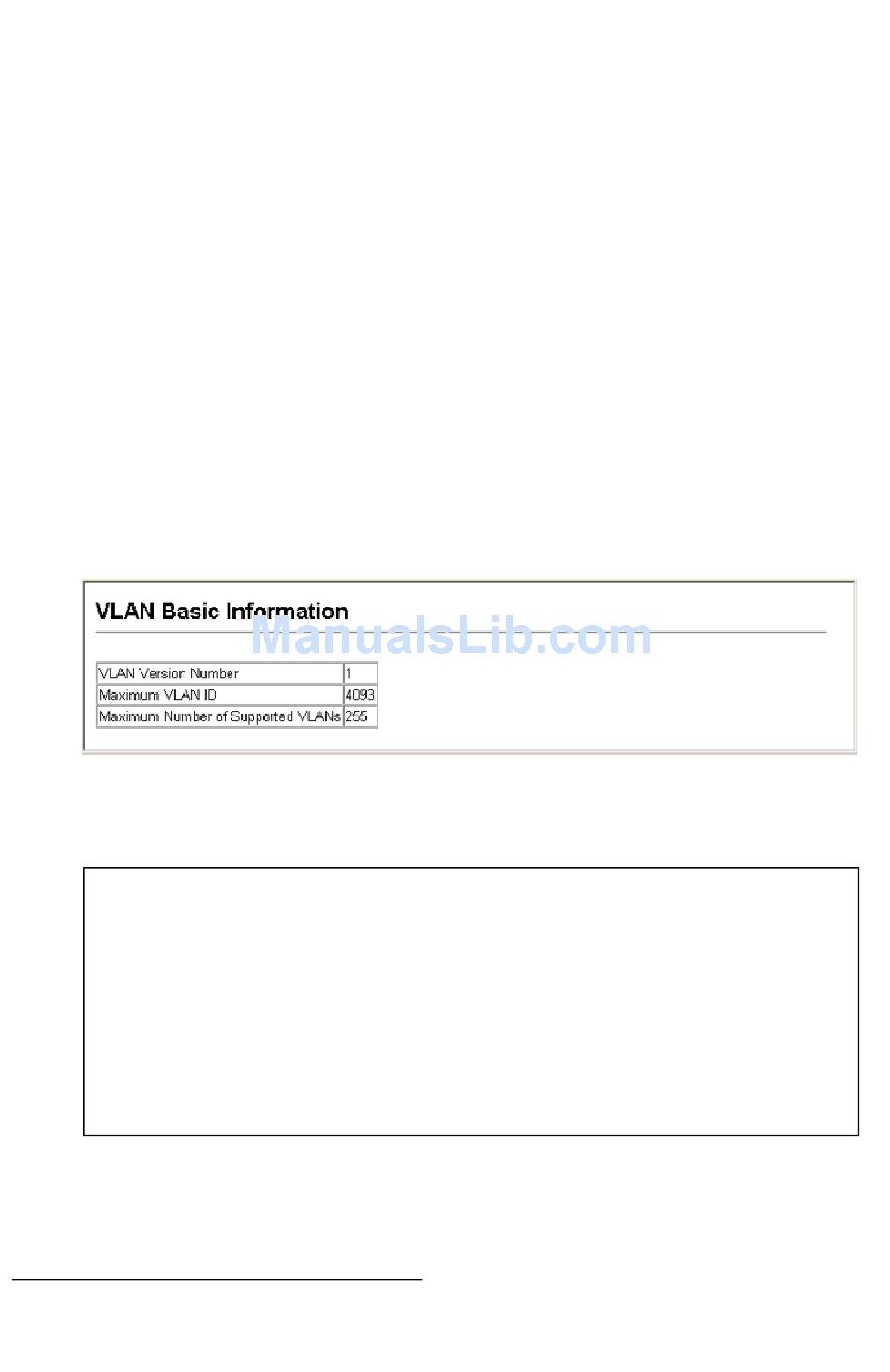

Figure 3-76 VLAN Basic Information

– The VLAN version used by this switch as
256
4093
Yes
IVL
Yes
No
Enabled
Disabled
Disabled
4-265
