Displaying Information on Border Routers

You can display entries in the local routing table for Area Border Routers
(ABR) and Autonomous System Boundary Routers (ASBR) known by this
device.
Field Attributes
• Destination – Identifier for the destination router.
• Next Hop – IP address of the next hop toward the destination.
• Cost – Link metric for this route.
• Type – Router type of the destination; either ABR, ASBR or both.
• Rte Type – Route type; either intra-area or interarea route (INTRA or
INTER).
• Area – The area from which this route was learned.
• SPF No – The number of times the shortest path first algorithm has
been executed for this route.
Web - Click Routing Protocol, OSPF, Border Router Information.

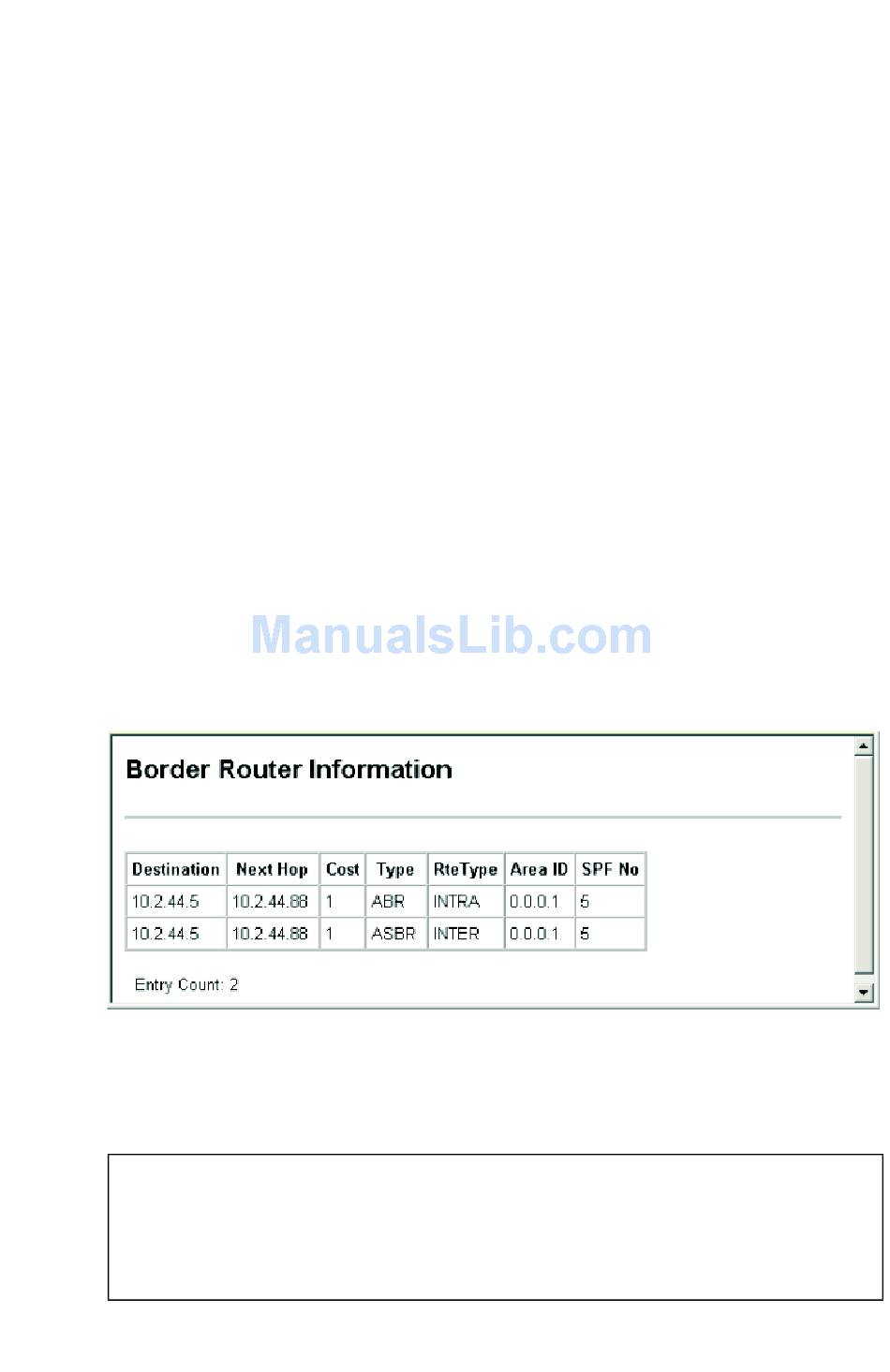

Figure 3-144 OSPF Border Router Information

CLI - This example shows one router that serves as both the ABR for the
local area and the ASBR for the autonomous system.
Console#show ip ospf border-routers
Destination
--------------- --------------- ------ ----- -------- --------------- -------
10.2.44.5
10.2.44.5
Console#
Next Hop Cost
10.2.44.88
10.2.44.88
Type RteType
1 ABR INTRA
1 ASBR INTER
IP R
OUTING
4-365
Area SPF No
0.0.0.1 5
0.0.0.1 5
3-333
