ONFIGURING THE

• Error IP TTL Packets – Number of VRRP packets received by the

virtual router with IP TTL (Time-To-Live) not equal to 255.

• Received Priority 0 Packets – Number of VRRP packets received by

the virtual router with priority set to 0.

• Error Packet Length Packets – Number of packets received with a

packet length less than the length of the VRRP header.

• Invalid Type Packets – Number of VRRP packets received by the

virtual router with an invalid value in the "type" field.

• Error Address List Packets – Number of packets received for which

the address list does not match the locally configured list for the virtual

• Invalid Authentication Type Packets – Number of packets received

with an unknown authentication type.

• Mismatch Authentication Type Packets – Number of packets

received with "Auth Type" not equal to the locally configured

authentication method.

• Sent Priority 0 Packets – Number of VRRP packets sent by the virtual

router with priority set to 0.

Web – Click IP, VRRP, Group Statistics. Select the VLAN and virtual

router group.

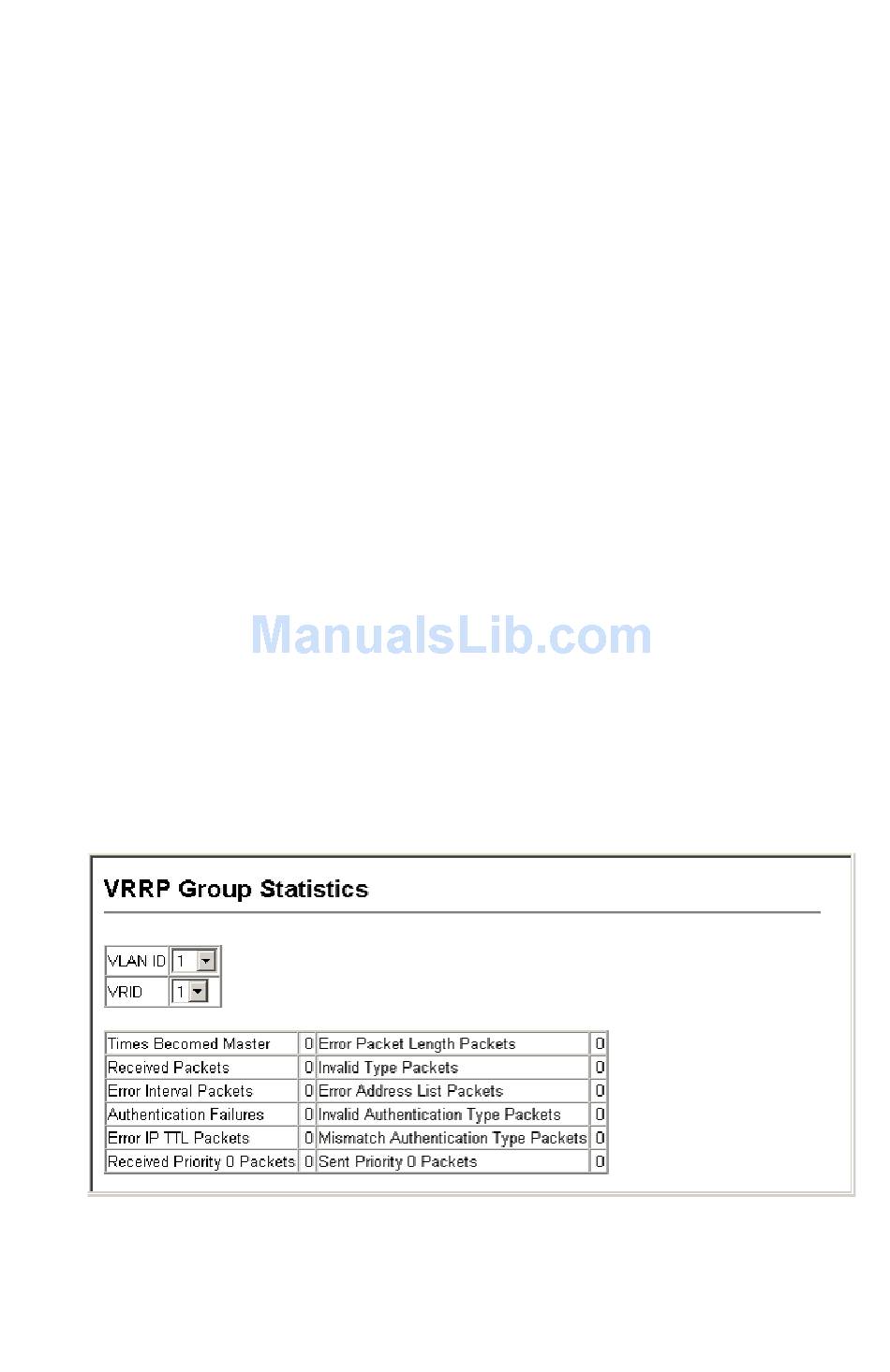

Figure 3-115 VRRP Group Statistics
