Configuring Protocol Groups

Create a protocol group for one or more protocols.
Command Attributes
• Protocol Group ID – Group identifier of this protocol group.
(Range: 1-2147483647)
• Frame Type
RFC_1042, LLC_other)
• Protocol Type – The only option for the LLC_other frame type is
IPX_raw. The options for all other frames types include: IP, ARP,
RARP.
Web – Click VLAN, Protocol VLAN, Configuration. Enter a protocol
group ID, frame type and protocol type, then click Apply.
CLI – The following creates protocol group 1, and then specifies Ethernet
frames with IP and ARP protocol types.
Console(config)#protocol-vlan protocol-group 1
add frame-type ethernet protocol-type ip
Console(config)#protocol-vlan protocol-group 1
add frame-type ethernet protocol-type arp
Console(config)#
17. SNAP frame types are not supported by this switch due to hardware limitations.
3-200
S
WITCH
17
– Frame type used by this protocol. (Options: Ethernet,

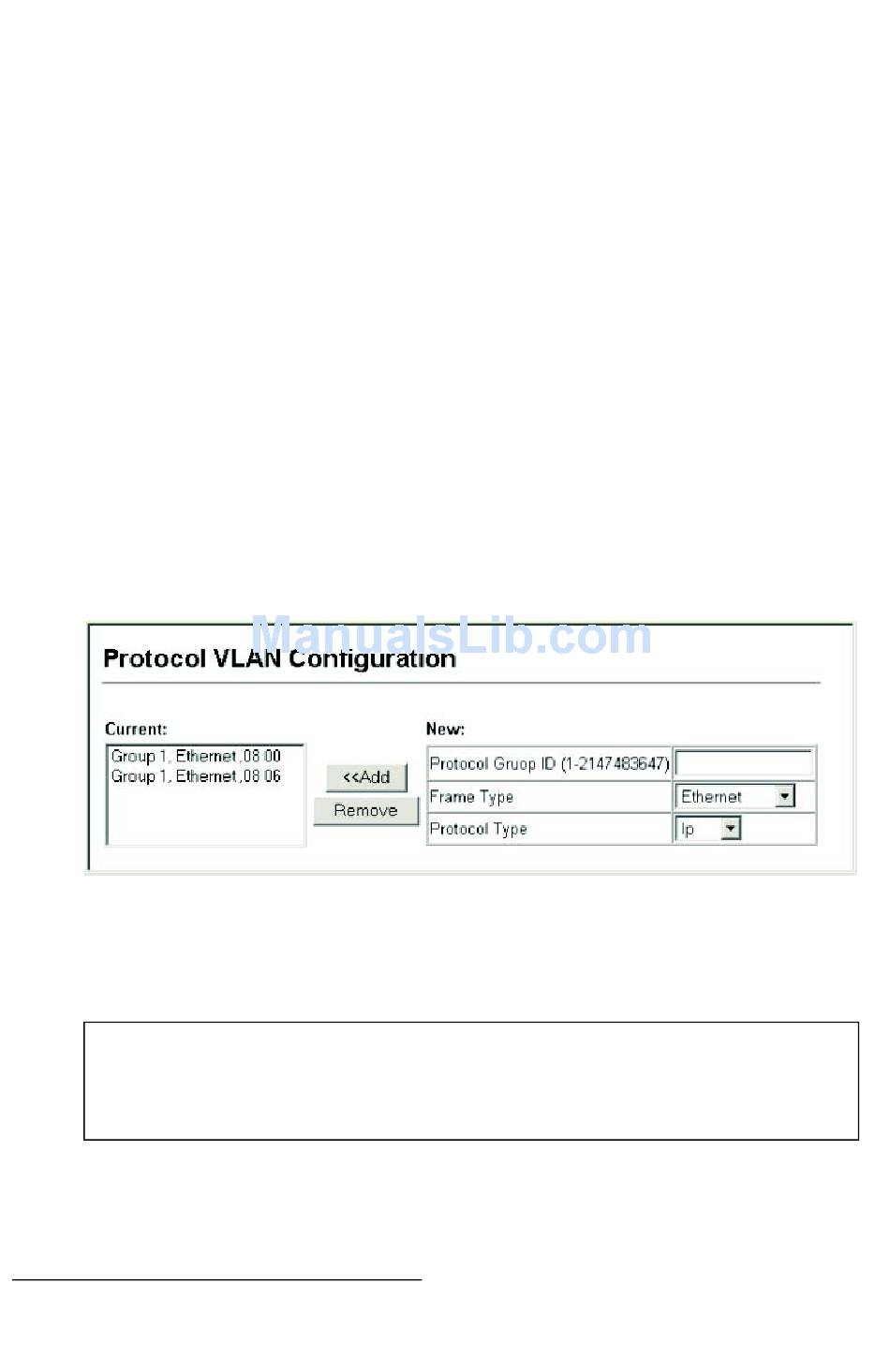

Figure 3-84 Protocol VLAN Configuration
