Specifying the Mask Type

Use the ACL Mask Configuration page to edit the mask for the Ingress IP
ACL, Egress IP ACL, Ingress MAC ACL or Egress MAC ACL.
Web – Click Security, ACL, Mask Configuration. Click Edit for one of the
basic mask types to open the configuration page.
CLI – This example creates an IP ingress mask, and then adds two rules.
Each rule is checked in order of precedence to look for a match in the
ACL entries. The first entry matching a mask is applied to the inbound
packet.
Console(config)#access-list ip mask-precedence in
Console(config-ip-mask-acl)#mask host any
Console(config-ip-mask-acl)#mask 255.255.255.0 any
Console(config-ip-mask-acl)#
3-112
S
WITCH

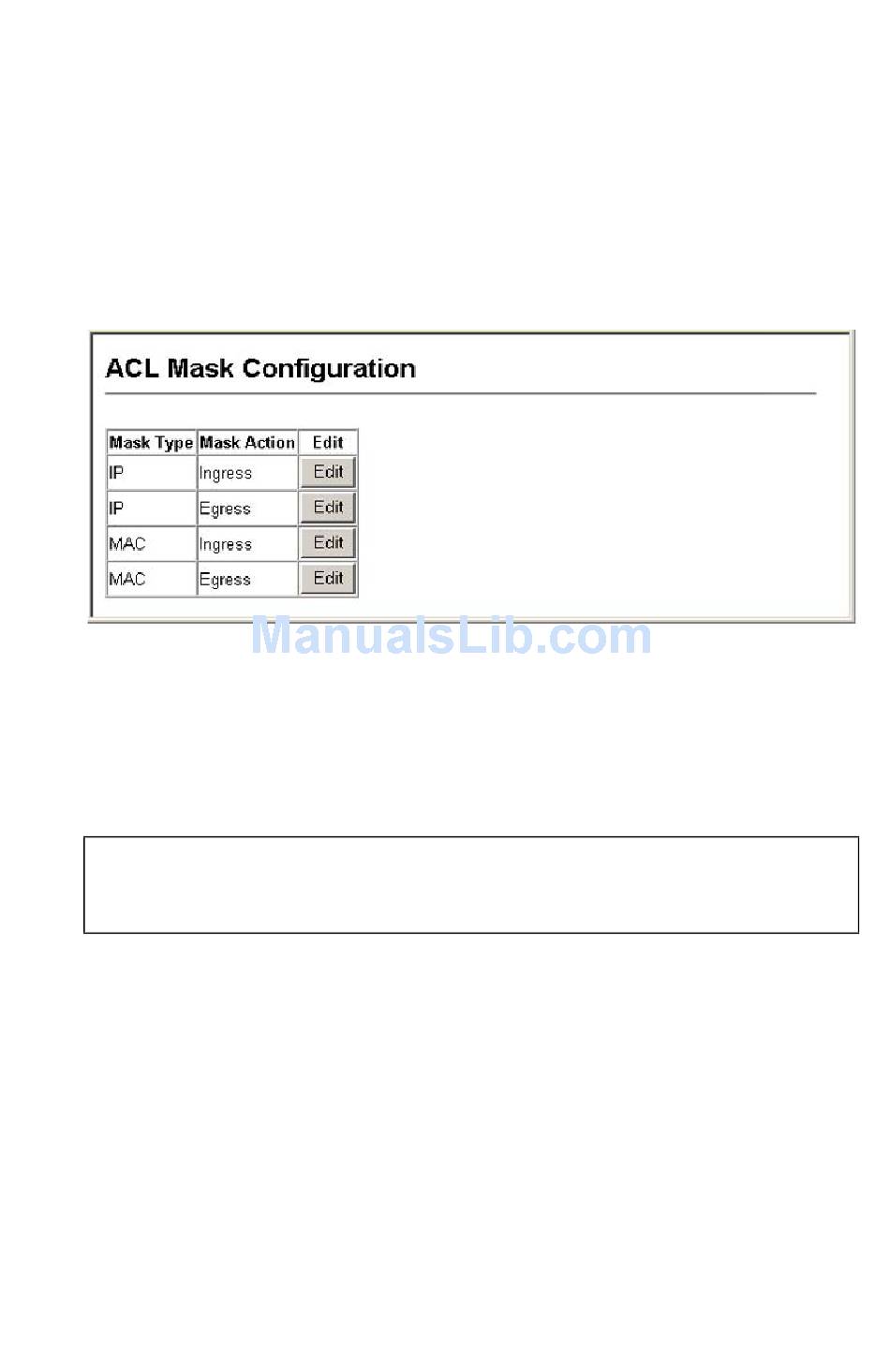

Figure 3-49 Selecting ACL Mask Types
