Omron CX-PROCESS MONITOR PLUS V2 - 01-2007 Operation Manual page 81

Example Function Blocks for Data Exchange
66

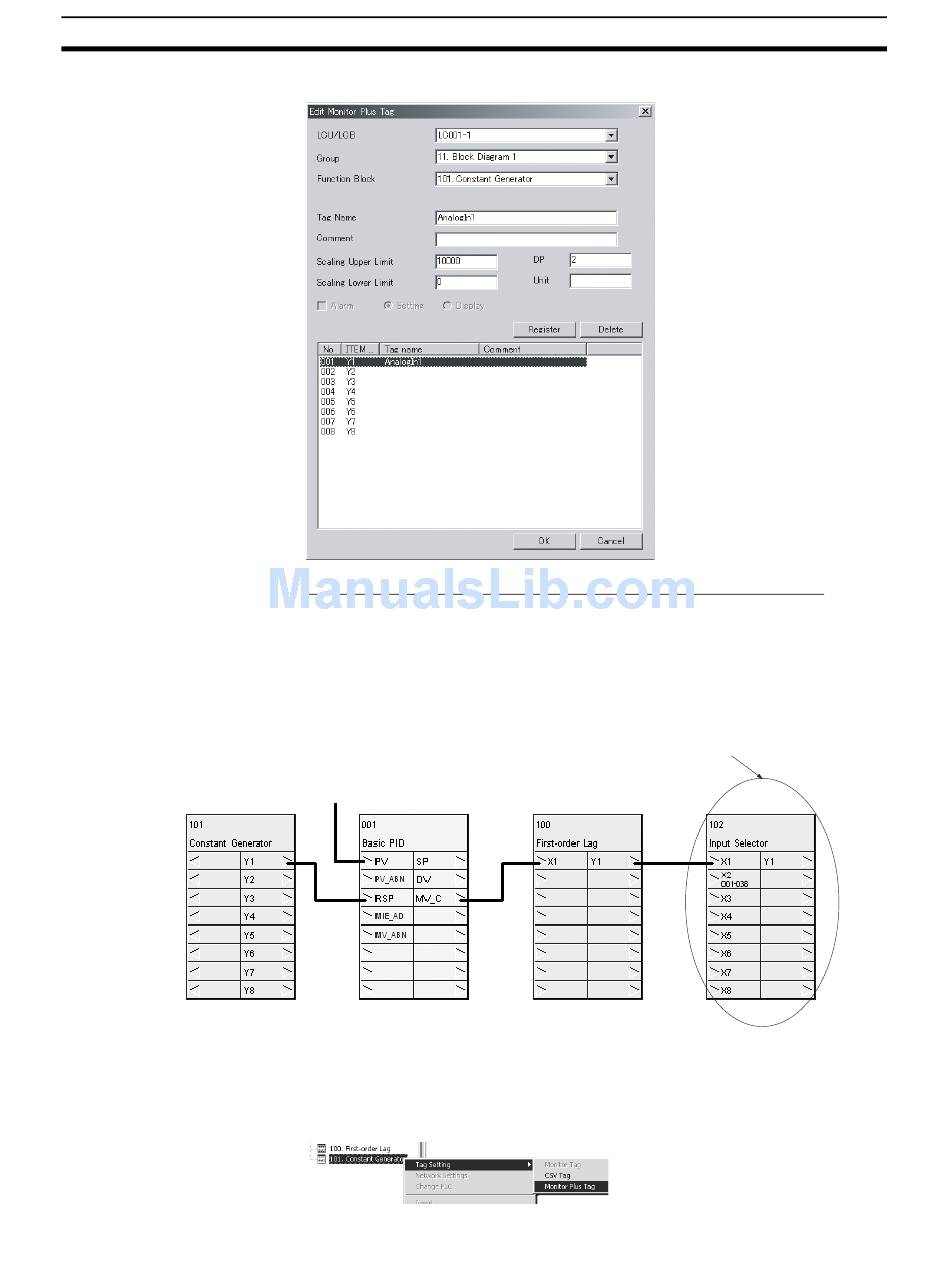

Tag name "AnalogIn1" is set for ITEM Y1.
2-2 Creating a Function Block to Monitor Data from Monitor Plus
Monitoring the Filtered PID Output from Monitor Plus
This step registers a function block that monitors the analog output from the
First-order Lag block (the filtered PID Block output). In this case, an analog
input is being monitored from Monitor Plus, so the Input Selector (Block Model
162) is registered and connected.
PV
(Feedback from
the whole system)
Setting the Tags for Monitor Plus
This step sets the tag for Monitor Plus needed to monitor the analog signal in
the Input Selector (Block Model 162). This tag is specified from Monitor Plus
to monitor the analog value.
This function block is registered and connected
to monitor the analog output.
Section 3-2
