Function Block Error Dialog Box Operations - Omron CX-PROCESS MONITOR PLUS V2 - 01-2007 Operation Manual

System Monitor Screens

4-17-4 Function Block Error Dialog Box Operations

1,2,3...
Block Database Error
Execution Error
134

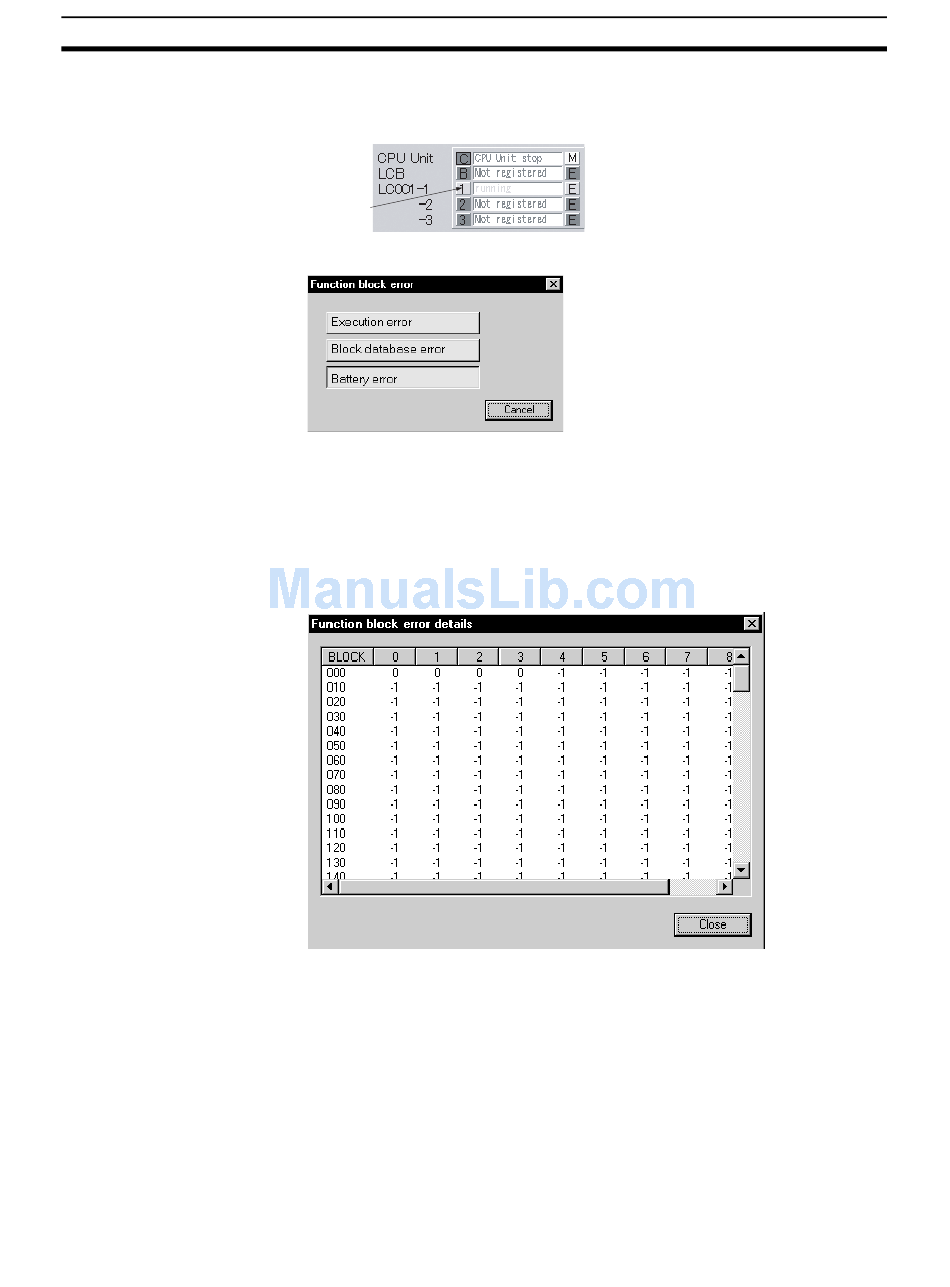

1. Click the E Button.
Click here.
The Function Block Error Dialog Box will be displayed.
Note A Block database error indicates an error has occurred in the func-
tion block database.
The Function Block Error Dialog Box is displayed in green during normal
operation, and red if there is an error.
2. Click the Execution Error or the Block Database Error button (Battery
Error is displayed only and cannot be selected).
The Details of Function Block Error Dialog Box will be displayed.
0 = Normal (no errors), –1 = Block number not in use, 90 = Relevant Function
Block has a database error.
0 = Normal (no errors), –1 = Block number not in use, other numbers (1 to 89)
= Error code.
The following table gives the function error codes.
