Screen Configuration
Registering Trend Screens
1,2,3...
186

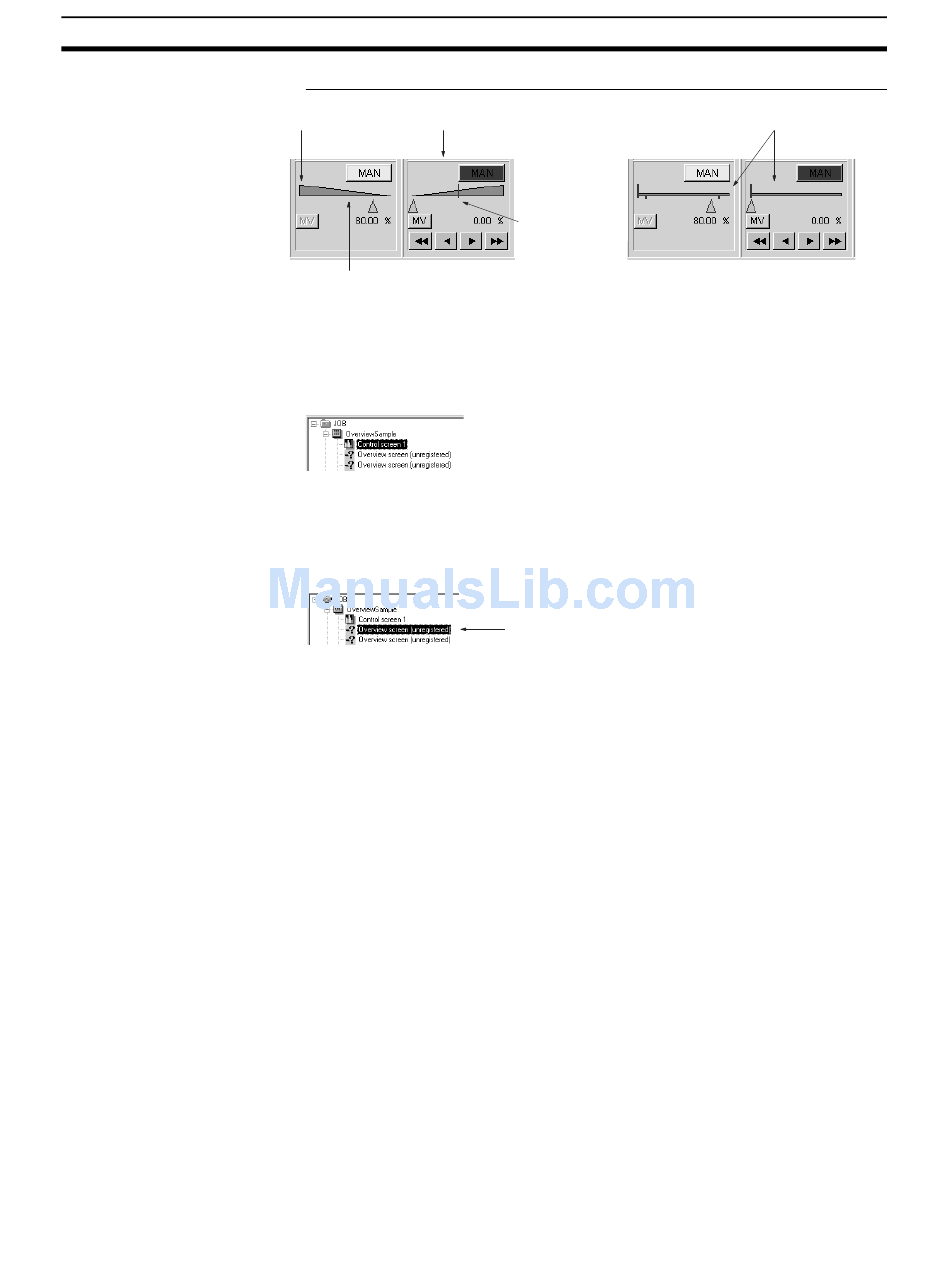

MV Adjustment Area Display in the Lower Part of the Instrument Diagram
MV open direction MV open direction
enabled (0% side) enabled (100% side)
Manual Pointer
disabled
4. Enter the Screen Name, set the Tag No. and Detailed Settings, the click the
OK Button.
The Control Screen will be registered, and the Screen Name you have en-
tered will be displayed on the Screen Management Tree.
You can register up to 60 Realtime Trend Screens, and up to 120 Historical
Trend Screens.
1. Select the Overview Screen's sub-element Screen in the CRT Builder's
Screen Management Tree.
2. In the Settings Menu, select Register Screen, or double-click Screen.
The dialog box shown in Step 2 of the preceding section, Control Screen
Registration, will be displayed.
3. Select the Trend Screen, and then click the New Button.
The following dialog box will appear.
You can register a maximum to eight analog ITEMs (PV, SP, MV, or other
analog signals), or eight contact ITEMs in the Trend Screen. Specify ana-
log ITEMs or contact ITEMs using either a) or b) below.
a. Tag name and relevant Tag ITEM (either PV, SP, or MV) corresponding
to the function block.
b. The tag name corresponding to the analog ITEM or contact ITEM.
Manual
Pointer
enabled
Click to select. Double-click to omit
Step 2 of the operation.
Section 5-5
MV open direction
disabled
Manual ON
