Screen Configuration
Switch the page number.
Click the buttons to move up and down
the table of registered tag names.
The < and > Buttons will change the
tag numbers by 10 at a time and the
<< and >> Buttons will change the tag
numbers by 100 at a time.
You can register up to 1,000 contact ITEMs in the Operation Guide Mes-
sages. Specify the contact ITEM using the tag name.

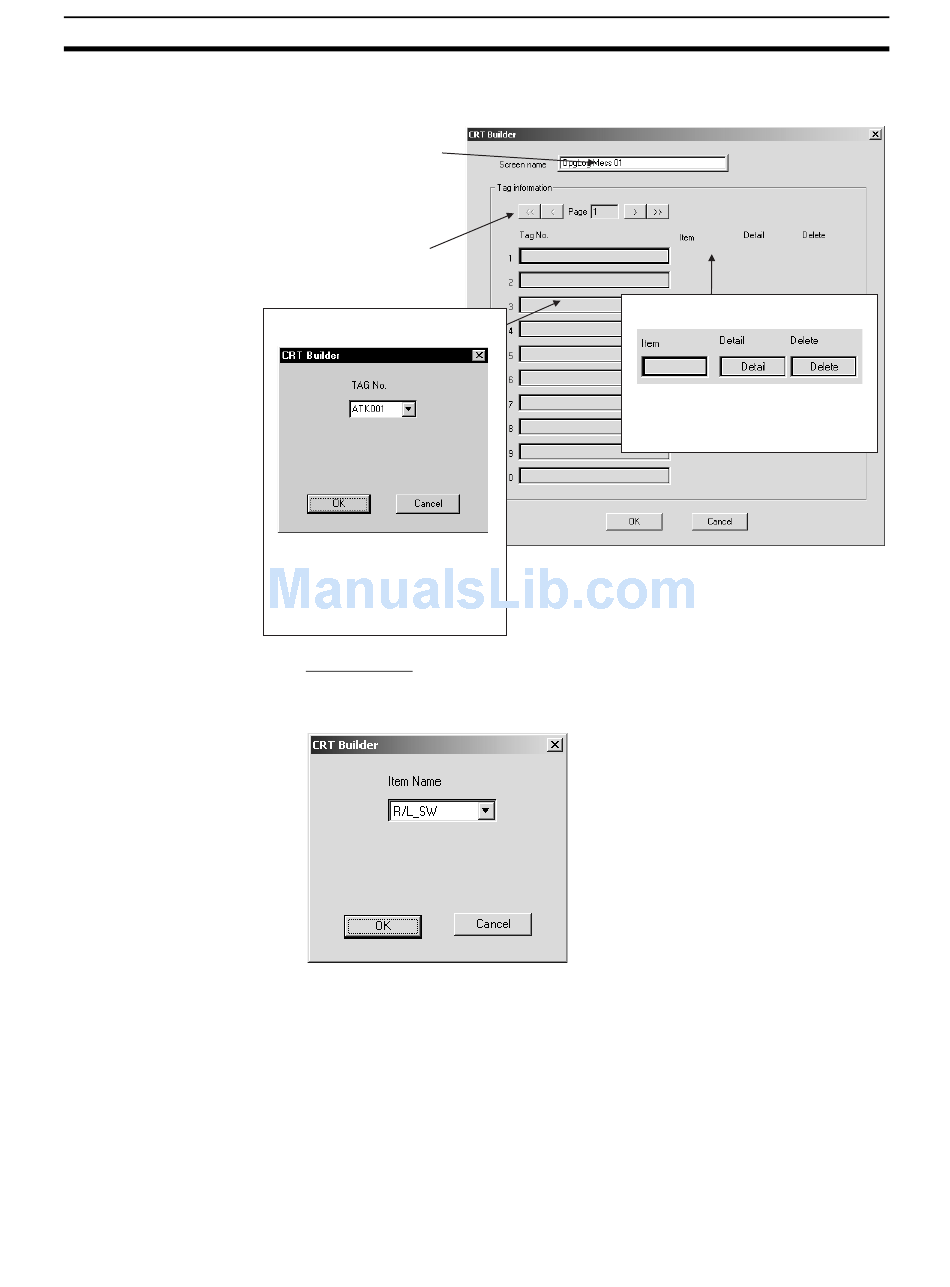

Enter the name of the Overview
Screen using 16 characters.
Select the box. The following dialog box
will be displayed.
Select a) the tag name for the function
block (including the contact ITEMs you
want to register), or b) the tag name for the
for the contact ITEMs you want to register.
In this example, the tag name for the func-
tion block for a) has been specified.
Setting Items
Select the tag name, and then click the ITEM Button. The following dialog box
will be displayed.
Select the Tag ITEM corresponding to the contact ITEM you want to set. In
this example, Tag ITEM "R/L_SW" for the Function Block for tag name
ATK001 has been selected. Next, click the OK Button.
Section 5-5
Select the tag name to display the Details
Button as shown.
Refer to the next page for how to set ITEM
and Detailed Settings.
Click the Delete Button to delete the regis-
tered Tag information.
