Control Screens
Note
4-7-2

Basic Displays and Operations

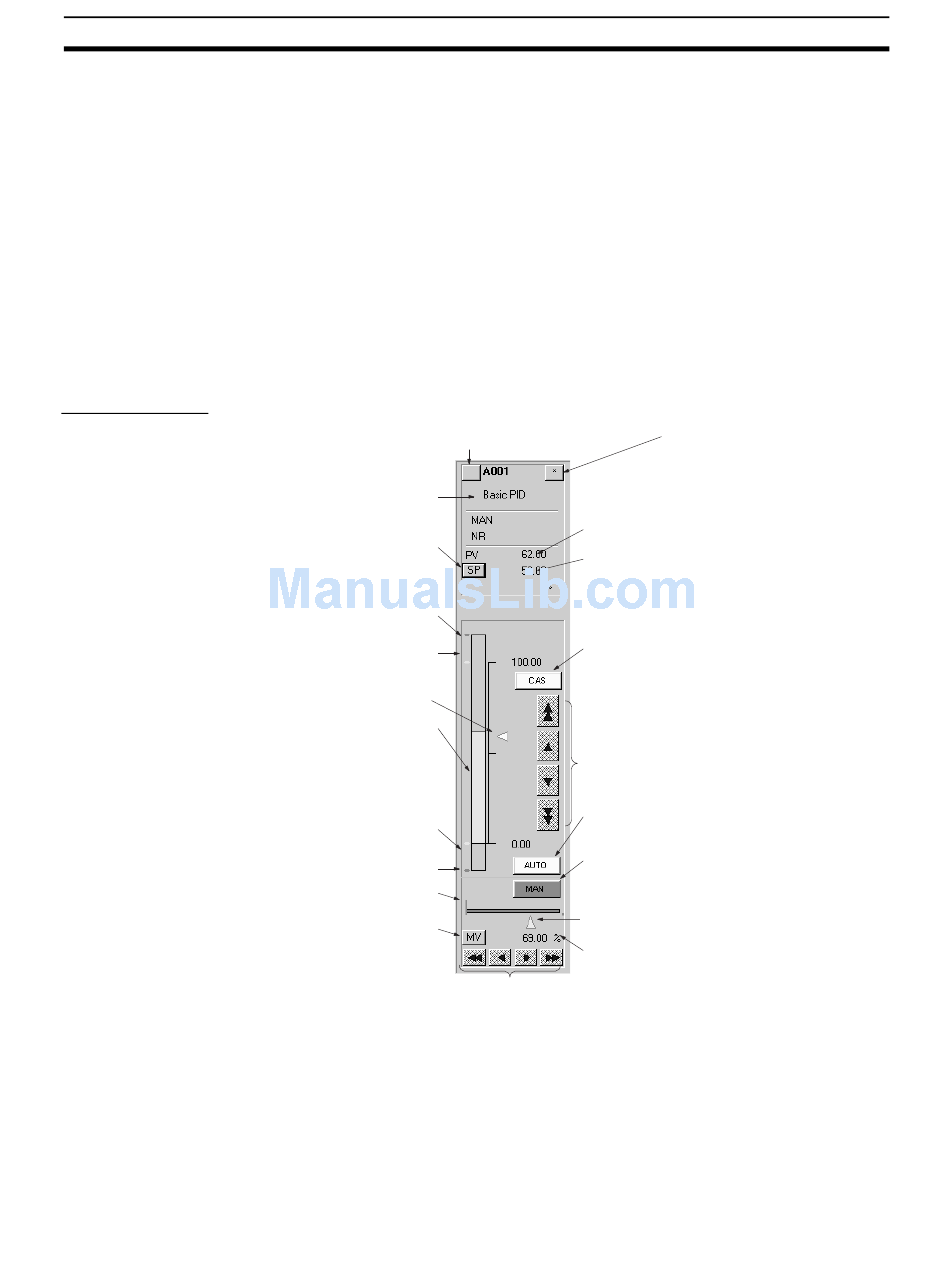

Basic PID (011)
PV Bar Display
1. When the SP setting (local only, or remote/local both possible) for
ITEM024 for Basic PID, Advanced PID, Indication and Setting, Ratio Set-
ting, 2-position ON/OFF, and 3-position ON/OFF is 1 (remote/local both
possible), CAS is displayed. If the setting is 0 (local only), nothing is dis-
played.
2. When the SP setting (local only, or remote/local both possible) for
ITEM024 for Basic PID, Advanced PID, Indication and Setting, Ratio Set-
ting, 2-position ON/OFF, and 3-position ON/OFF is 1 (remote/local both
possible), CAS is displayed, and settings can be made.
3. When set to remote, only auto is possible; manual is disabled (this limit
only applies to CX-Process Monitor Plus).
4. Analog signals are not possible.
Click this button to move to the Tuning
screen. See 4-8 Tuning Screens for details.
Tag comment
SP Change Button
HH (High/High Alarm)
H (High Alarm)
Displays SP position
PV bar display
L (Low Alarm)
LL (Low/Low Alarm)
Manual Pointer
MV Change Button
Up/Down Buttons to
change MV
Displays the PV range from upper to lower limit as a bar.
Green: Status normal
Red: PV Alarm (either HH, H, L, LL)
Yellow: Deviation Alarm
Blue: Alarm OFF
Light blue: Function block calculations stopped
Click this button to display the Set
Label Dialog Box.
PV numerical value display
SP numerical value display
Remote/local switch
Up/Down Buttons to change SP
Switch to AUTO Button
Switch to MAN Button
Display MV position
Display MV
numerical value
Section 4-7
83
