Screen Configuration
Registering Control Screens
1,2,3...
184
6. Select Yes in the Create New DB field and click the Execute Button.
When the Run Button is clicked in the Main Window, initialized Monitor Tag
files will be created at the specified path, and the application path will
change to the specified one (i.e., the Monitor Tag files used by CX-Process
Monitor Plus will change to the newly created ones).
Note (a) Several files are created. Therefore, if a folder that is used only for
Monitor Tag files is not specified, the Monitor Tag files will be cre-
ated in the same folder as other files.
(b) Empty files are created when Yes is selected in the Create New
DB field. Therefore, Monitor Plus must be restarted by selecting
Execute - Output Tag File - Monitor Plus Tag from CX-Process
Tool.
(c) Some time is required until the new DB is created.
To return the Monitor Tag files that are use to the ones at the original path,
select No in the Create New DB field and click the Execute Button. The
application path will change to the original one (i.e., the files that CX-Pro-
cess Monitor Plus uses will change to the ones corresponding to the orig-
inal path.) If, however, there are no Monitor Tag files at the specified path,
an error will occur when the monitor process is started (i.e., when the Run
Button is clicked in the Main Window or in the Setup Dialog Box).
Note Specifying No in the Create New DB field is used to return the ap-
plication path to the original one after it has been changed by spec-
ifying Yes in the Create New DB field.
1. Select Screen in the Overview Screen sub-elements using Screen Man-
agement Tree in CRT Builder.
2. From the Settings menu, select Register Screen, or double-click Screen.

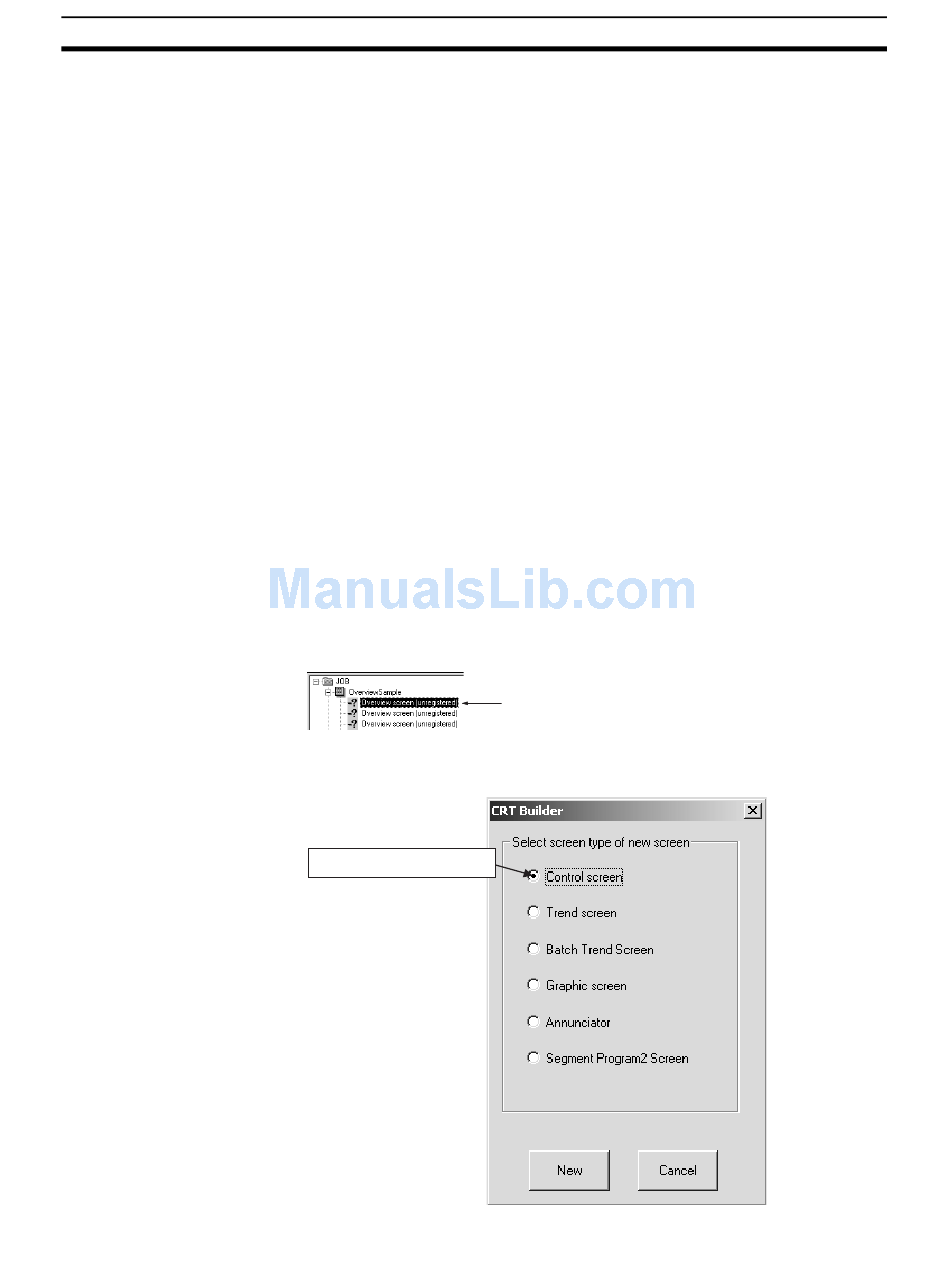

The following dialog box will be displayed.
Select Control screen
Click to select. Double-click to omit Step
2 of the operation.
