System Monitor Settings
Note
Note
146
3. Select the device (PLC or computer), and then make the appropriate set-
tings.

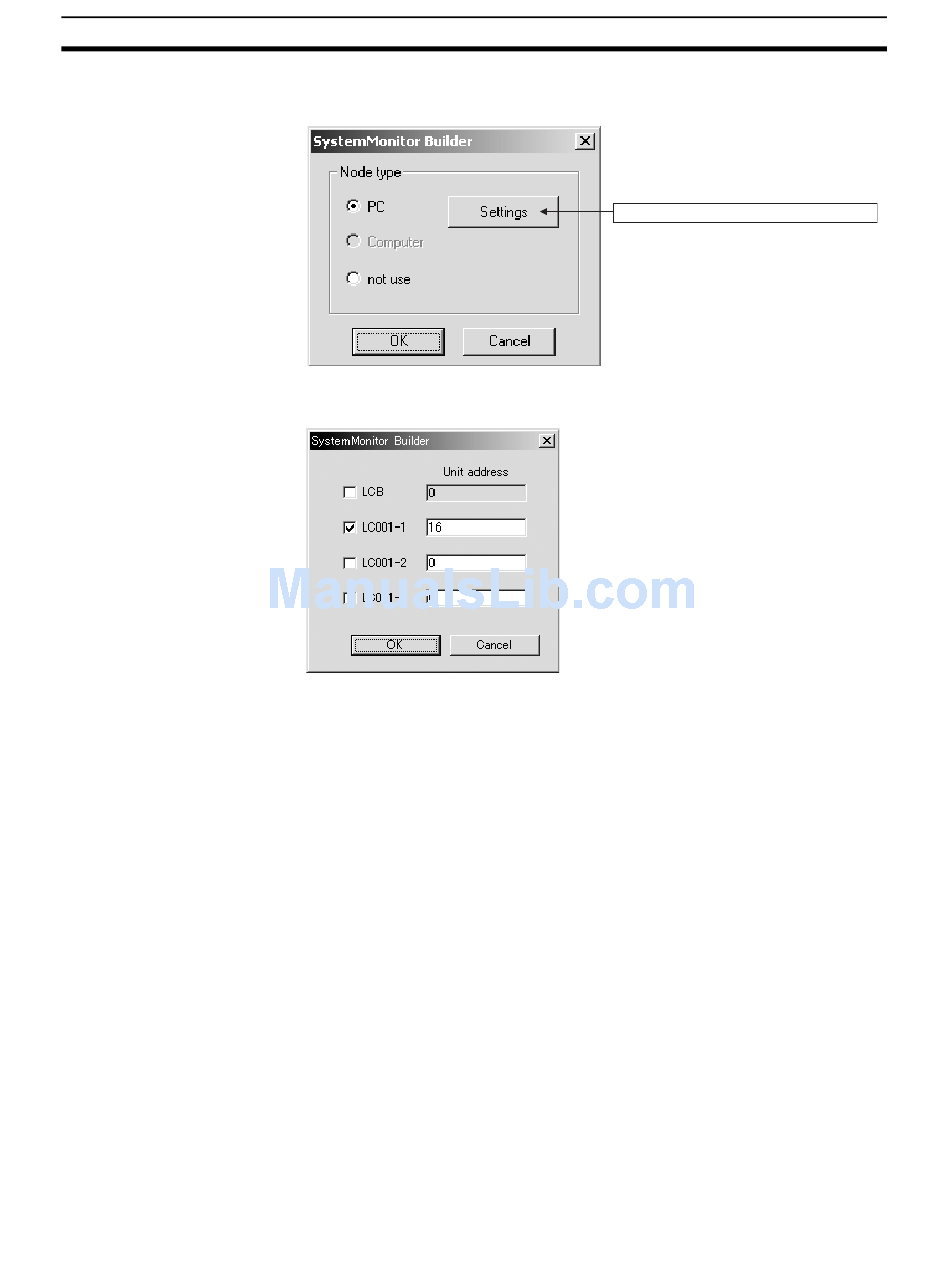

4. When PC has been selected as the node type, click the Settings Button.
The following dialog box will be displayed. Make the setting as shown.
When using more than one Loop Control Unit in the same PLC, set the unit
addresses and function numbers in ascending order.
You can connect one Loop Control Board and up to three Loop Control Units
to one PLC. Select the check box for the Loop Control Unit/Board mounted to
the PLC, and enter the unit address.
The unit address of the Loop Control Board is always 225.
Click the OK Button to return to the Set Node Dialog Box.
The unit address for each node set here can be used only from the System
Monitor Screen. Which Loop Control Unit/Board's data and which PLC CX-
Process Monitor Plus will be accessed depends on the network address,
node address, and unit address set using the CX-Process Tool. (This is linked
to the tag information.) The unit address of the Loop Control Board is always
225.
5. Click the Communication type setting Button. The following dialog box
will appear.
Section 5-3
Select PLC to enable the Settings Button.
