Creating Graphic Screens

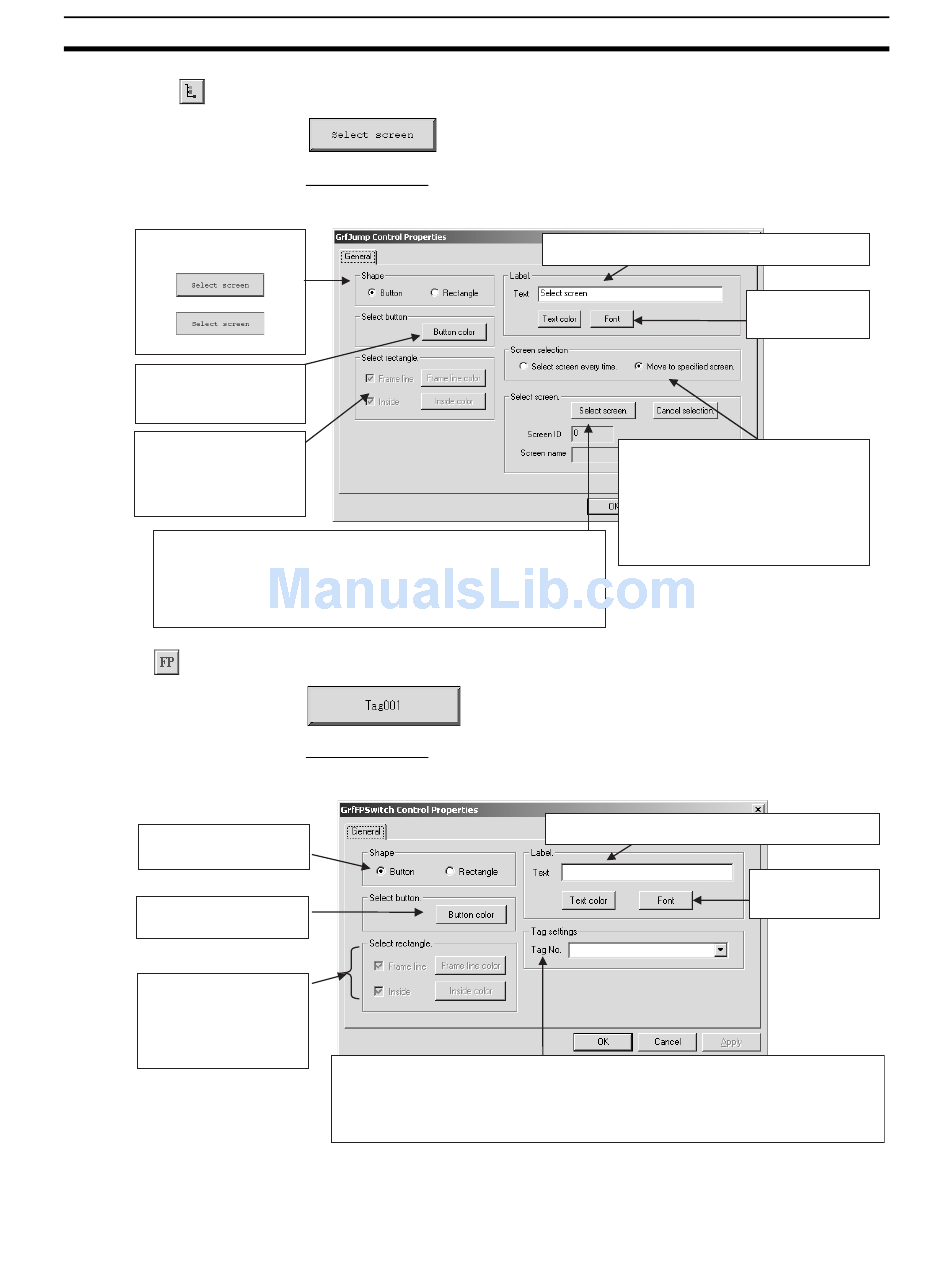

Screen Jump ( )
Select the shape for the
jump object.
Button
Rectangle
If Button is selected for the
shape, select the color for
buttons on the screen.
If Rectangle is selected for
the shape, select whether
rectangle frame lines and
inside fill are to be used,
and if so, select the colors.
If Select screen every time is specified for the screen selection type, click
the jump object to set the destination screen.
Before this setting is made, the destination screen must be registered in
advance in the Builder Window. For details on registering screens, refer
to 5-5-2 Overview of Screen Registration.
FP Switch ( )
Select the shape for the
FP switch.
Select the color for the top
of the button.
If Rectangle is selected for
the shape, select whether
rectangle frame lines and
inside fill are to be used,
and, if so, select the
colors.
Used to change the display to a specified screen.
Setting Method
General Tab
Used to display specified faceplates as pop-ups on Graphic Screens.
Setting Method
General Tab
When the FP switch is clicked, select by tag name the faceplate that is to be displayed.
Note: If a tag that is not registered to the Control Screen is selected, nothing will be
displayed even if the FP switch is clicked.
For details on faceplate settings, refer to 5-5-2 Overview of Screen Registration.
Input the text to be displayed on jump objects.
Select the jump object operation.
Select screen every time:
Move to a screen selected from a
dialog box.
Move to specified screen:
Move to a screen specified in
advance.
Input the text to be displayed on the FP switch.
Section 5-4
Set the color and
font for the text.
Set the color and
font for the text.
