Screen Configuration
Setting Auto-saving of
CSV Files
Note
Registering Graphic
Screens
Note

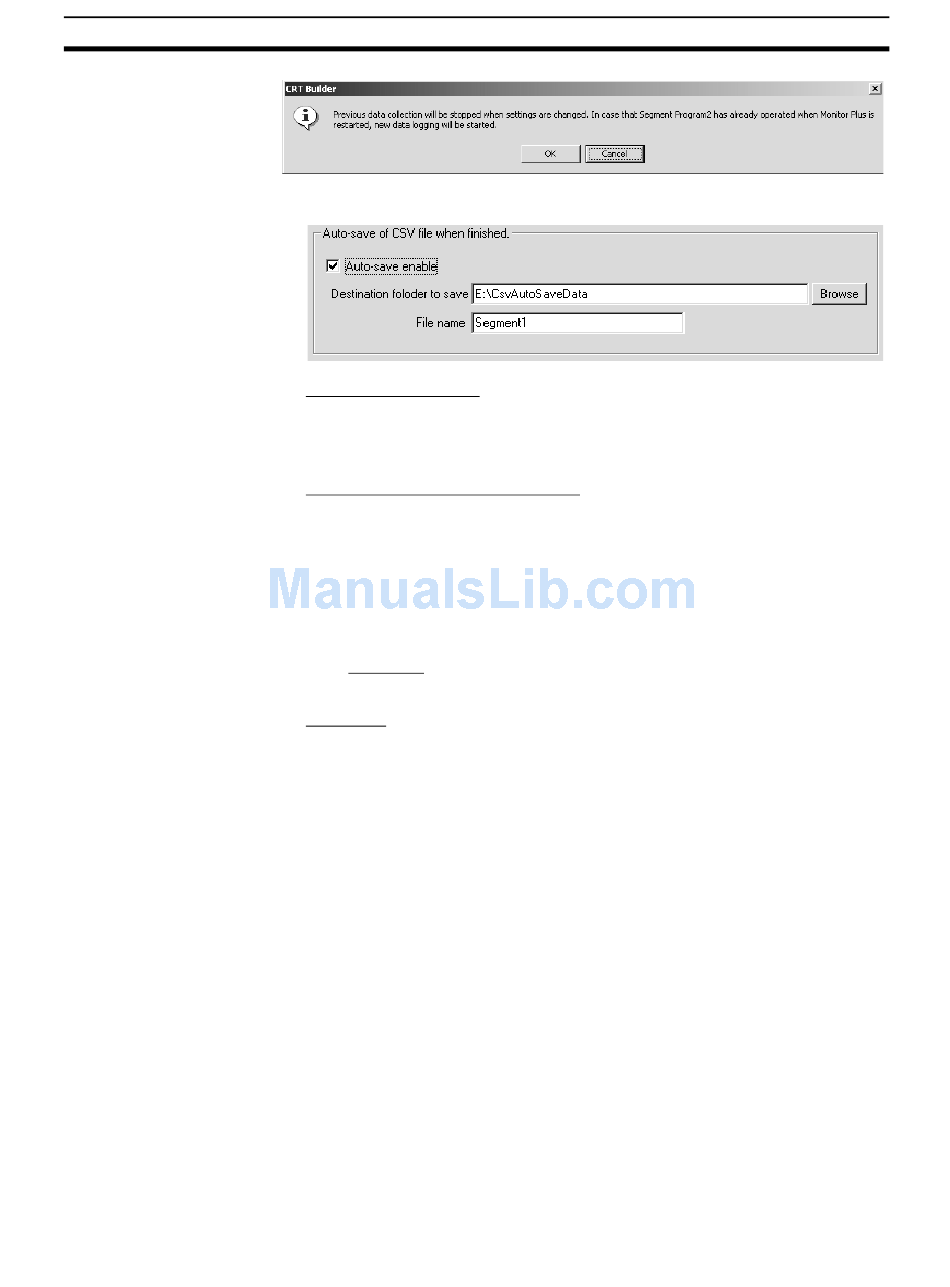

The CSV file auto-save function is described below.
Enabling Auto-saving
When Auto-save enable is selected, a CSV file is automatically created when
operation of the relevant Segment Program 2 Block is stopped, i.e., when S1
(ITEM 013) turns OFF.
Destination Folder for Saved Files
Specify the destination folder for saved files in the Destination folder to save
Box.
The folder can be found by using the Browse Button. Within the destination
folder, folders will be automatically created for the dates on which the batch
collections are started, and the CSV files will be saved in those folders.
For example, if the destination is C:\Segment, and the data collection was
started on December 1, 2006, the folders will be created under C:\Seg-
ment\20061201\. (The underlined portion is the date on which the data collec-
tion was started.)
File Name
Specify the name of the file to be saved. (Note: Do not specify the file name
extension here.)
The actual name of the file that is saved will be as follows:
start_date-start_time- filename.csv
(The start date and the start time are the time information for when the seg-
ment data collection was started for the file that is being saved.)
For example, if the name of the file being saved is Segment, and the data col-
lection was started at 16:15:10 on December 1, 2006, the file name
20061201-161510-Segment.csv will be created automatically.
If the data in a single CSV file exceeds 65,000 lines, another CSV file will be
created. The CSV files will be saved in order with _01.CSV, _02.CSV, etc.,
added at the end of the file name.
You can register up to 200 Graphic Screens.
Before registering the Graphic Screen, you must create and save the Graphic
Screen using the Graphic Builder Button. Refer to 5-4 Creating Graphic
Screens for how to create a Graphic Screen.
The registration procedure is as follows:
