Installation
1,2,3...
Uninstall the CX-Process Monitor.
Install the CX-Process Monitor Plus.
Copy the Converted Data.
Redo the Graphic Screen
Data Settings.
1,2,3...
44
1. Start the Trend DB Conversion Utility. The Trend DB Conversion Utility is
stored at the following location:
CD-ROM drive: \MonitorPlusUpDate\UpDatePlusV2.exe

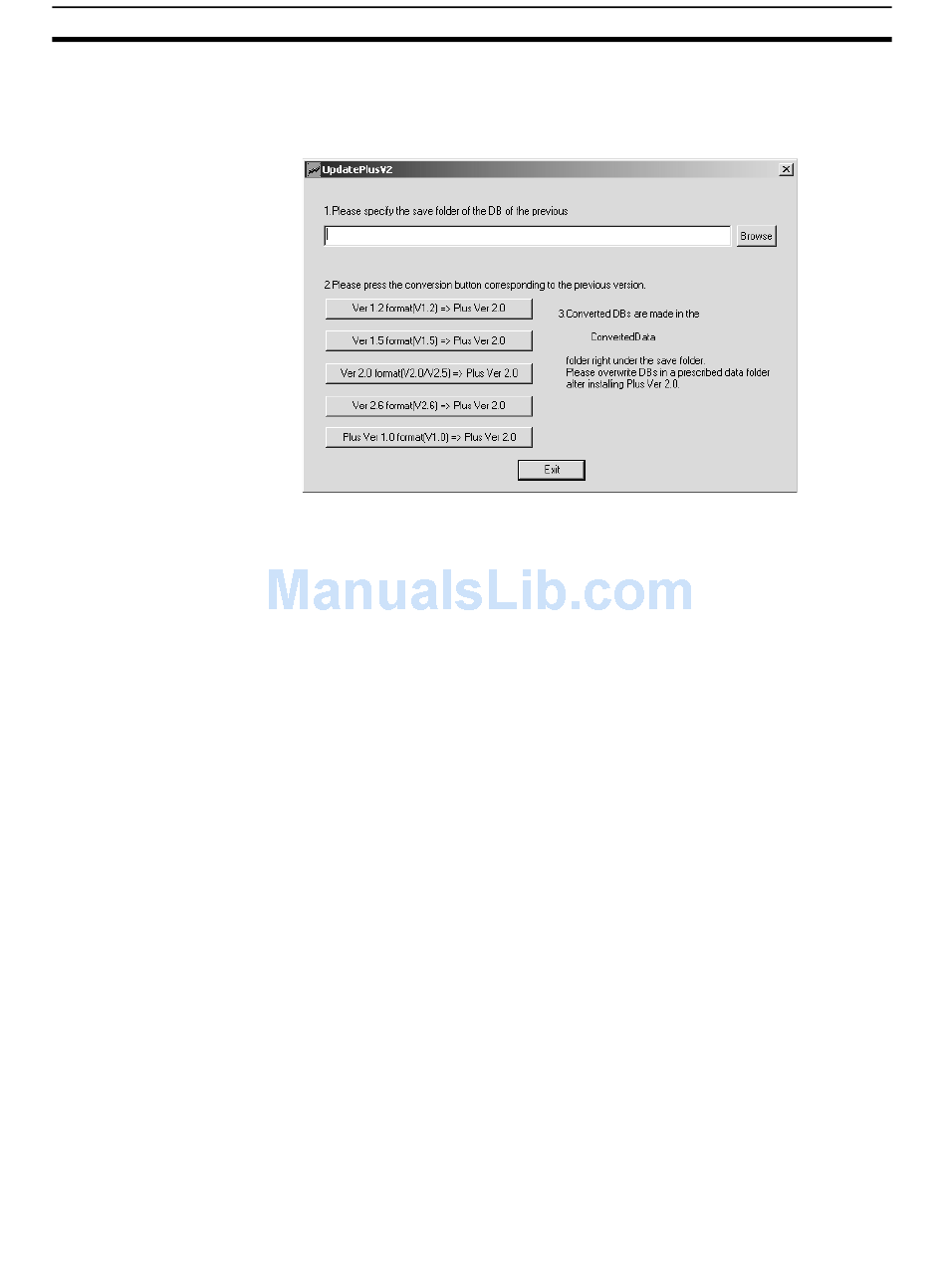

The following window will be displayed.
2. Click the Browse Button and specify the folder where the CX-Process
Monitor database was moved earlier in this procedure.
3. Click the conversion button corresponding to the CX-Process Monitor ver-
sion confirmed earlier in this procedure.
• Monitor Version 1.2:
Ver 1.2 format (V1.2) → Plus Ver 2.0
• Monitor Version 1.5:
Ver 1.5 format (V1.5) → Plus Ver 2.0
• Monitor Version 2.0 or 2.5:
Vers 2.0 format (V2.0/V2.5) → Plus Ver 2.0
• Monitor Version 2.6:
Ver 2.6 format (V2.6) → Plus Ver 2.0
Note Some data cannot be converted by the Trend DB Conversion Utility. Refer to
2-1-7 CX-Process Monitor Plus Conversion Specifications for details on con-
version specifications when converting to CX-Process Monitor Plus.
When the CX-Process Monitor database was converted, a folder called Con-
vertedData will have been created in the folder where the CX-Process Monitor
database was moved earlier in this procedure. Copy all of the files in this
folder, including the GRF folder and all files in the GRF folder, and paste them
in the newly installed CX-Process Monitor Plus database folder, overwriting
any files already there. (The default for the CX-Process Monitor Plus data-
base folder is C: \Program Files\Omron\CX-Process Monitor Plus\DB.)
If Graphic Screens are being used, the Graphic Screen data must be reset in
the CX-Process Monitor Plus.
1. Start the CX-Process Monitor Plus.
2. Start the Graphic Builder and update the file information using the com-
mand on the File Menu.
Section 2-1
