Stopping The Cx-Process Monitor Plus - Omron CX-PROCESS MONITOR PLUS V2 - 01-2007 Operation Manual

Starting and Stopping the CX-Process Monitor Plus
4-4-2

Stopping the CX-Process Monitor Plus

Note
To stop the CX-Process Monitor Plus, click the Close Button at the top right of

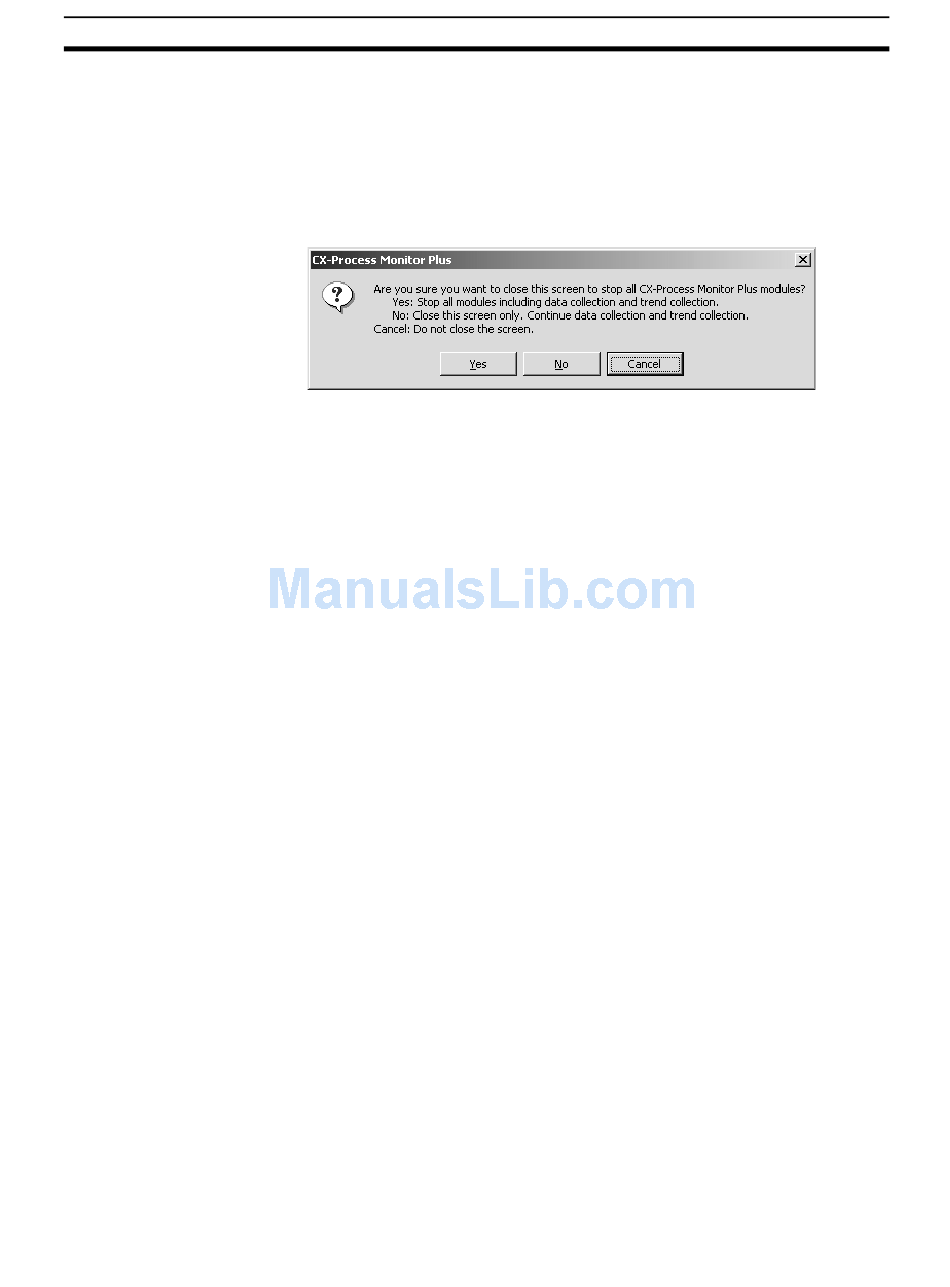

the Overview Screen. If a monitoring process, such as data or trend collec-
tion, is in progress, a dialog box will be displayed to confirm that the process is
to be stopped.
Select Yes to end the monitor process. Select No to continue running the
monitor process.
Stopping a Monitoring Process That Was Continued:
Use the following procedure to stop a process that was continued by clicking
the No Button in the above dialog box.
1. Start the CX-Process Monitor Plus.
2. Click the Exit Button in the CX-Process Monitor Plus Main Window. The
dialog box will again be displayed to confirm that the process is to be
stopped. Click the Yes Button.
The CX-Process Monitor Plus will be closed and the monitoring process
will be stopped.
Section 4-4
79
