System Monitor Screens

4-17-3 Backing Up Data during Operation

Procedure
1,2,3...
132
• Loop Control Unit is running.

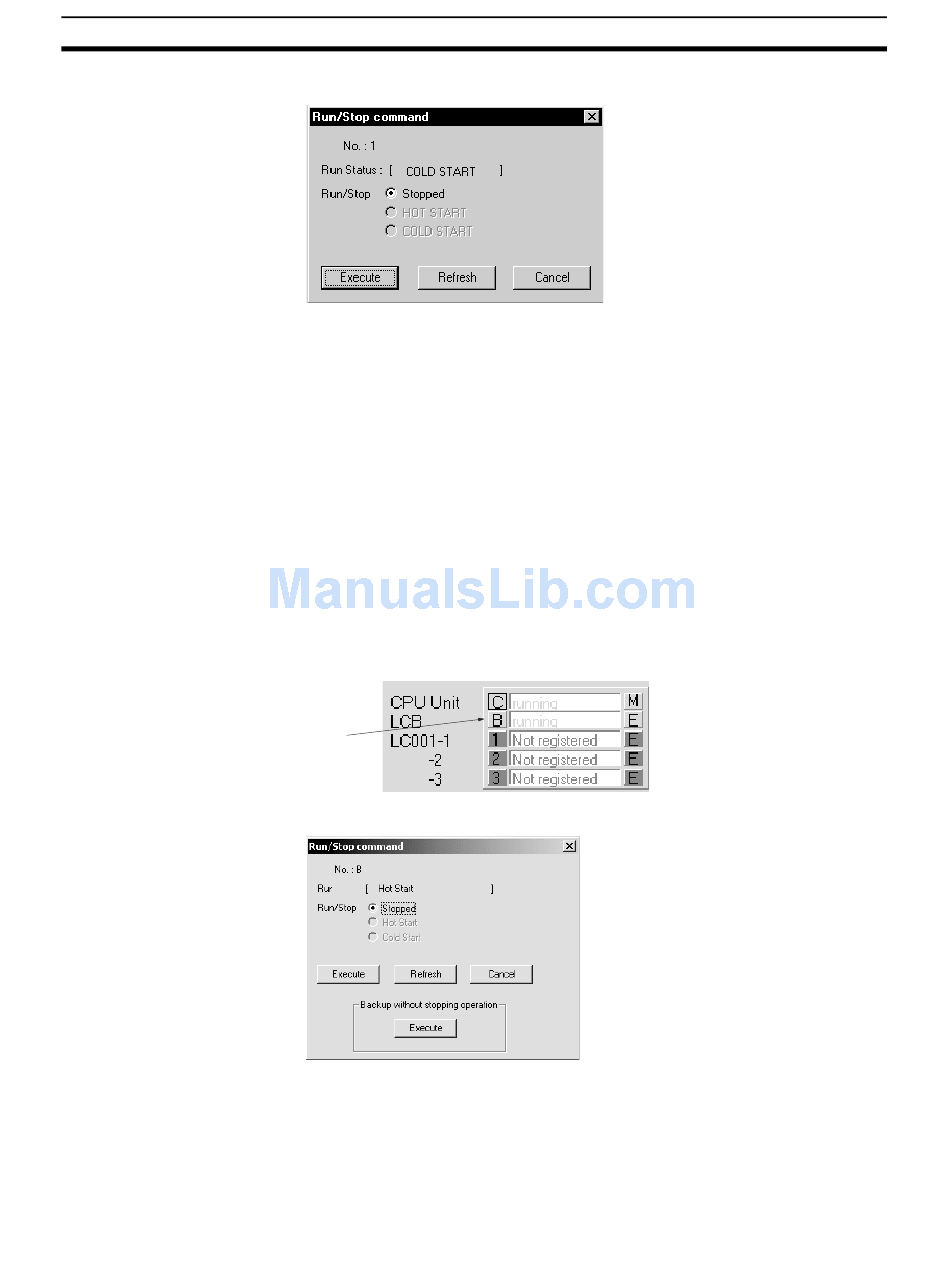

2. Select Stop, HOT START, or COLD START, and then click the Execute
Button.
Click the Refresh Button to check and redisplay the run status of the Loop
Control Unit.
With the LCB01/05 (Version 1.50 and later), LCB05D, or LCB03, data can be
backed up during operation from the Run Command Dialog Box.
Function block data in the RAM in the Loop Control Board is backed up to the
flash memory in the Loop Control Board without interrupting operation.
An entry will be added to the system monitor log to indicate a backup opera-
tion was performed during operation.
1. Click the button (here B) for the Loop Control Board for which data is to be
backed up.
Click
2. Display the Run/Stop Command Dialog Box.
Section 4-17
