Omron CX-PROCESS MONITOR PLUS V2 - 01-2007 Operation Manual page 129

Segment Program 2 Screens
Checking Step Data
1,2,3...
Changing the Vertical Axis
Display
1,2,3...
114

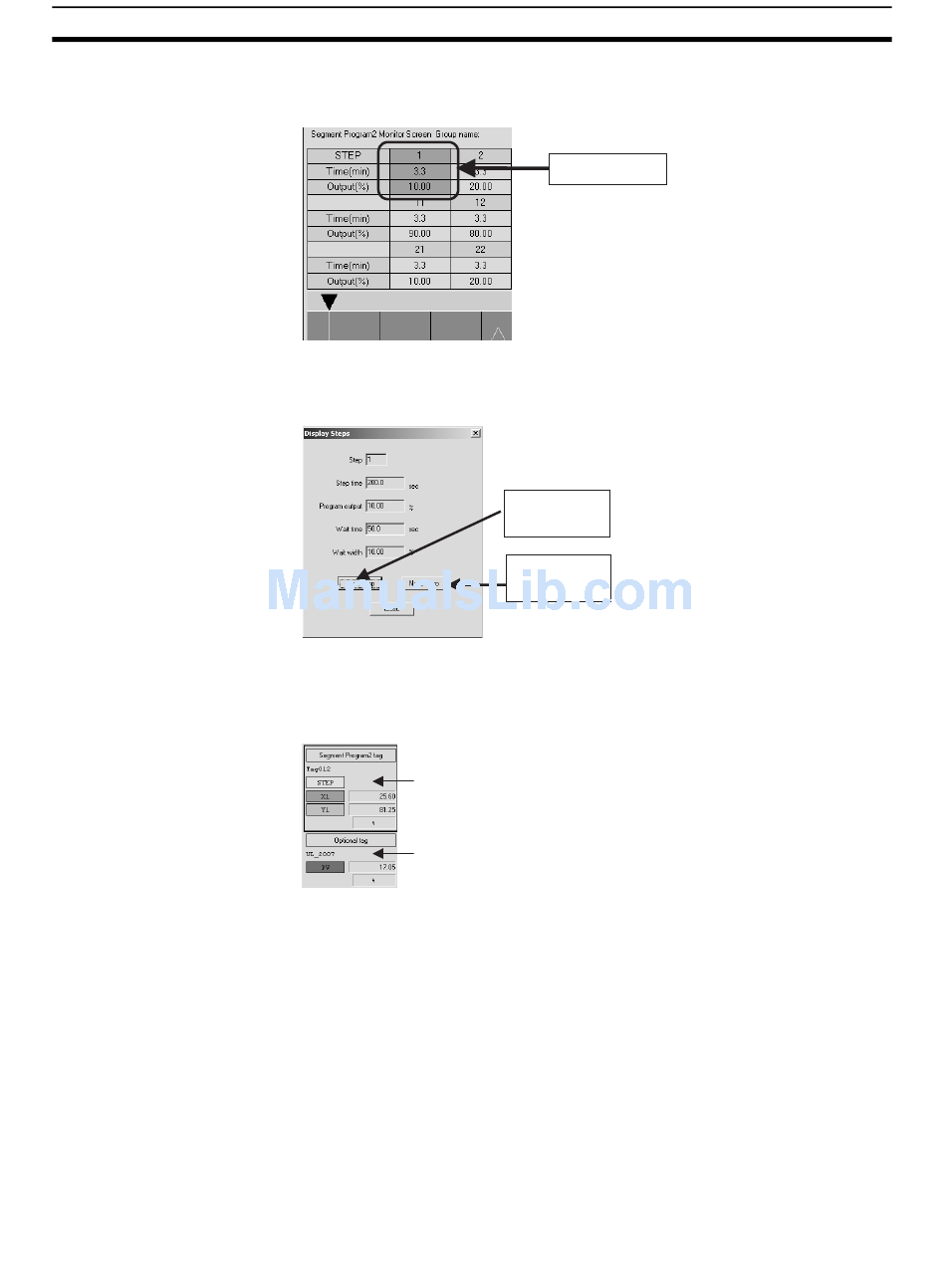

1. Click the step data section in the table.
2. The Display Steps Dialog Box will be displayed.
Set values cannot be changed from this dialog box. To change set values,
use the Segment Program 2 Edit Screen.
The Segment Program 2 Monitor Screen vertical axis display can be changed
for each Segment Program 2 tag or optional tag.
1. Click the data display area of the Segment Program 2 Monitor Screen.
Click to change the vertical axis display for
a Segment Program 2 tag.
Click to change the vertical axis display for
an optional tag.
2. With the data display area selected, double-click the vertical axis of the
graph.
Click here.
Displays the
previous step
data.
Displays the next
step data.
Section 4-11
