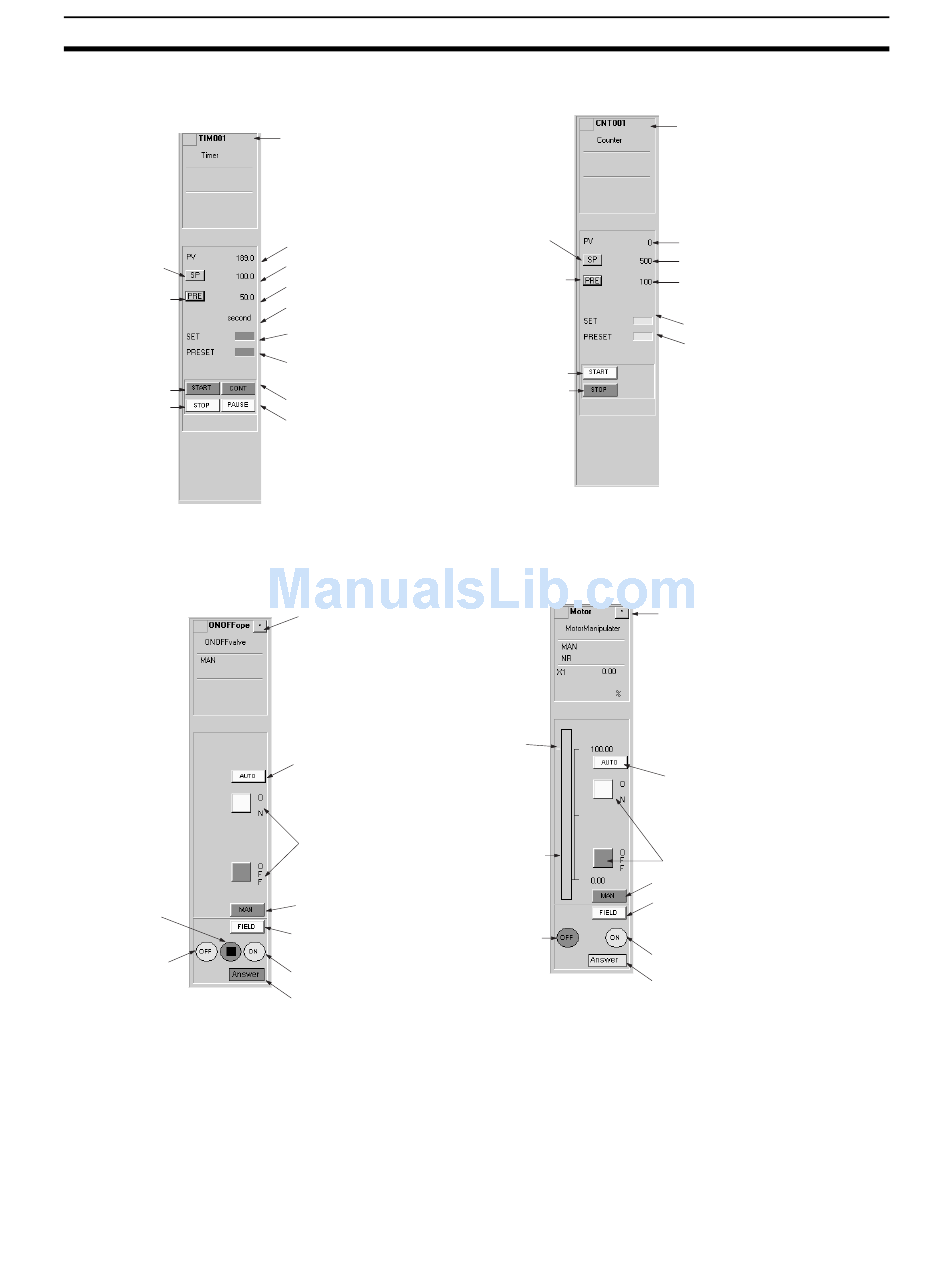

Control Screens
Timer (205)
SP (Set Value)
Change Button
Prediction Value
Change Button
Run Command
Button
Stop Command
(Timer Reset)
Button
ON/OFF Valve Manipulator (221)
Valve open midway
(U3) indicator
Limit switch closed
indicator
Click this button to display
the Set Label Dialog Box.
SP (Set Value)
Change Button
Numerical display of time elapsed
Set value display
Prediction Value
Prediction value display
Change Button
Time unit display
Indicates arrival at
set value
Indicates arrival at
prediction value
Operation Restart Button
Operation Interrupt Button
Click this button to display
the Set Label Dialog Box.
Switch to AUTO Button
ON/OFF Buttons
Switch to MAN Button
Manipulation site (S4)
Answer output
selection indicator
(S5 = OFF)
Indicates when limit
indicator
switch is closed (S6)
Valve action time
error (U2) indicator
Counter (208)
Run Command
Button
Stop Command
(Counter Reset)
Button
Motor Manipulation (222)
CT input
high alarm
Bar display
for CT input
PV Bar Display
Displays the PV range from upper to lower limit as a bar.
Green: Status normal
Red: Alarm (H)
Section 4-7
Click this button to display
the Set Label Dialog Box.
Count display
Set value display
Prediction value
display
Indicates arrival at
set value
Indicates arrival at
prediction value
Click this button to display
the Set Label Dialog Box.
Switch to AUTO Button
ON/OFF Buttons
Switch to MAN Button
Manipulation site (S4)
selection indicator
Answer input
(S5 = ON) indicator
Answer error (U2) indicator
