Data Exchange Method
Monitoring Bits from
Monitor Plus
1,2,3...
When setting data, select the Set Option.
3. Use Monitor Plus to specify the Internal Switch's tags for Monitor Plus and
write the data to the Internal Switch's bits through the CPU Unit's data ar-
ea.
4. Use the Contact Distributor (Block Model 201) to write each internal
switch's bit data to the specified function block's bits.
5. In the end, the bits will be set to the function block's contact input ITEMs.

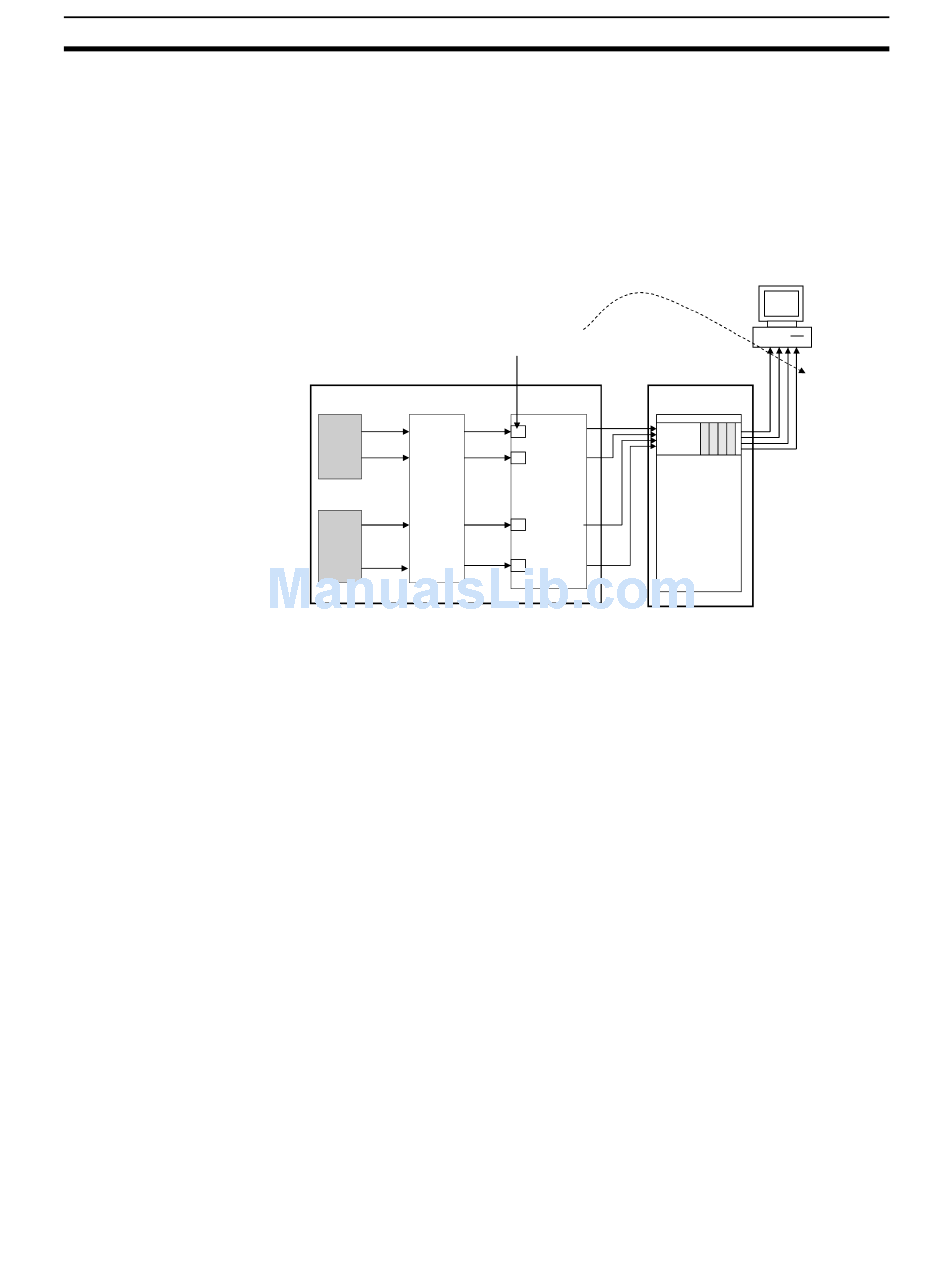

Loop Control Unit or Board
Function Contact
block Distributor
(Block
Model 201)
Function
block
1. Connect the Contact Distributor (Block Model 201) as the source for the
function block's contact input ITEM that you want to monitor. At the same
time, output (connect) from the Contact Distributor (Block Model 201) to
the Internal Switch (Block Model 209).
2. Set the tags for Monitor Plus in the Internal Switch (Block Model 209). Set
a tag name for each ITEM (S1 to S8).
Set tags for Monitor Plus.
(Select Display to read data.)
Internal
Switch
(Block
Model 209)
Section 3-1
Monitor Plus
CPU Unit
Specify the tags
for Monitor Plus
I/O memory
and write data.
