Registering the Overview Screen
1,2,3...
Note
This section explains how to register the Overview Screen and set and regis-
ter the sub-elements of the Overview Screen given below.
• Control Screen
• Trend Screen
• Batch Trend Screen
• Segment Program 2 Screen
• Graphic Screen (You must create the Graphic Screen beforehand. Re-
fer to 5-4 Creating Graphic Screens.)
• Annunciator Screen
The Tuning Screen is created automatically when the tag name is allocated.
1. Start CRT Builder, and then in the CRT Builder's Screen Management
Tree, select JOB, and then select Setting, and then select Create Over-
view Screen. The CRT Builder Dialog Box will be displayed.

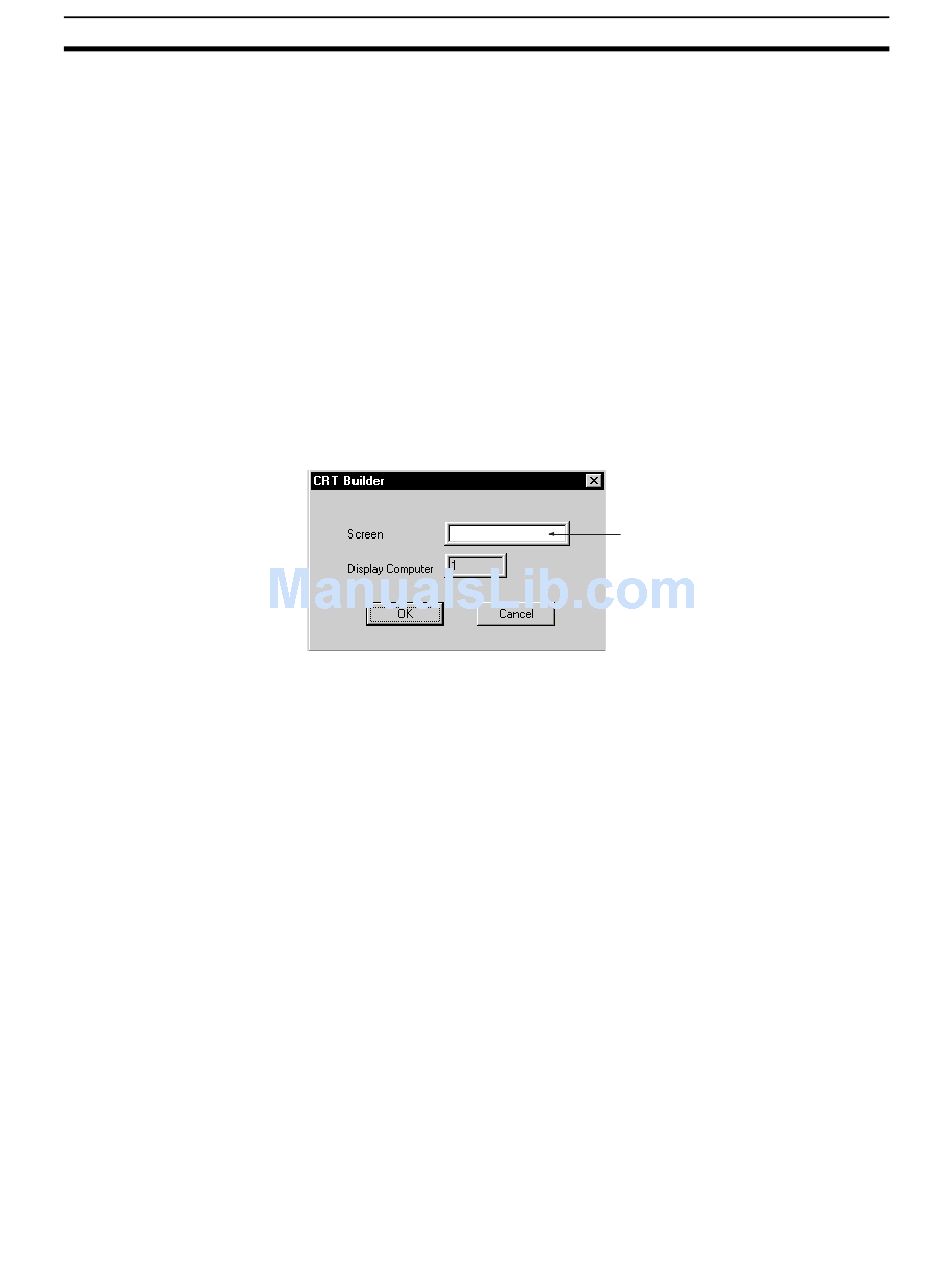

Make sure to enter a name for the Overview Screen. If you do not enter a
name, you will be unable to move to the Overview Screen.
Section 5-5
Enter the name of the Overview Screen
using 8 full-width characters or 16
half-width characters. Make sure to enter
a name for the Overview Screen.
