Creating Graphic Screens
Element
Function block Control Blocks: Basic PID (Block Model 011), Advanced PID (Block Model 012), Blended PID (Block
Model 013), Batch Flowrate Capture (Block Model 014), Indication and Setting (Block Model 031), Indica-
tion and Operation (Block Model 032), Ratio Setting (Block Model 033), Indicator (Block Model 034), 2-
position ON/OFF (Block Model 001), and 3-position ON/OFF (Block Model 002)
Operation Blocks: High/Low Alarm (Block Model 111), Segment Program 2 (Block Model 157), ON/OFF
Valve Manipulator (Block Model 221), Motor Manipulator (Block Model 222), Reversible Motor Manipula-
tor (Block Model 223), Motor Opening Manipulator (Block Model 224), Timer (Block Model 205), and
Counter (Block Model 208)
The following for all function blocks:
Analog input signals (using Input Selector (Block Model 162))
Analog output signals (using Constant Generator (Block Model 166))
Or Analog value parameters(using Constant Generator (Block Model 166))
Contact input signals or contact output signals for all function blocks, or contact value parameters (Con-
tact Distributor (Block Model 201) + Internal Switch (Block Model 209))
Display Analog values: Bar graphs, numerical values, tank level
Contacts: Indicators, pumps, valves, and pipes
Setting Analog values: Numerical values (using Constant Generator (Block Model 166))
Contacts: Switches (using Contact Distributor (Block Model 201) + Internal Switch (Block Model 209))
5-4-2

Procedure for Creating Graphic Screens

Starting the Graphic
Builder
1,2,3...
148
• Screen display objects:
Screen jump objects, FP switch (faceplate pop-up) objects
Function block or ITEM set as send source

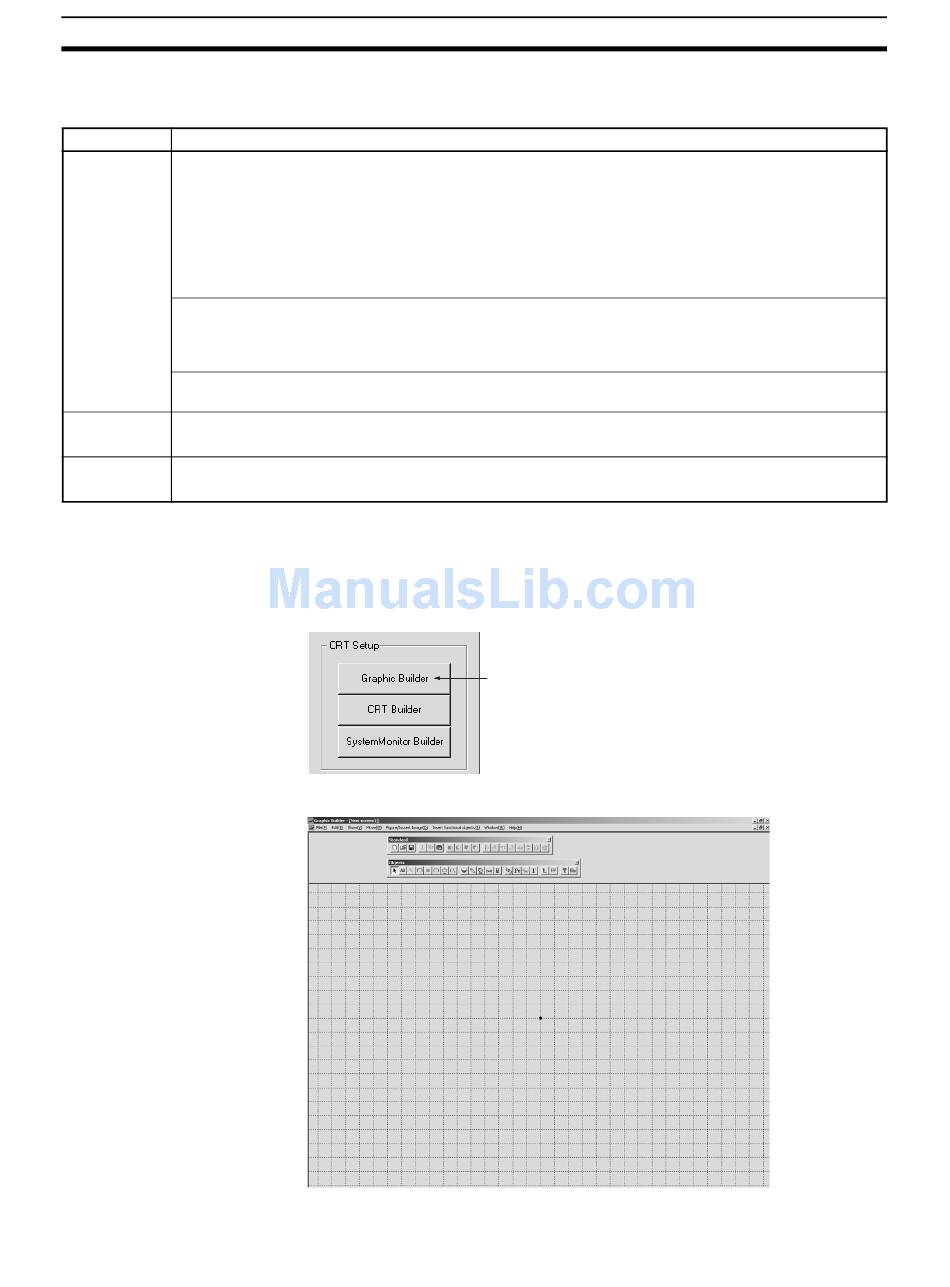

1. In the Setup Dialog Box, click the Graphic Builder Button.
The Graphic Builder will be displayed.
Click here
Section 5-4
