Screen Configuration
Registering Batch Trend
Screens
1,2,3...
A maximum of 120 Batch Trend Screens can be registered.

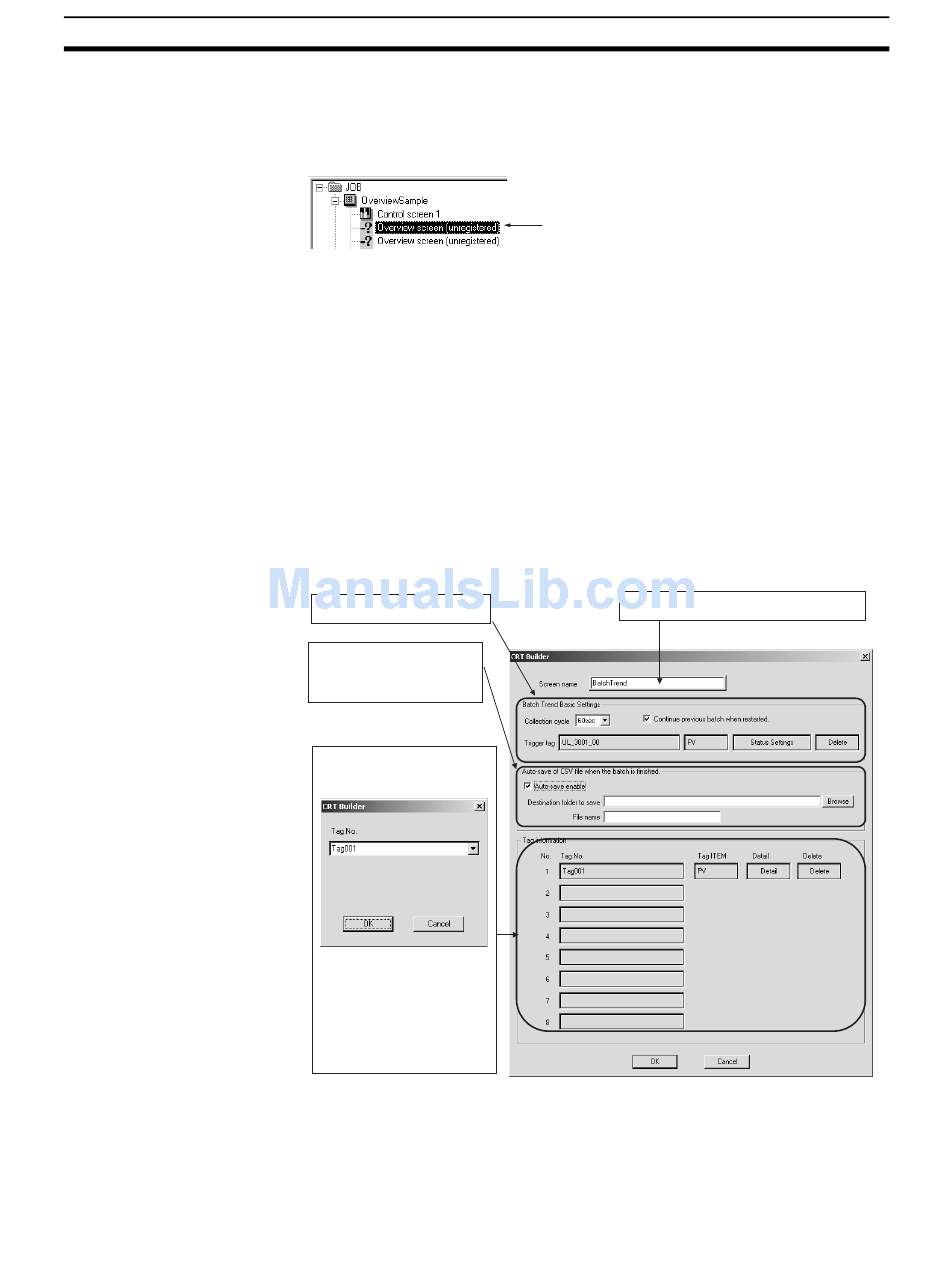

1. Select Screen in the Overview Screen sub-elements using the Screen
Management Tree in the Builder Window.
2. Select Register Screen from the Settings Menu, or double-click Screen.
The dialog box displayed in step 2 of Registering Control Screens, above,
will be displayed.
3. Select Batch Trend Screen and then click the New Button.
The following dialog box will be displayed.
A maximum of eight analog ITEMs (PV, SP, MV, or other analog signals) or
eight contact ITEMs can be registered as data collection ITEMs in a Batch
Trend Screen.
Also, one analog ITEM (PV, SP, MV, or other analog signal) or contact
ITEM can be registered to serve as the trigger for starting batch collection.
Specify analog or contact ITEMs using either method (1) or (2) below.
(1) Tag numbers (tag names) and tag ITEMs (PV, SP, or MV) for the func-
tion block
(2) Tag numbers (tag names) for analog or contact ITEMs
Set the trigger for collecting trend data
and set the collection cycle.
Make the settings for automatically
saving trend data collection results
as CSV files when trend data
collection is finished.
Set the ITEM for data collection in the
Batch Trend Screen.
• Click a box. The following dialog box
will be displayed.
• Select (1) for the tag name for the
function block (including the analog
ITEM to be registered) or (2) for the
tag name for the analog ITEM or
contact ITEM to be registered. In this
example, the tag name for the
function block is specified.
• As shown on the screen to the right,
one tag can be allocated for eight
tag triggers for collection.
Click to select.
Double-click to omit step 2 of the
procedure.
Input the name of the Batch Trend Screen, using up
to 16 characters.
Section 5-5
