System Information Settings
Setting Procedure
1,2,3...
Operation with Key Locks Enabled
1,2,3...

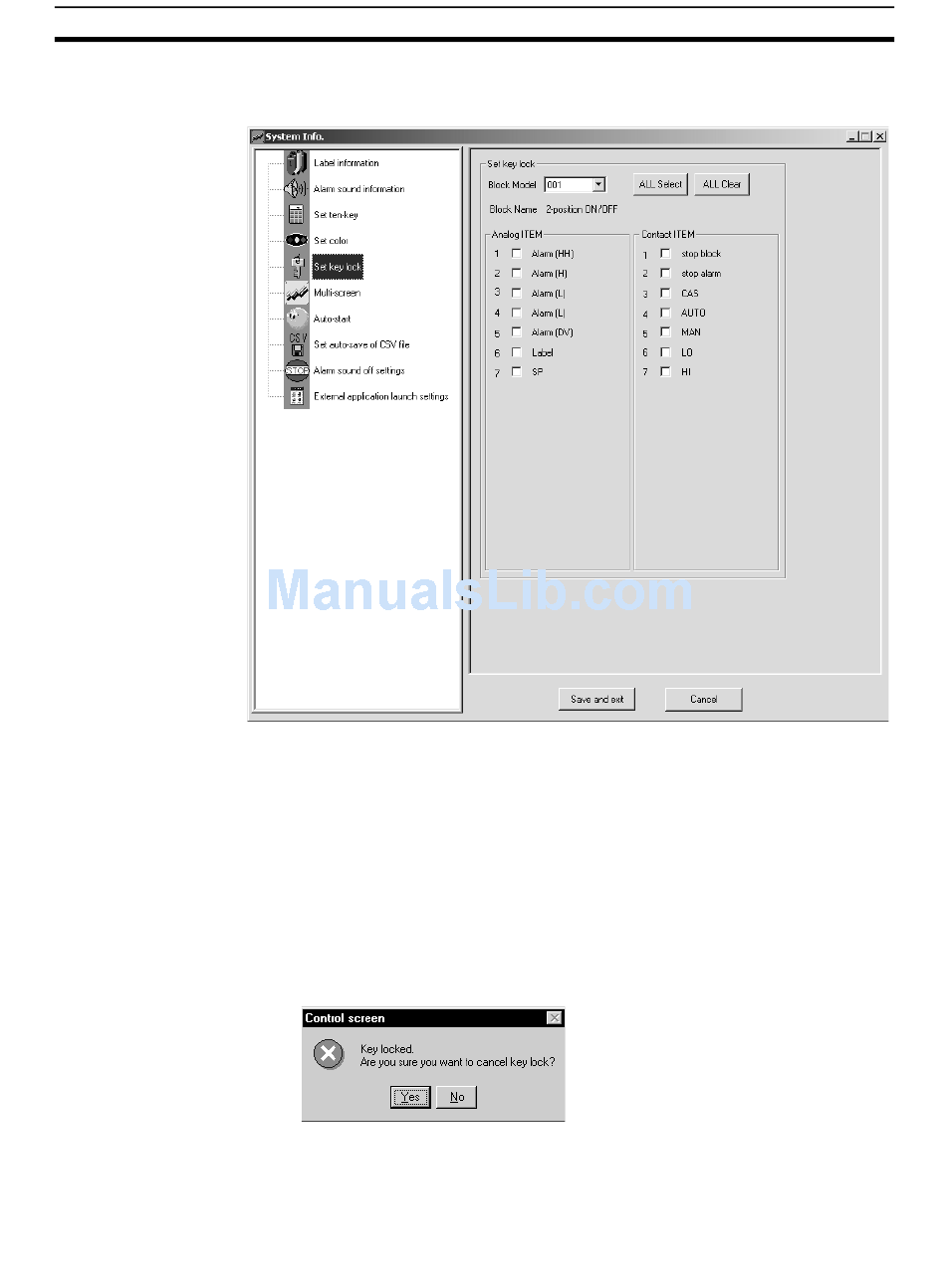

1. Select Block Model. The Function Blocks will be displayed below it.
2. To set key locks for all the analog and contact ITEMs of the Function Blocks
of the specified Block Model that can usually be changed using CX-Pro-
cess Monitor Plus, click the All Select Button. Similarly, to clear the key
locks for all of the ITEMs, click the All Clear Button.
To set key locks for specific ITEMs, click in the check box of the required
ITEMs in either the analog ITEM or Contact ITEM fields.
3. Click the Save and exit Button to enable the key lock settings.
1. If an attempt to change the value of an ITEM (e.g., SP) for which key lock
has been set (e.g., by pressing the SP Button), the following dialog box will
be displayed.
2. If Yes is clicked, the following dialog box, requesting entry of a password,
will be displayed. (If No is clicked, the operation to change the ITEM will be
cancelled.)
Section 5-6
211
