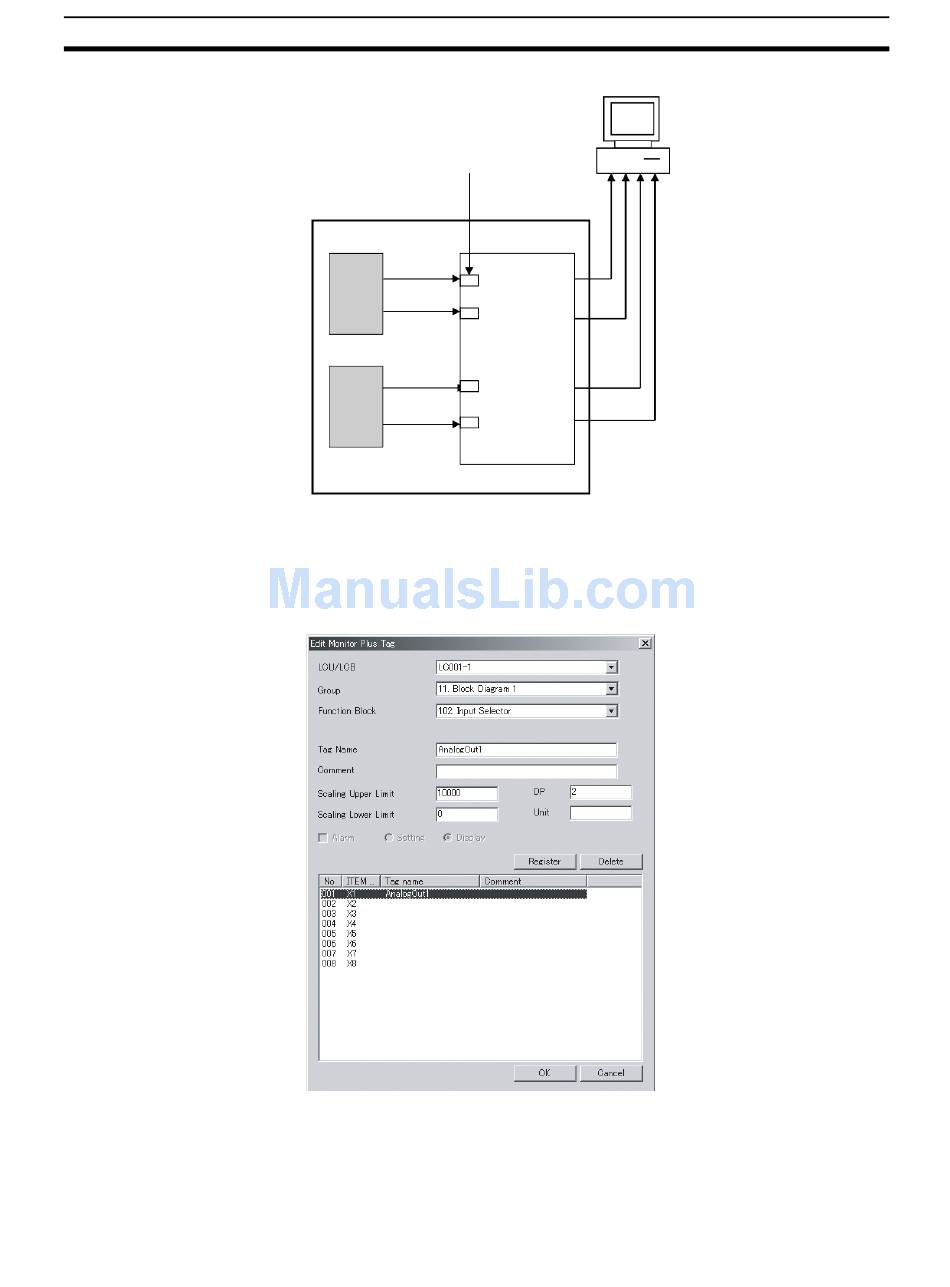

Data Exchange Method
1,2,3...
Set tags for Monitor
Plus in each analog
input.
Loop Control
Unit or Board
Function
Analog
block
Analog
Function
Analog
block
Analog
1. Input (connect) the analog inputs to the Input Selector (Block Model 162)
from the function block's contact input ITEMs containing analog values that
you want to monitor.
2. Set the tags for Monitor Plus in the Input Selector (Block Model 162). Set
a tag name for each ITEM (X1 to X8).
3. Use Monitor Plus to specify the Input Selector's tags for Monitor Plus and
read the data from each ITEM (X1 to X8).
4. Use the Contact Distributor (Block Model 201) to write each internal
switch's bit data to the specified function block's bits.
5. In the end, the analog values are monitored.
Monitor Plus
Specify the tags
for Monitor Plus
Input Selector
and read.
(Block Model 162)
Section 3-1
