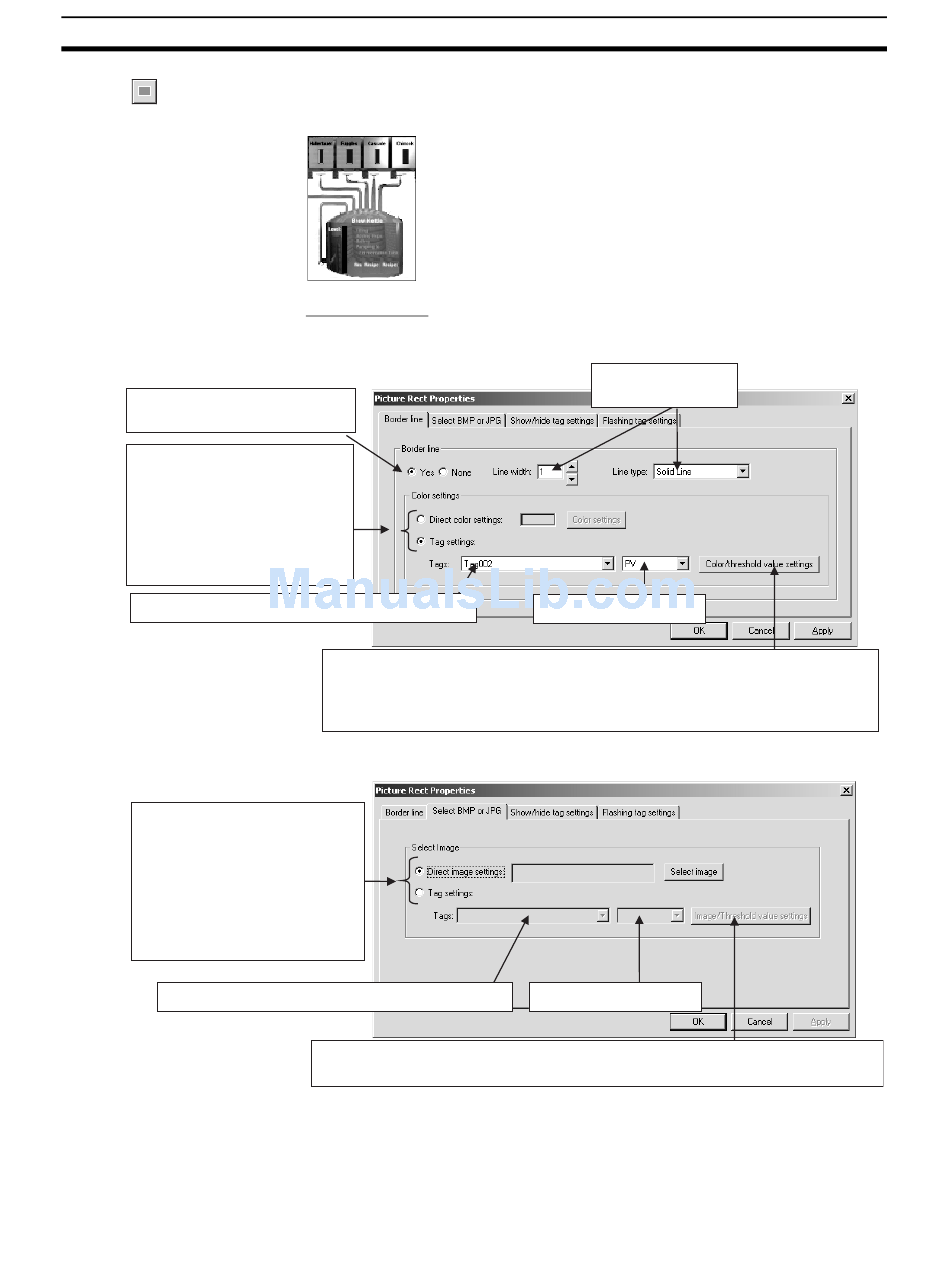

Creating Graphic Screens
Images ( )
Select whether a border line is to be
placed around the image.
Select the method for displaying the
text string.
Direct color settings:
The border line color is fixed.
The color is directly specified in
the Color settings.
Tag settings:
The border line color is changed
according to the tag value.
Select the tag name for controlling the border line color.
Select the method for displaying the
text string.
Direct image settings
Displays one image file only.
The image file is directly specified
in the Image selection.
Tag settings:
The image file displayed is
changed according to the tag
value.
Select the tag name for controlling the image file display.
170
Image files in BMP (bit map) or JPG format can be displayed as graphic
images.
Setting Method
Border Line Tab
Set the condition for the border line color to be displayed.
The screen displayed will depend on the tag type (contact ITEM or analog ITEM).
The settings for the threshold values are the same as for the Border Line Tab. Refer to
the description for the Border Line Tab above.
Select BMP or JPG Tab
Set the condition for multiple image files to be displayed.
The screen displayed will depend on the tag type (contact ITEM or analog ITEM). (See note.)
Set the border line
width and type.
Select the tag ITEM.
Select the tag ITEM.
Section 5-4
