Data Exchange Method
Monitoring Analog
Signals from Monitor Plus
56

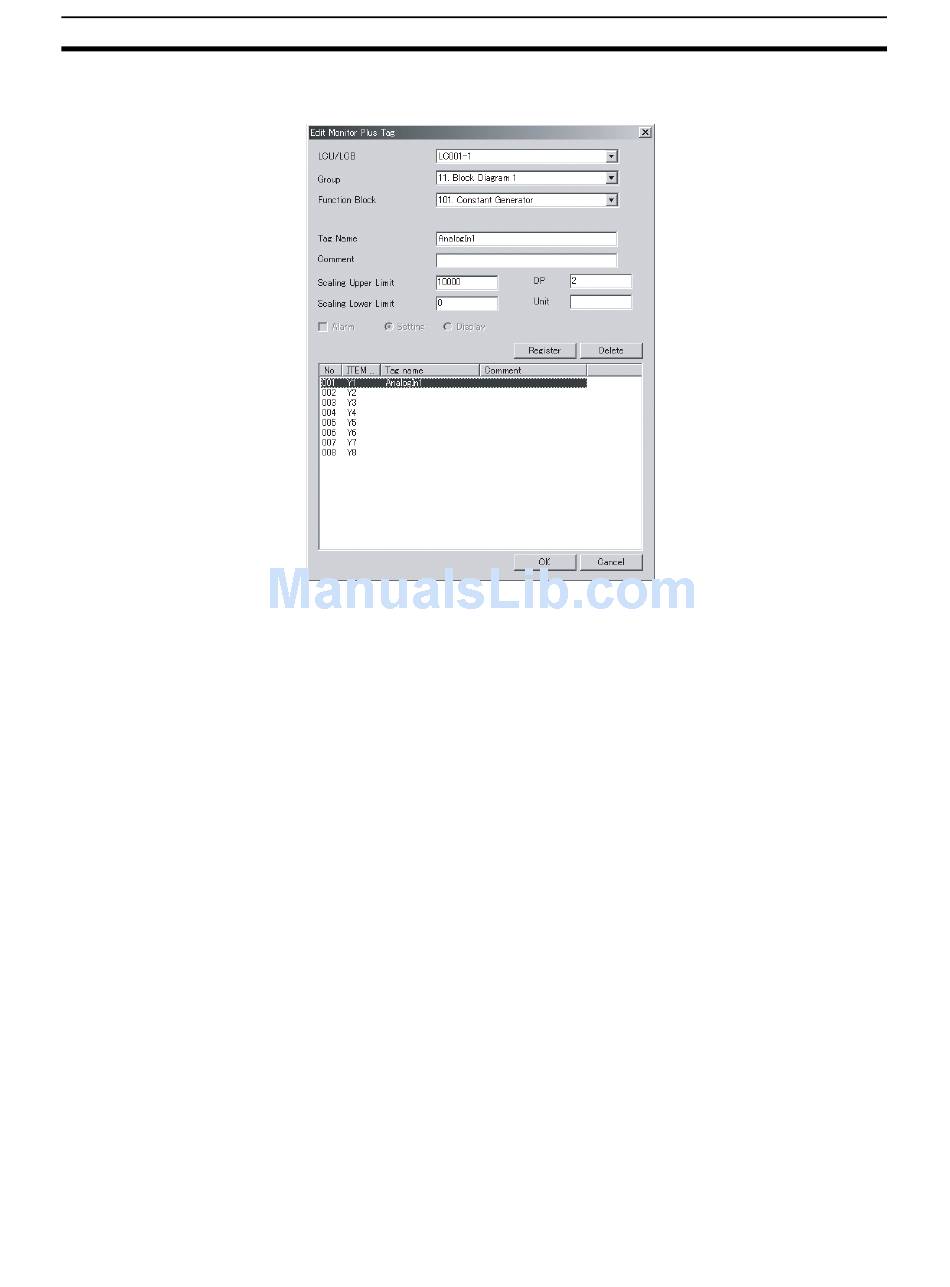

2. Set the tags for Monitor Plus in the Constant Generator (Block Model 166).
Set a tag name for each ITEM (Y1 to Y8).
3. Use Monitor Plus to specify the Constant Generator's tags for Monitor Plus
and write the data to each ITEM (Y1 to Y8).
4. Use the Contact Distributor (Block Model 201) to write each internal
switch's bit data to the specified function block's bits.
5. In the end, the analog values are set in the function block's contact input
ITEM.
Write data through the tags for Monitor Plus set in the Input Selector block
(Block Model 162) from Monitor Plus. By reading the analog values that are
input to the Input Selector, it is possible to monitor the analog values in the
function blocks.
