Control Screens

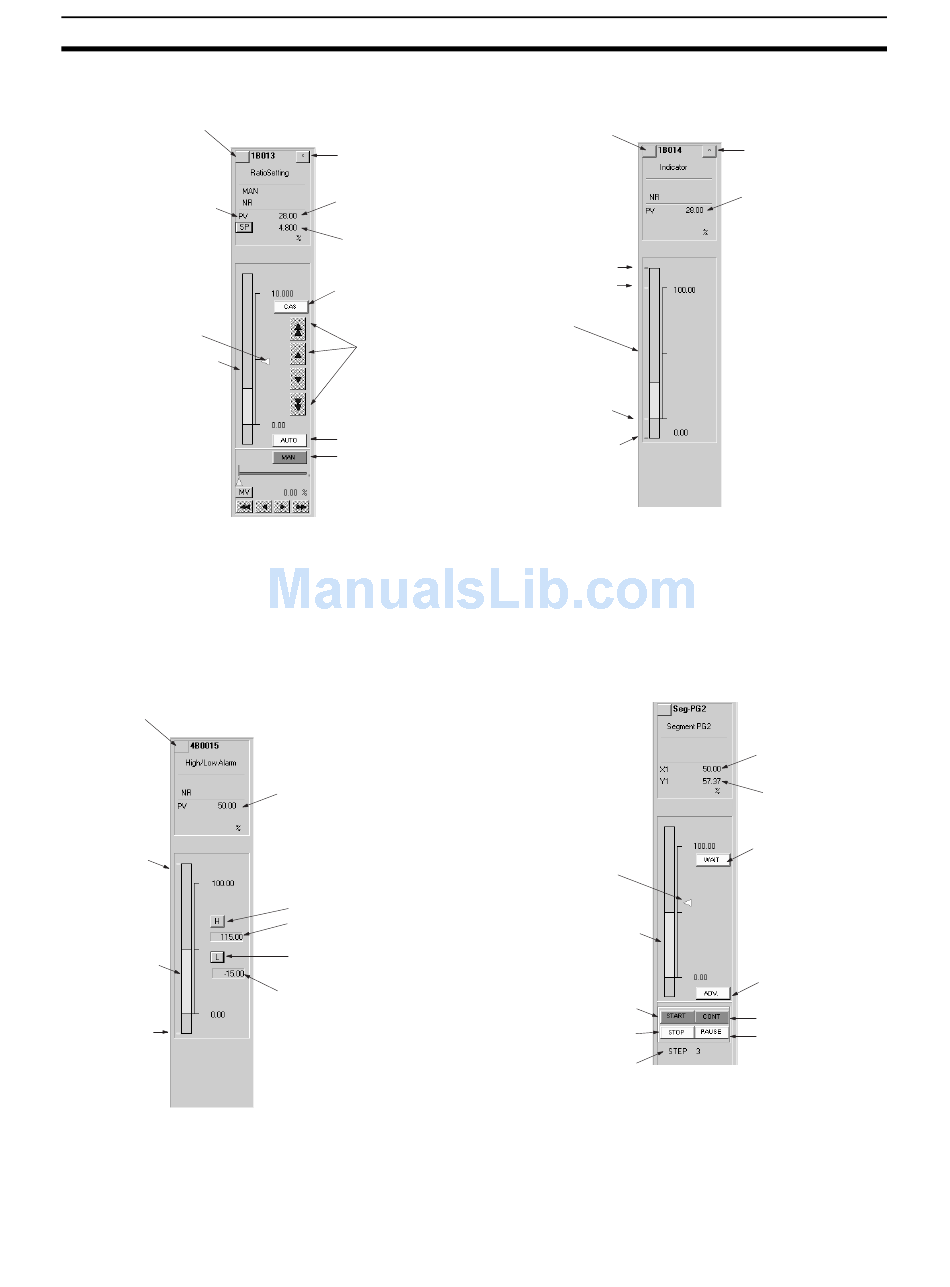

Ratio Setting (033)
Click this button to move to the Tuning screen.
See 4-8 Tuning Screens for details.
SP (Ratio)
Change Button
SP (ratio)
position
display
PV bar display
PV Bar Display
Displays the PV range from upper to lower limit as a bar.
Green: Status normal
Red: PV Alarm (either HH, H, L, LL)
Blue: Alarm OFF
Light blue: Function block calculations stopped
High/Low Alarm (111)
Click this button to move to the Tuning screen.
See 4-8 Tuning Screens for details.
H (High Alarm)
PV bar display
L (Low Alarm)
PV Bar Display
Displays the PV range from upper to lower limit as a bar.
Green: Status normal
Red: Alarm
Light blue: Function block calculations stopped
86
Click this button to display
the Set Label Dialog Box.
PV numerical
value display
SP (ratio) numerical
value display
Switch to
Remote Button
Up/Down Buttons to
change SP (ratio)
Switch to AUTO Button
Switch to MAN Button
PV numerical value display
H (High Alarm)
Setting Button
H (High Alarm)
set value
L (Low Alarm)
Setting Button
L (Low Alarm) set value
Indicator (034)
Click this button to move to the Tuning screen.
See 4-8 Tuning Screens for details.
HH (High/High Alarm)
H (High Alarm)
PV bar display
L (Low Alarm)
LL (Low/Low Alarm)
PV Bar Display
Displays the PV range from upper to lower limit as a bar.
Green: Status normal
Red: PV Alarm (either HH, H, L, LL)
Blue: Alarm OFF
Light blue: Function block calculations stopped
Segment Program 2 (157)
Position of program
output value display
Bar display for
reference input
value
Run Command/
Display Button
Stop Command/
Display Button
Step number
executing
Section 4-7
Click this button to
display the Set Label
Dialog Box.
PV numerical
value display
Reference input
value display
Program output
numerical value
Move to Next Wait
Command Button
(Red during WAIT)
Move to Next Step
Command Button
Time Axis Hold
Cancel Button
Time Axis Hold Button
