System Information Settings
Note
5-6-8

Auto-start

Note
Pull-down Menu

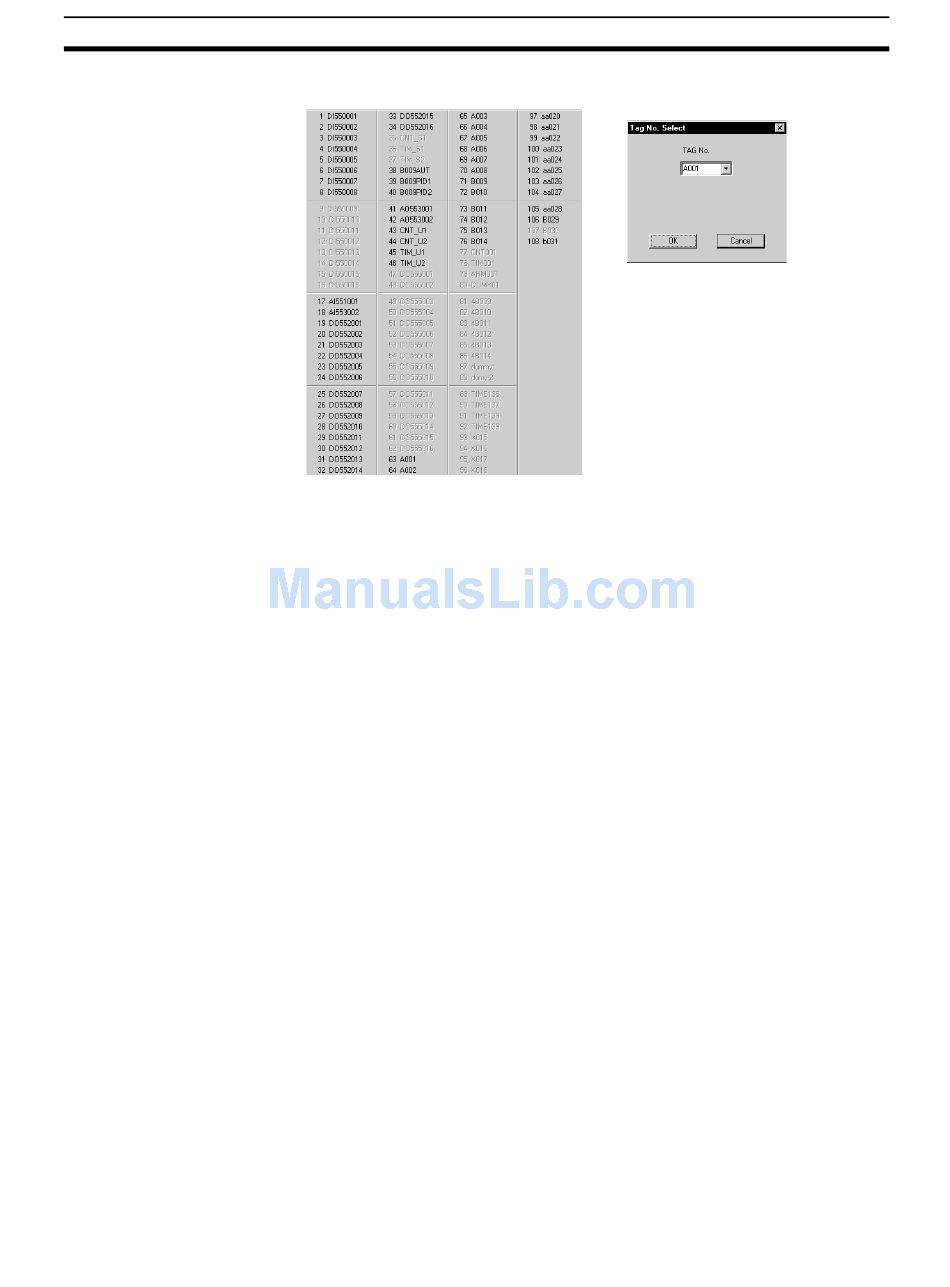

If the number of tags registered in the Control Screen exceeds 192, the Dialog
Box will be displayed, even if the Pull-down menu is specified.
Specify whether to open a specified screen when the CX-Process Monitor
Plus is started or to start normally. If the auto-start is enabled, the screen
specified in the fields below will be displayed automatically when the CX-Pro-
cess Monitor Plus is started from the menus. (This eliminates the need to click
the Run Button on the Main Window.)
CRT-ID
Set the type of screen. 1: Overview, 2: Control, 3: Trend, 4: Graphic, 5: Annun-
ciator, 10: Tuning, 17: Batch Trend, 18: Segment.
Group Number
The group number specifies the order of registration by the CRT Builder (0 to
400).
Position
Specify the position on the function block diagram between 1 and 8. This set-
ting is valid only for Tuning Screens.
Disabling Auto-start
The auto-start setting can be disabled by either of the following two methods.
• Double-click the MonitorCom.exe file from your Explorer to open the Sys-
tem Information settings and disable auto-starting under the Auto-start
settings.
• Click the right mouse button at the top of an Overview Display and then
click the Yes Button on the dialog box that will appear to open the System
Information settings. Disable auto-starting under the Auto-start settings
The CRT-ID, group number, and position can be confirmed by clicking at the
top of a screen as shown below.
Section 5-6
Dialog Box
215
