Basic Configuration Operations

5-2

Basic Configuration Operations

5-2-1

Starting and Stopping the CX-Process Monitor Plus

Starting
1,2,3...
!WARNING
1. Select Programs, Omron, CX-Process Monitor Plus, and CX-Process
Monitor Plus from the Windows Start Menu.

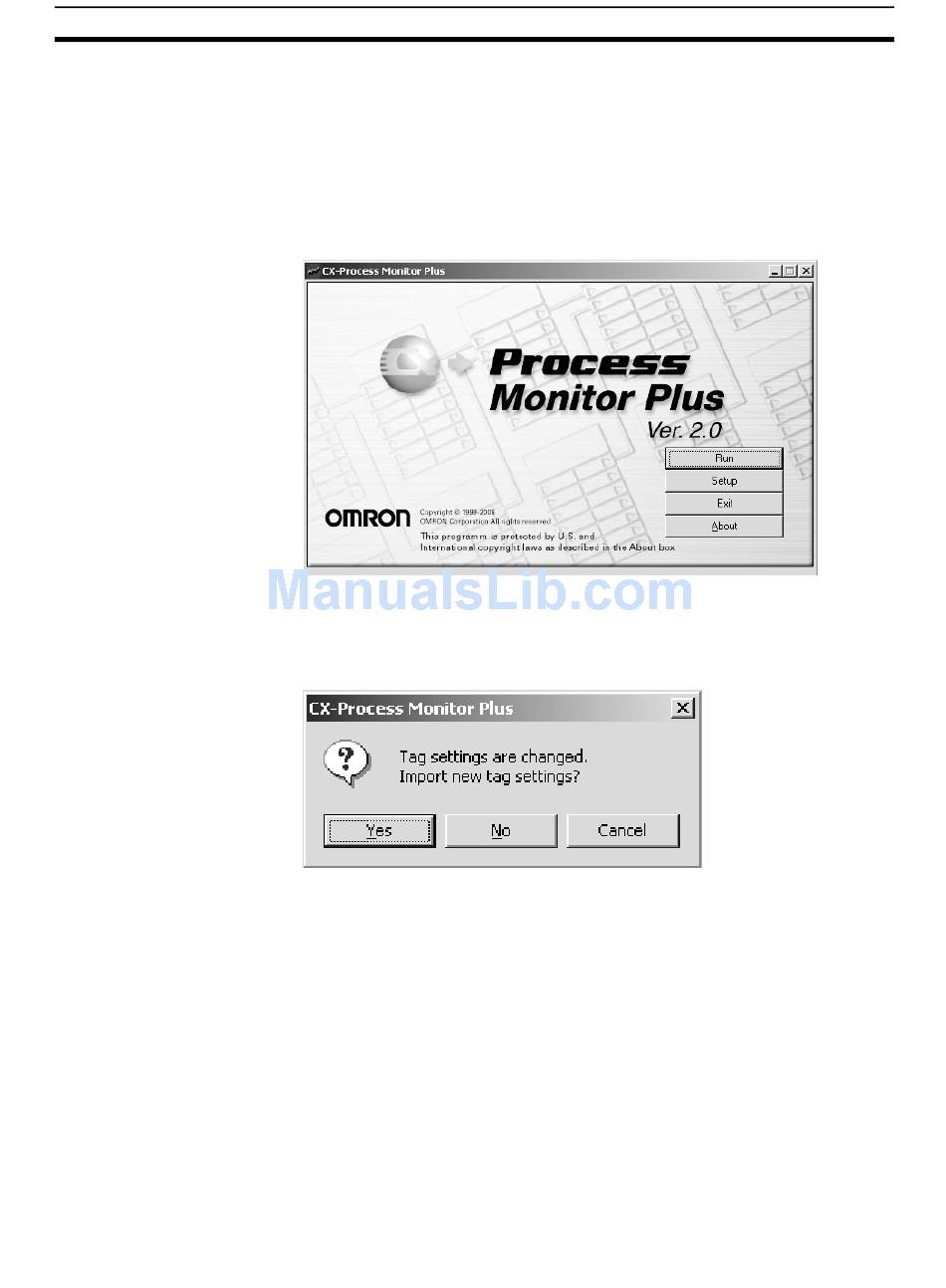

The CX-Process Monitor Plus Main Window will be displayed.
2. Click the Setup Button.
3. If the tag or network information has been changed, the following dialog
box will be displayed. Click the Yes Button to create a monitor tag file from
the CX-Process Monitor Plus tag file.
If the CX-Process Monitor Plus tag settings or network configuration have
been changed, set the CX-Process Monitor Plus screen configuration cor-
rectly according to the new settings.
Failure to correctly update the settings may result in unexpected operation by
the machinery.
Section 5-2
141
