CX-Process Monitor Plus
1,2,3...
Compile the Tag File for
the CX-Process Monitor
Plus.
Note
Download Function Block
Data to the Loop Control
Unit/Board.
Compile the Monitor Tag
Files.
Loop Control Boards
1. Make the settings for the HMI in the System Common block (Block Model
000).
2. Set tags as follows:
• Function block data: Set CSV tags.
• Individual contact signals: Set tags for Monitor Plus for the contacts in the
Internal Switch block (Block Model 209).
• Individual analog signals from LCU to computer: Set tags for Monitor Plus
for the analog signals in the Input Selection block (Block Model 162).
• Individual analog signals from computer to LCU: Set tags for Monitor Plus
for the analog signals in the Constant Generator block (Block Model 166).
Note For both the Loop Control Unit and Loop Control Board, the follow-
ing function blocks must be created and connected separately to
enable monitoring and setting individual contact signals and indi-
vidual analog signals (i.e., other than function block data).
• To monitor and set individual contact signals, contact signals must be
input/output using the Contact Distributor block (Block Model 201) and
Internal Switch block (Block Model 209).
• To monitor individual analog signals, analog signals must be output
from the Input Selection block (Block Model 162).
• To set individual analog signals, analog signals must be input to the
Constant Generator block (Block Model 166).
The tag file for Monitor Plus must be compiled (Execute – Create Tag File –
Monitor Plus Tag).

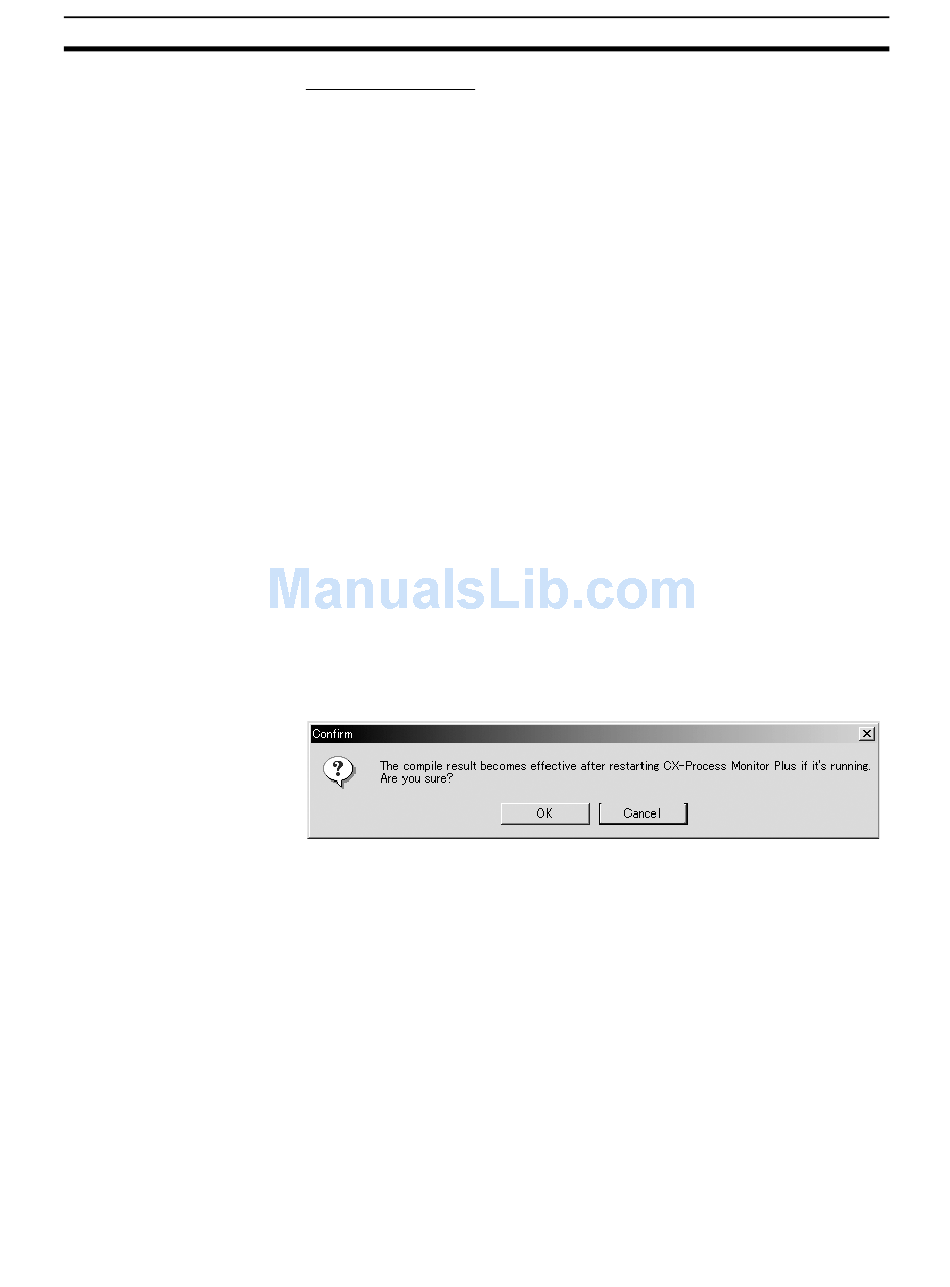

The following dialog box will be displayed if a tag file for Monitor Plus is output
while the CX-Process Monitor Plus is running.
Tag information will not be updated if a tag file for Monitor Plus is output dur-
ing CX-Process Monitor Plus operation. To update the tag file, restart the CX-
Process Monitor Plus.
Download the function blocks.
Start the CX-Process Monitor Plus. In the Main Window, click the Run Button
or the Setup Button. The monitor tag files (mtagmst and mtagsubmst) will be
automatically generated based on the tag file for Monitor Plus (monitor.csv).
