Segment Program 2 Screens
When Continue previous segment
trend when restarted is selected.
(See note 1.)
When Continue previous segment
trend when restarted is not selected.
Referencing Past
Segment Data

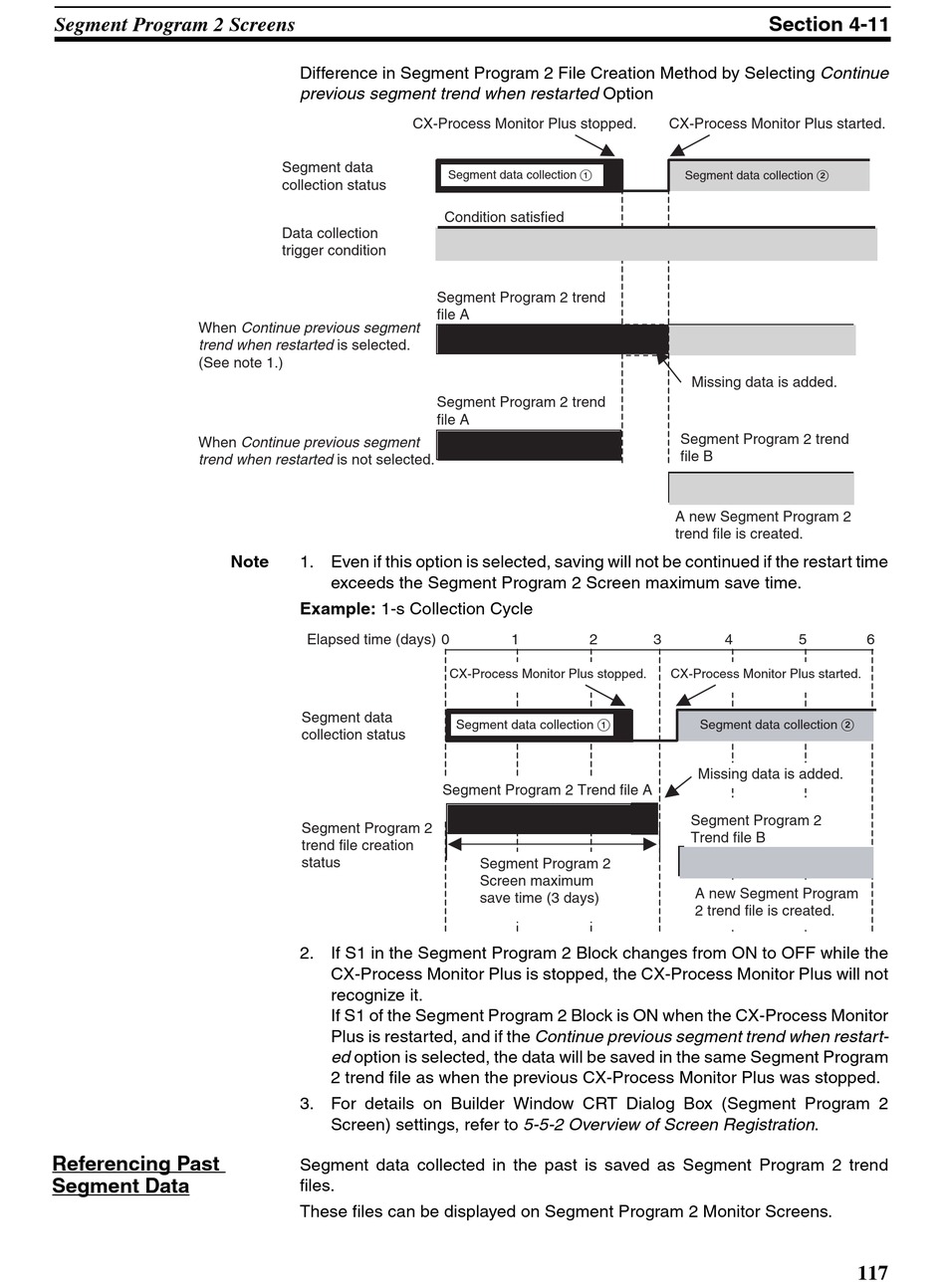

Difference in Segment Program 2 File Creation Method by Selecting Continue
previous segment trend when restarted Option
Segment data
collection status
Data collection
trigger condition
Note 1. Even if this option is selected, saving will not be continued if the restart time
exceeds the Segment Program 2 Screen maximum save time.
Example: 1-s Collection Cycle
Elapsed time (days) 0
Segment data
collection status
Segment Program 2
trend file creation
status
2. If S1 in the Segment Program 2 Block changes from ON to OFF while the
CX-Process Monitor Plus is stopped, the CX-Process Monitor Plus will not
recognize it.
If S1 of the Segment Program 2 Block is ON when the CX-Process Monitor
Plus is restarted, and if the Continue previous segment trend when restart-
ed option is selected, the data will be saved in the same Segment Program
2 trend file as when the previous CX-Process Monitor Plus was stopped.
3. For details on Builder Window CRT Dialog Box (Segment Program 2
Screen) settings, refer to 5-5-2 Overview of Screen Registration.
Segment data collected in the past is saved as Segment Program 2 trend
files.
These files can be displayed on Segment Program 2 Monitor Screens.
CX-Process Monitor Plus stopped.
Segment data collection A
Condition satisfied
Segment Program 2 trend
file A
Segment Program 2 trend
file A
1 2
CX-Process Monitor Plus stopped.
Segment data collection A
Segment Program 2 Trend file A
Segment Program 2
Screen maximum
save time (3 days)
Section 4-11
CX-Process Monitor Plus started.
Segment data collection B
Missing data is added.
Segment Program 2 trend
file B
A new Segment Program 2
trend file is created.
3 4 5
CX-Process Monitor Plus started.
Segment data collection B
Missing data is added.
Segment Program 2
Trend file B
A new Segment Program
2 trend file is created.
6
