Screen Configuration
5-5-5

Saving Settings

Note
1,2,3...
5-5-6

Deleting Registered Screens

1,2,3...
5-5-7

Starting the Monitor Process

1,2,3...
Save the screen configurations that you have set.
If setting or changing screen configurations, make sure to save the settings or
changes.

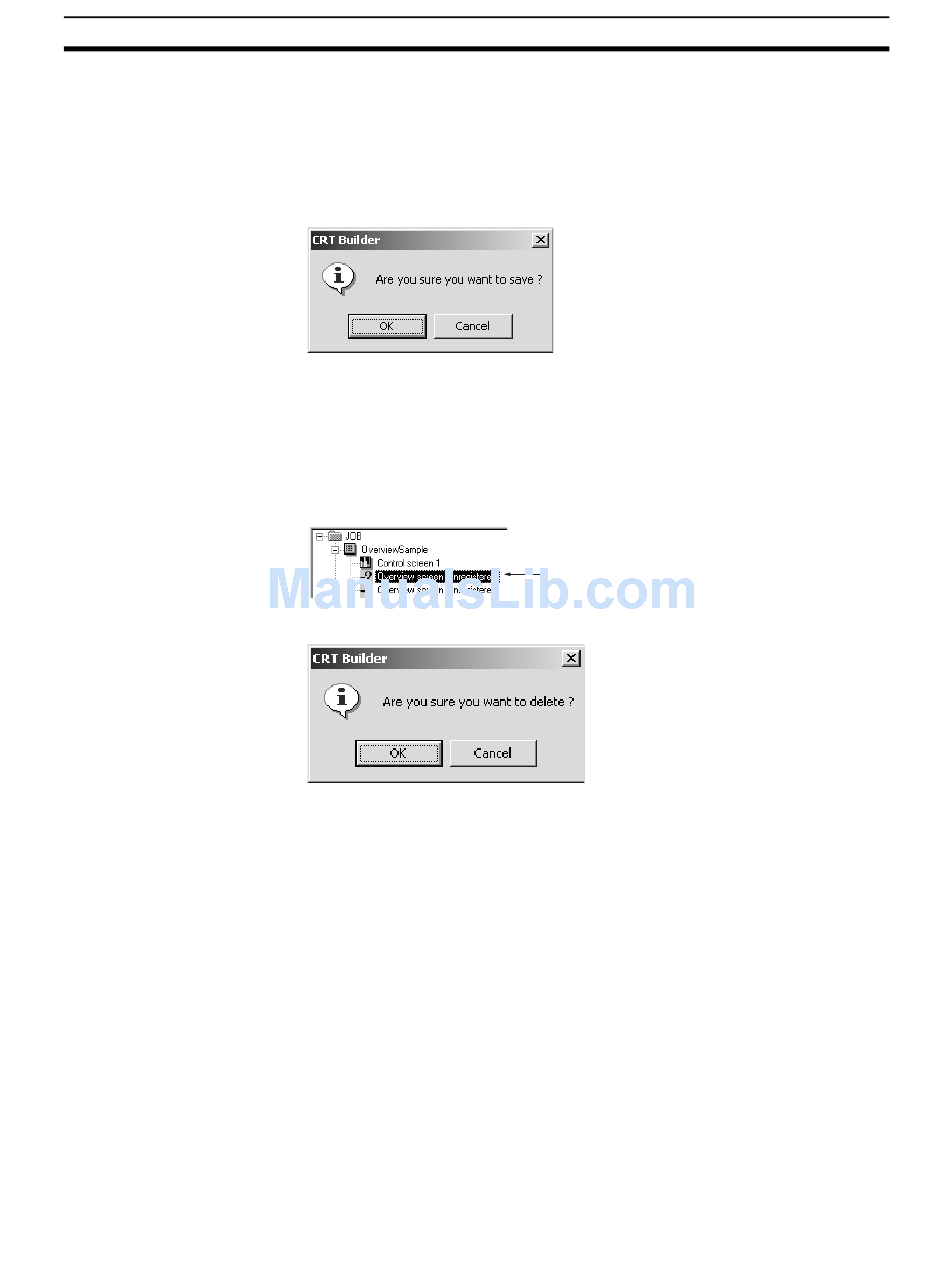

1. From the Settings Menu in the CRT Builder, select Save.
2. Click the OK Button.
To delete registered screens, perform the following operation.
1. In the CRT Builder's Screen Management Tree, click to select the screen
you want to delete.
2. From the CRT Builder Settings Menu, select Delete.
3. Click the OK Button.
To start the monitor process, perform the following operation.
1. In the Main Window or in the Setup Dialog Box, click the Run Button.
2. The monitor process will start and the Overview Screen will be displayed.
Click to select. Double-click to
omit Step 2 of the operation.
Section 5-5
