Screen Configuration
Automatic Allocation Function for Alarm Tags
Internal Switch Blocks
1,2,3...
202
Detailed Settings

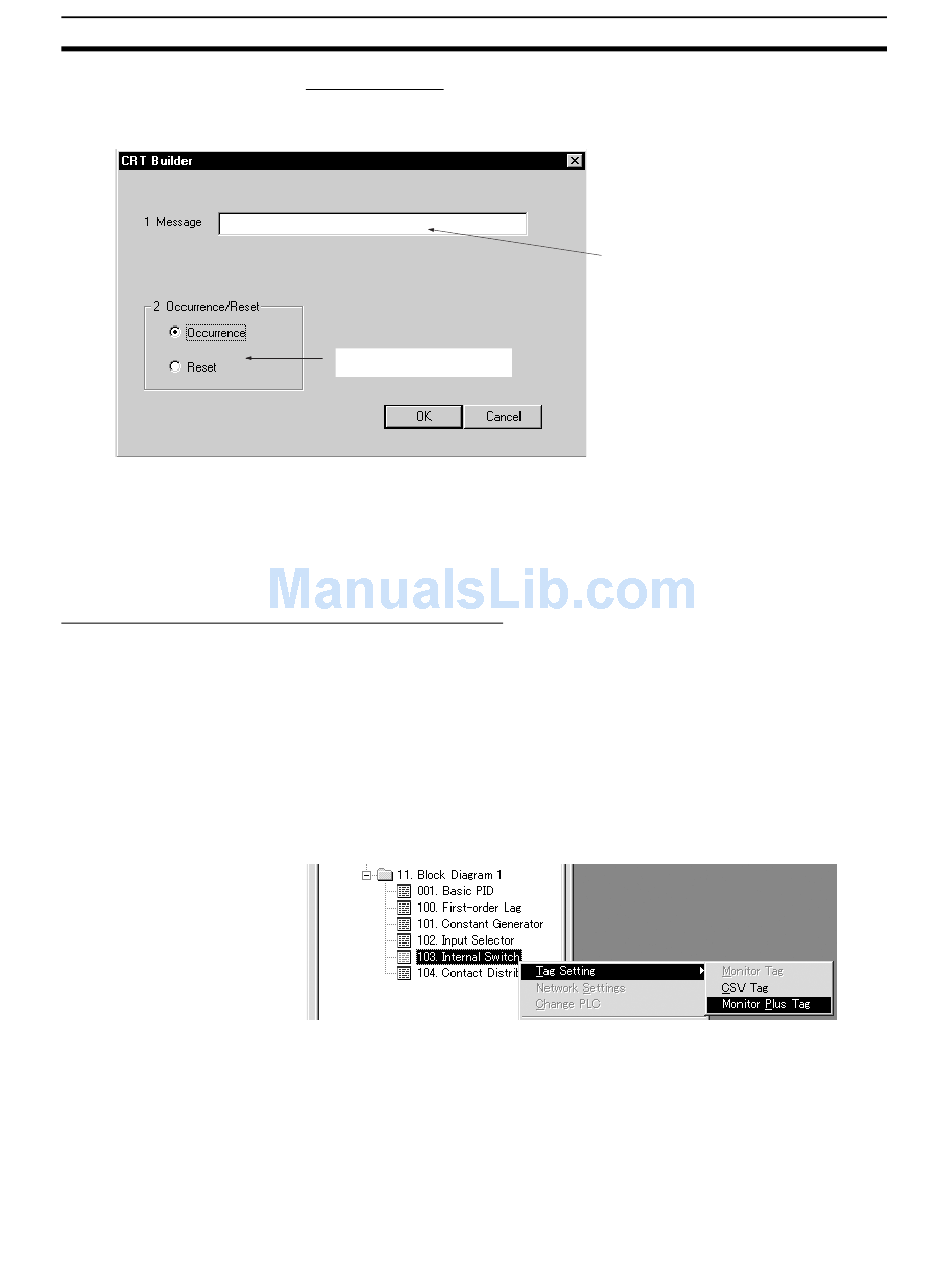

Select the tag name, and then click the Details Button. The following dialog
box will be displayed.
Set the timing to display the
messages
After making the settings, click the OK Button.
Display is red for an occurrence, and black following recovery.
3. Complete the above settings, and then click the OK Button.
The alarm message will be registered, and the name of the screen you en-
tered will be displayed in the Screen Management Tree.
Tags specified with the CX-Process Tool can be set as alarm tags. Alarm tags
can be displayed in the Alarm History Screens. The following tags can be set
as alarm tags.
• Tags for Monitor Plus for Internal Switch blocks
• Data in the User Link Table when the analog/digital type is set to a contact
Use to the following procedure to set alarm tags.
1. Select Internal Switch as the function block and select Monitor Plus tags
from the tag setting menu.
Section 5-5
Enter the alarm message. You can enter up
to 94 characters.
